Tractor · 1962Unverified

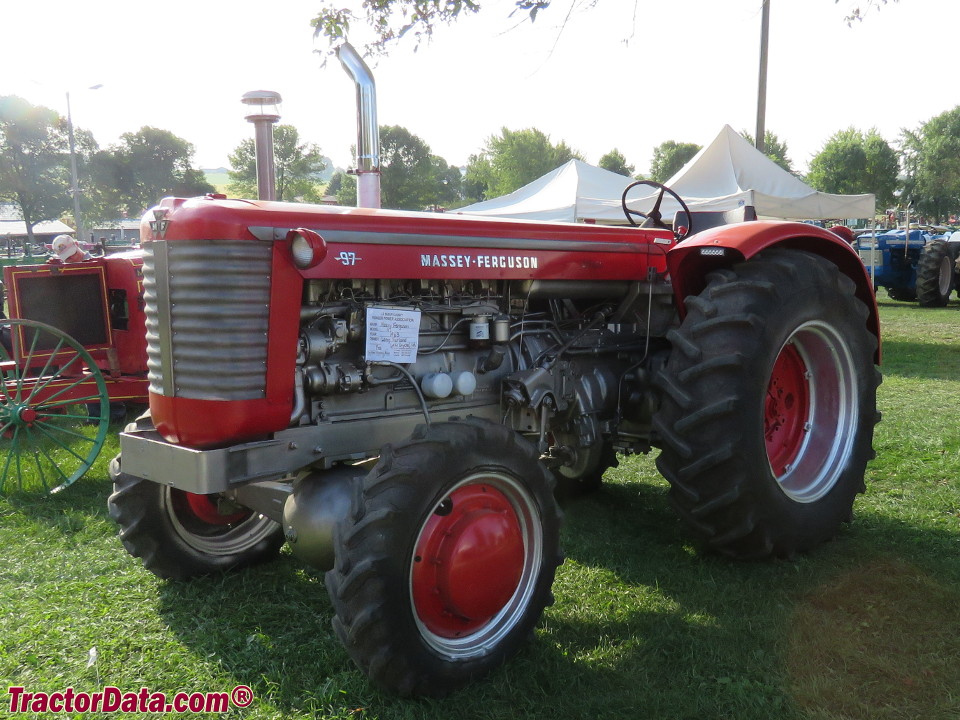

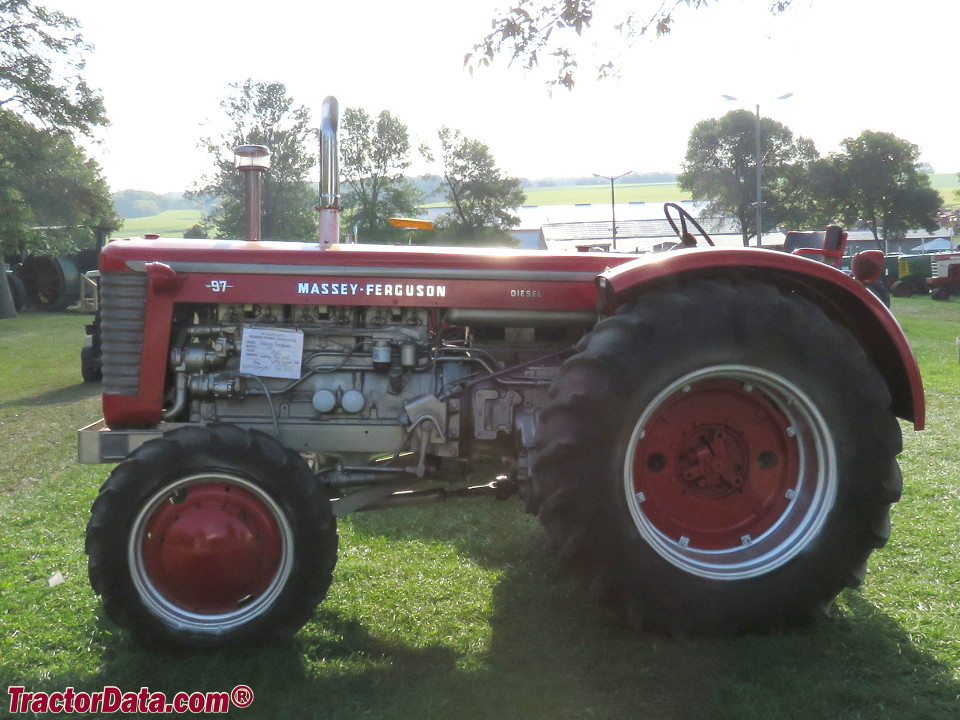

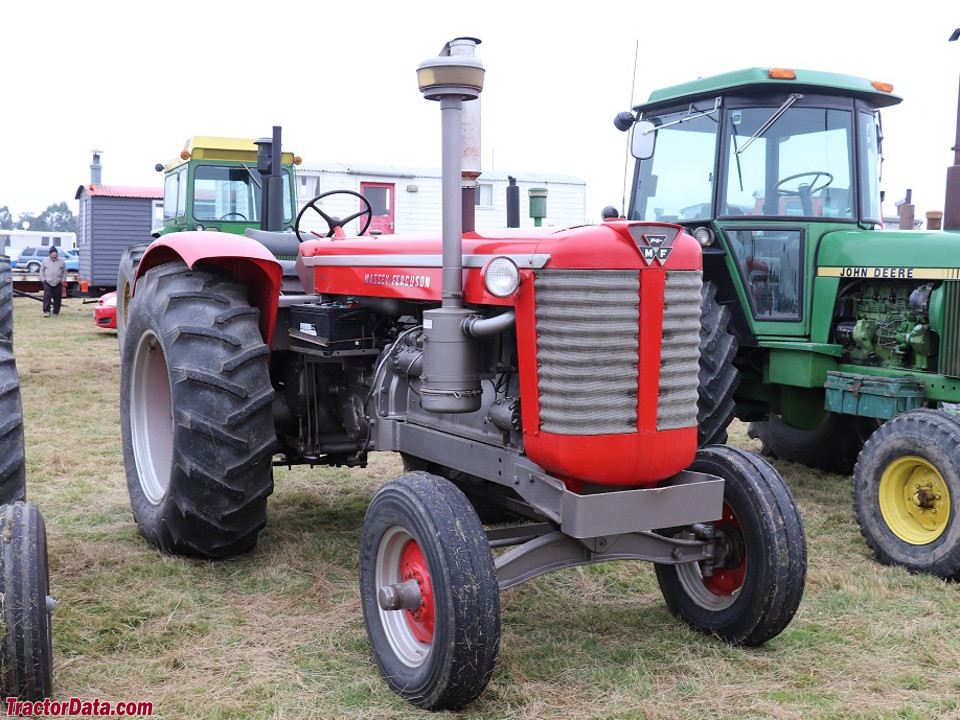

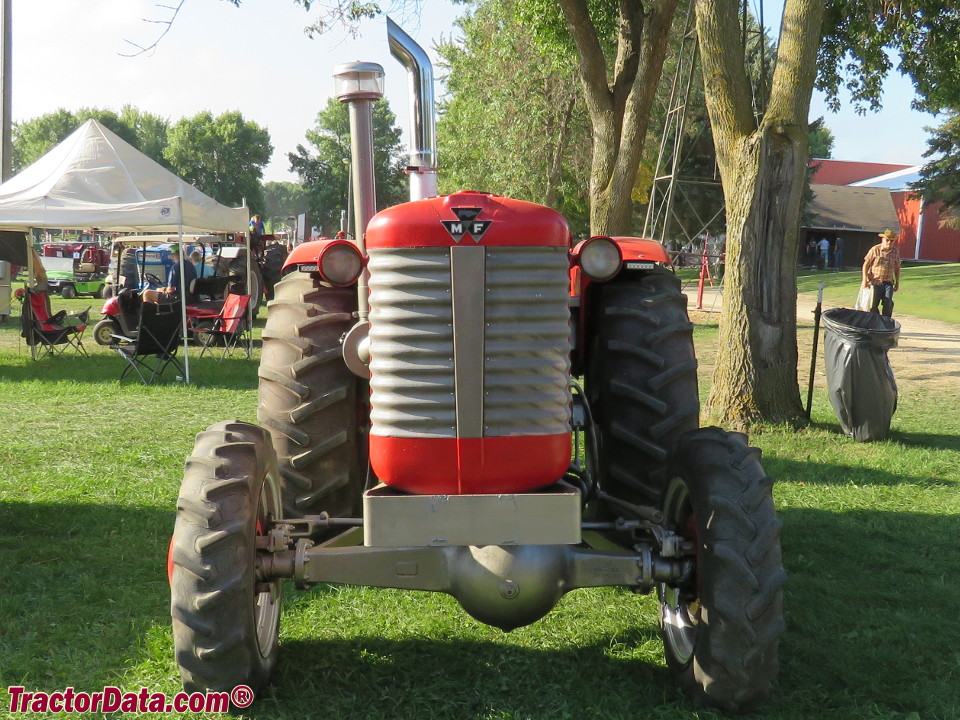

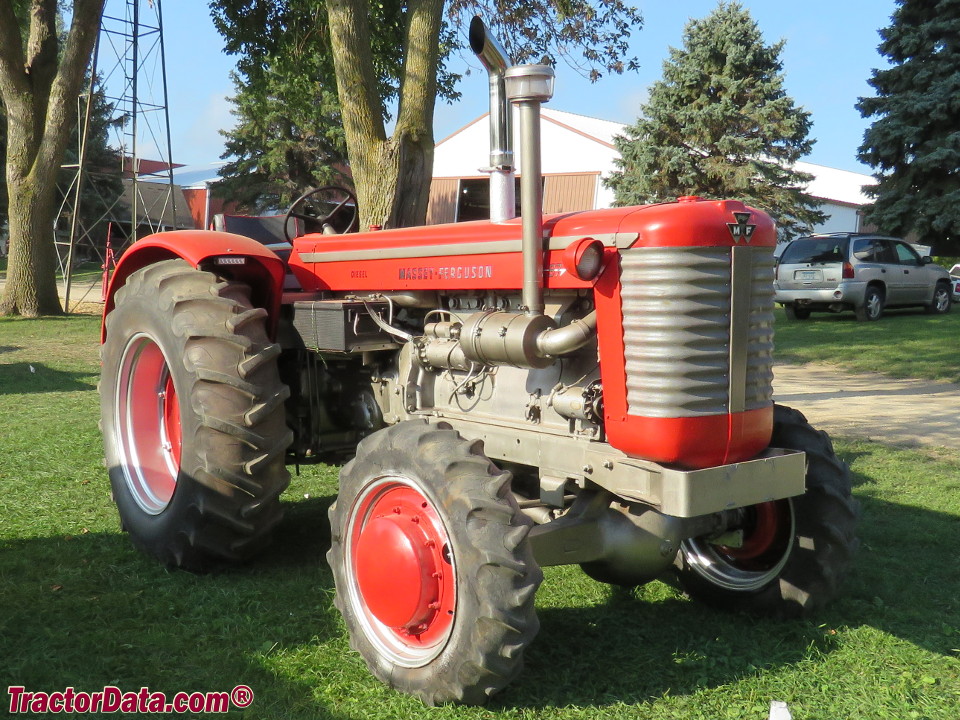

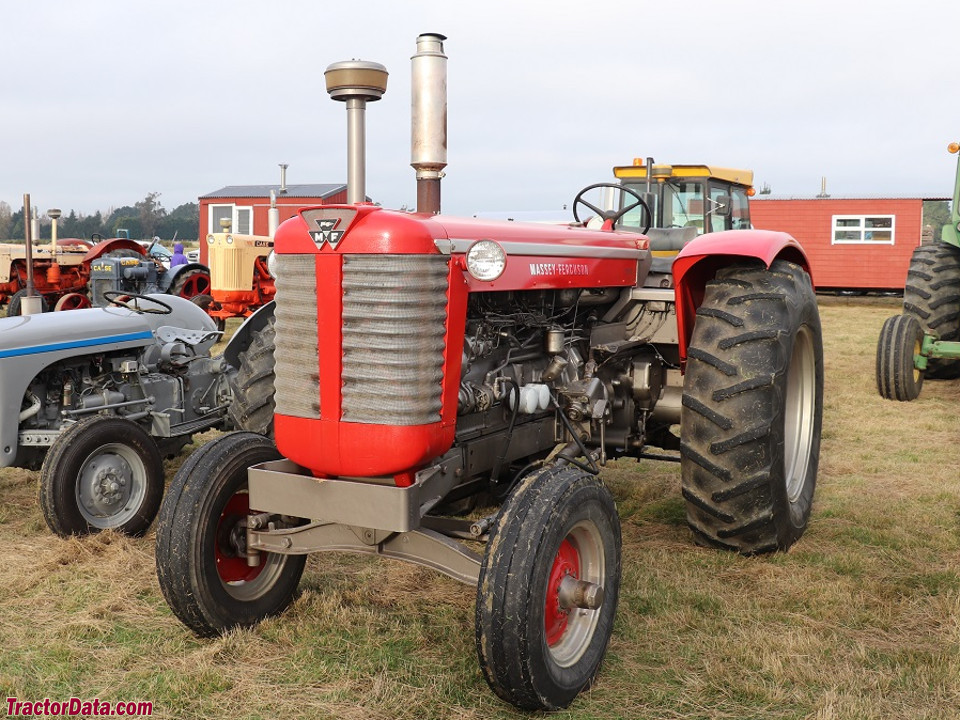

Massey Ferguson 97
Massey Ferguson 97 — Standard-tread tractor · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Weight
3699 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerMinneapolis-MolineReference
Standard-tread tractorReference
Original price was $6943 in 1964Reference
Two- or four-wheel driveReference
Final drivesbull gearReference
Power steeringReference
Disc brakesReference

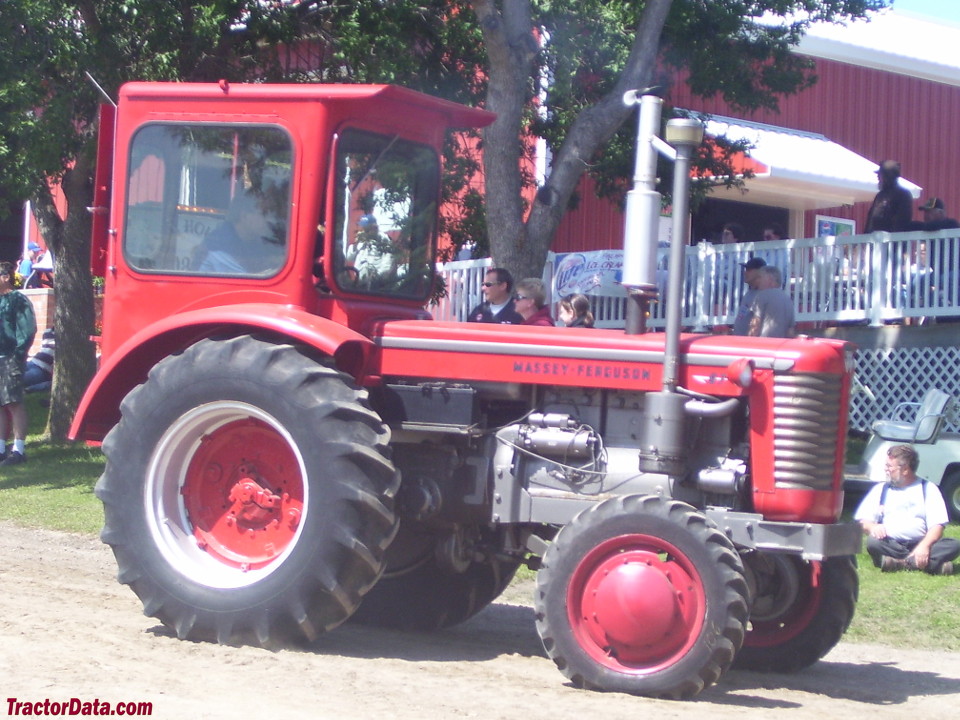

Cab optional.Reference
Variants
G705similar Minneapolis-Moline modelReference
G706similar Minneapolis-Moline modelReference
Engine
Minneapolis-Moline 8.3L 6-cyl dieselReference
Minneapolis-Moline 8.3L 6-cyl LP gasReference
Fuel tank143.8 LReference
Engine83.5 kWReference
Plows7Reference
Minneapolis-MolineReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Power80.5 kWReference
Air cleaneroil bathReference
Compression14.8:1Reference
Rated RPM1600Reference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity47.3 LReference
LP gasReference
Power83.5 kWReference
Compression8.0:1Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutch289mm dry discReference
PTO & Hydraulics
PTO (claimed)75.3 kWReference
Typeopen centerReference
Pressure69.0 barReference
Valves2Reference
Pump flow56.8 lpmReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1200Reference
Dimensions
2WD Wheelbase244 cmReference
4WD Wheelbase214 cmReference
Weight3699 kgReference
Front tire9.5-24Reference
Rear tire18.4-34Reference
Ag front9.5-24Reference
Ag rear18.4-34Reference
Ag front11.2-24Reference
Ag rear23.1-26Reference
Length382 cmReference
Width208 cmReference
Height (steering wheel)201 cmReference
Height (exhaust)271 cmReference
Operating weight3699 kgReference
Clearance (front axle)25 cmReference
Clearance (rear axle)66 cmReference
Clearance (drawbar)38 cmReference
Front tread173 cmReference
Rear tread163 to 164 cmReference
97 Serial Number Location
Serial number plate on the right side of the transmission housing, under the battery tray.Reference
97 Serial Numbers
196225200001 (diesel)Reference
196325200506 (diesel)Reference
196425202005 (diesel)Reference
196525203504 (diesel)Reference
196225300001 (LP-gas)Reference
196325300096 (LP-gas)Reference
196425300397 (LP-gas)Reference
196525300399 (LP-gas)Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
