Tractor · 2024Unverified

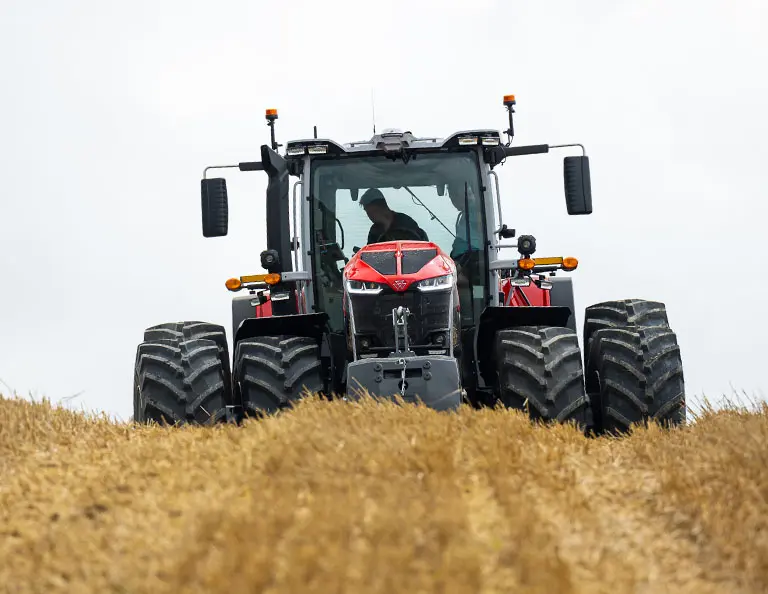

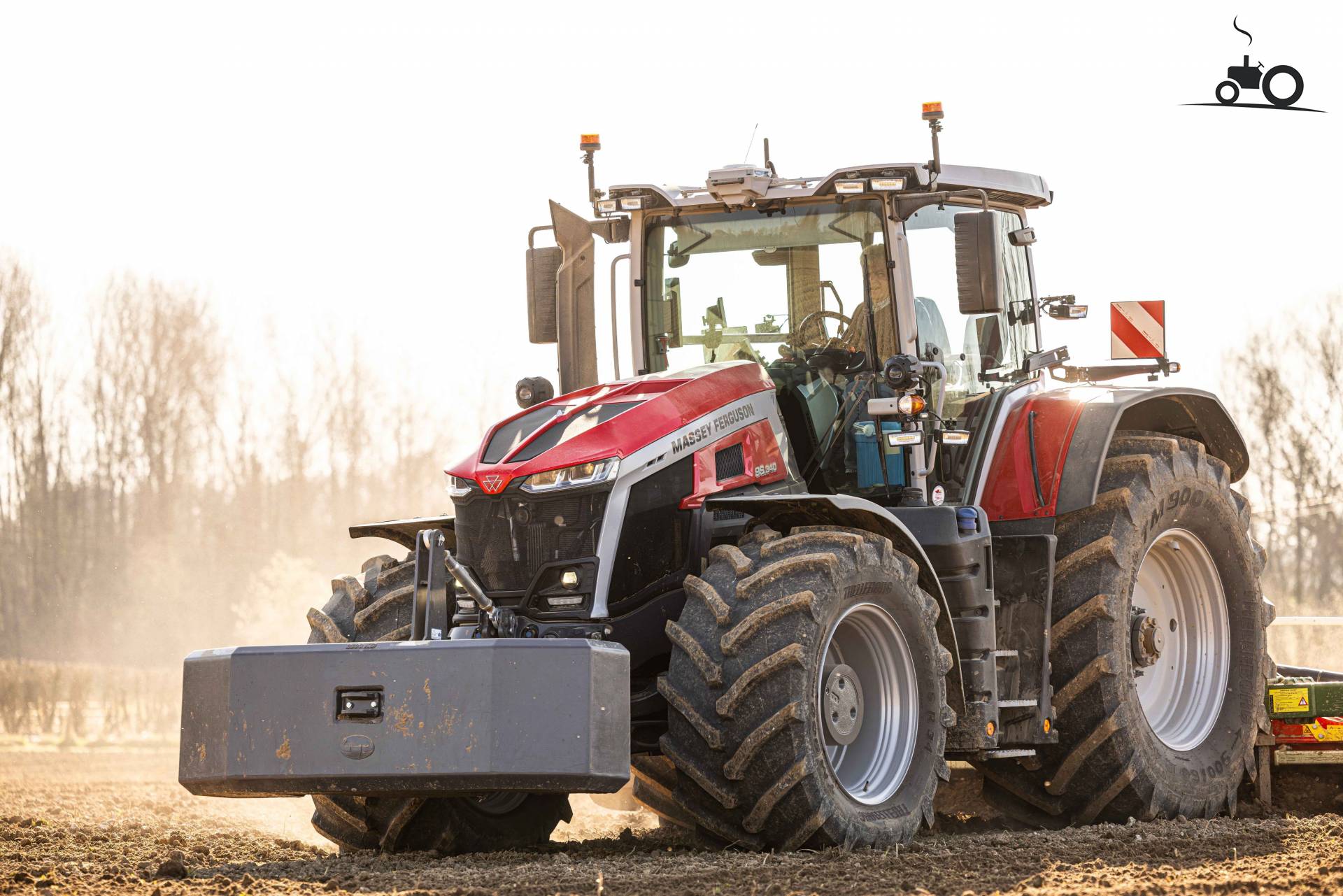

Massey Ferguson 9S.340

Name: Massey Ferguson 9S.340
Brand: Massey Ferguson

Massey Ferguson 9S.340 — 9S Series · 340 hp. Reference specifications; pending source verification.

The Massey Ferguson 9S.340 is a tractor with a rated output of 340 hp, positioning it within the higher-powered category of its class. Manufactured in 2024, this model features a 6-cylinder diesel liquid-cooled engine and a four-wheel drive system with a continuously variable transmission. Designed to handle large-scale farming operations, the 9S.340 is capable of managing land areas of approximately 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

340 hp

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

340 hp

Production years

2024-2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey Ferguson (a part of AGCO)Reference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Four-wheel driveReference

Power steeringReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 8.4L 6-cyl dieselReference

Fuel tank660.1 LReference

Exhaust fluid (DEF)68.1 LReference

Engine253.5 kWReference

AGCO PowerReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsStage VReference

Power253.5 kWReference

Maximum Power275.9 kWReference

Torque1449.6 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

continuously variable transmissionReference

TransmissionDyna-VTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeclosed center load sensingReference

Pressure200.0 barReference

Rear valves6Reference

Front valves1 or 2Reference

Pump flow269.9 lpmReference

Pump flow400.1 lpmReference

Rear TypeIV/IIIReference

Rear lift (at ends)11999 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Engine RPM540E@1577Reference

Engine RPM1000@1882Reference

Engine RPM1000E@1605Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@2036Reference

Dimensions

Wheelbase310 cmReference

Front tire600/70R30Reference

Rear tire650/85R38Reference

Standard tires (ag)Front: 600/70R30. Rear: 650/85R38Reference

Optional tires (ag)Front: 650/60R34. Rear: 750/70R44Reference

Optional tires (ag)Front: 710/55R34. Rear: 900/40R42Reference

Length560 cmReference

Height341 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
