Tractor · 2024Unverified

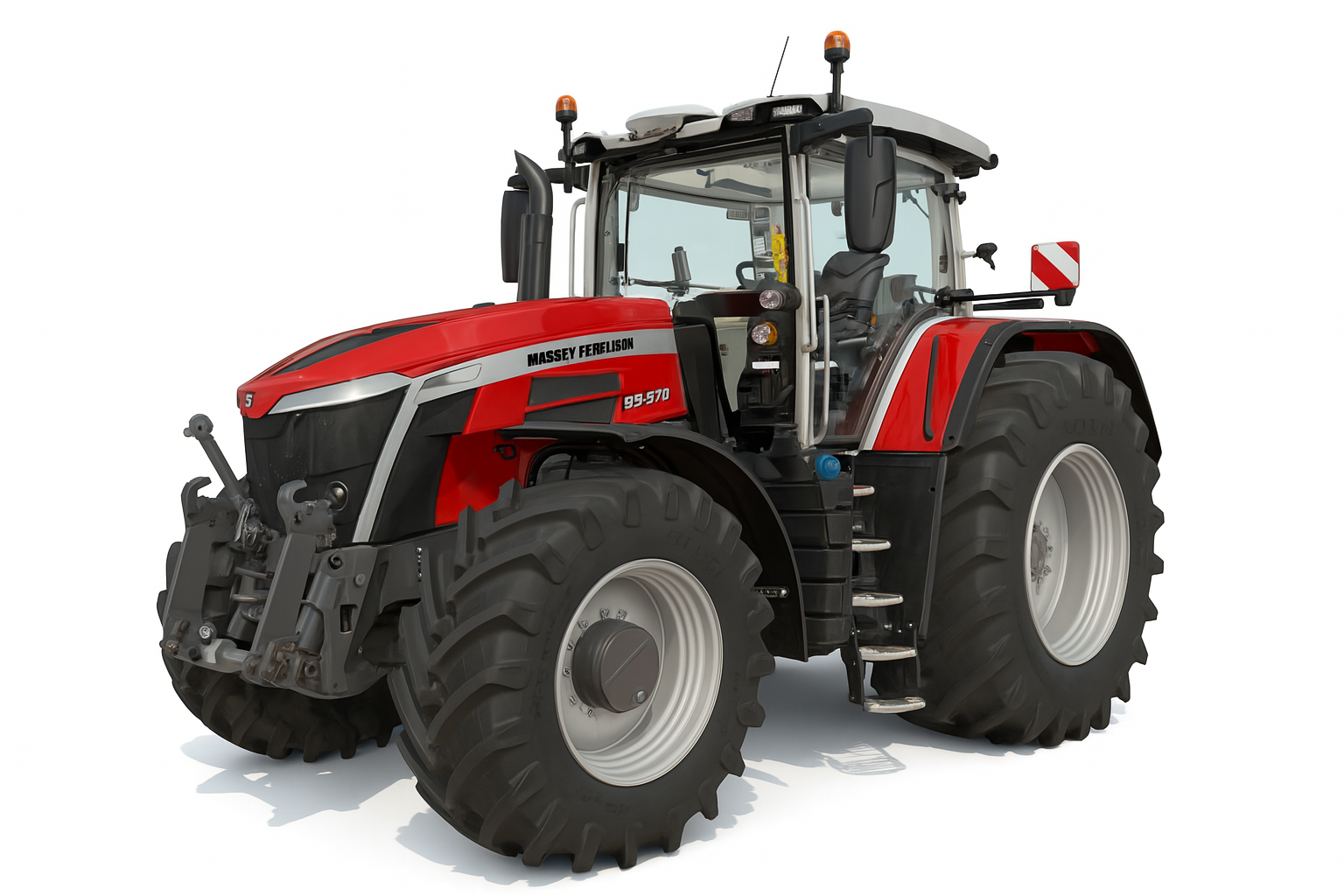

Massey Ferguson 9S.370
Massey Ferguson 9S.370 — 9S Series · 370 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
370 hp
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 8.4L 6-cyl dieselReference
Fuel tank660.1 LReference
Exhaust fluid (DEF)68.1 LReference
Engine275.9 kWReference
AGCO PowerReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
EmissionsStage VReference
Power275.9 kWReference
Maximum Power298.3 kWReference
Torque1600.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
continuously variable transmissionReference
TransmissionDyna-VTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeclosed center load sensingReference
Pressure200.0 barReference
Rear valves6Reference
Front valves1 or 2Reference
Pump flow269.9 lpmReference
Pump flow400.1 lpmReference
Rear TypeIV/IIIReference
Rear lift (at ends)11999 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540E@1577Reference
Engine RPM1000@1882Reference
Engine RPM1000E@1605Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@2036Reference
Dimensions
Wheelbase310 cmReference
Front tire650/60R30Reference
Rear tire710/75R42Reference
Standard tires (ag)Front: 650/60R30. Rear: 710/75R42Reference
Optional tires (ag)Front: 650/60R34. Rear: 750/70R44Reference
Optional tires (ag)Front: 710/55R34. Rear: 900/40R42Reference
Length560 cmReference
Height341 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
