Tractor · 1956Unverified

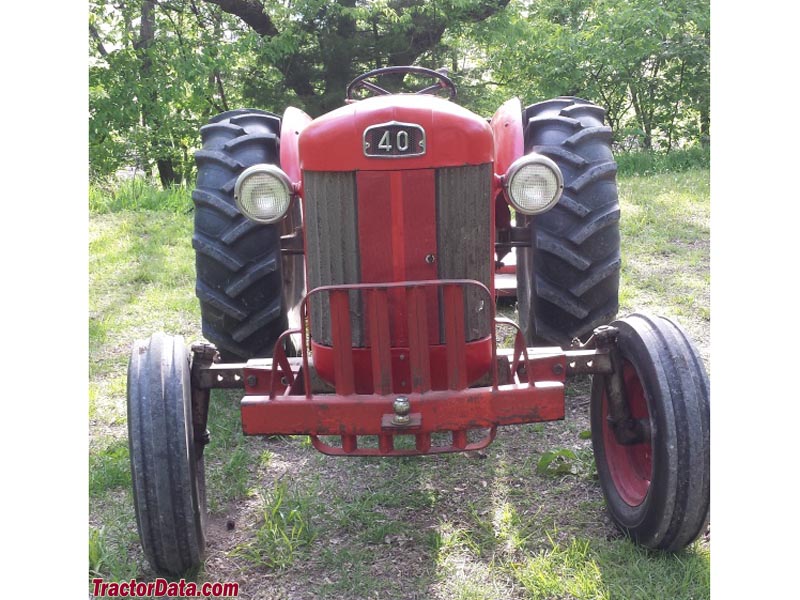

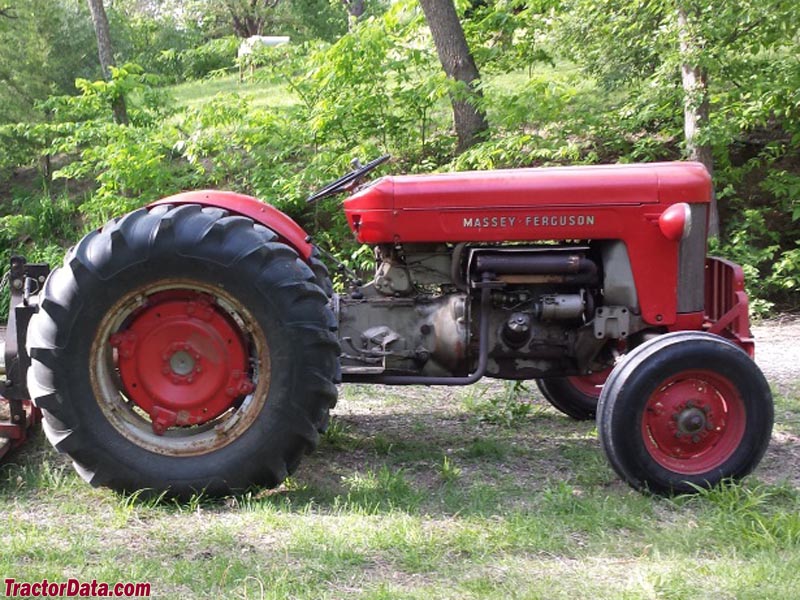

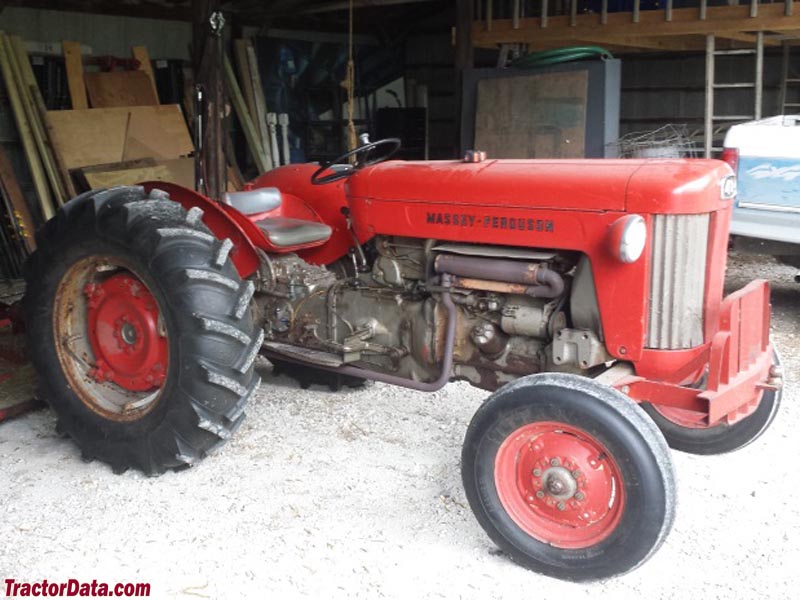

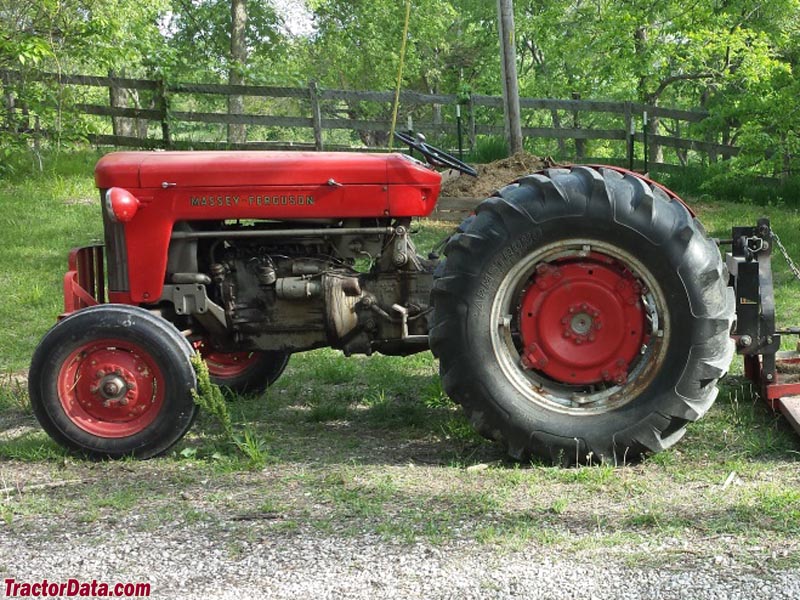

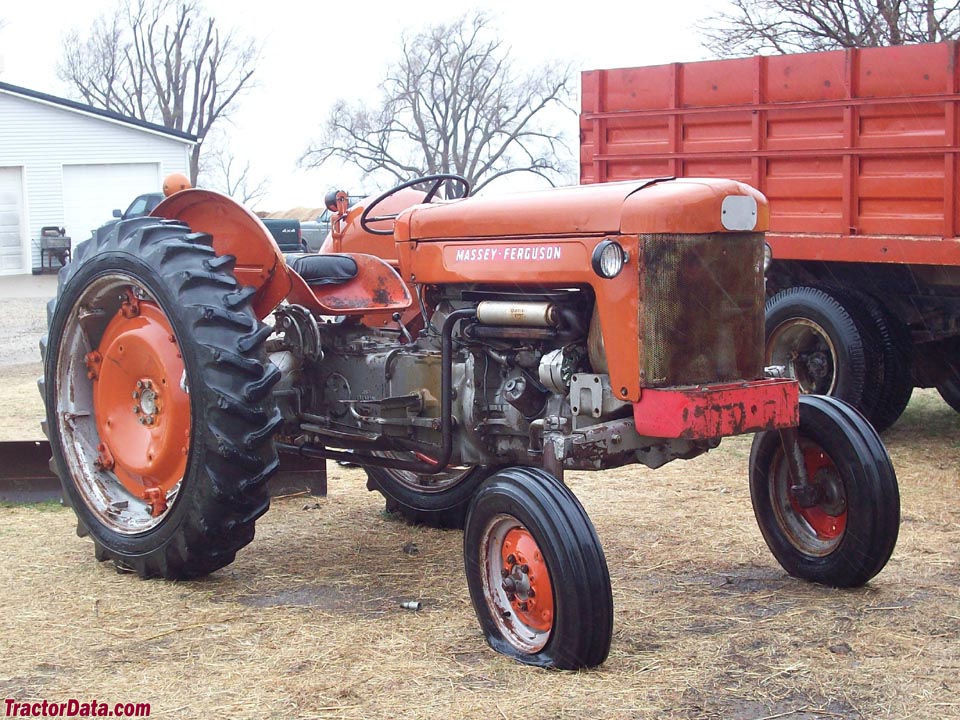

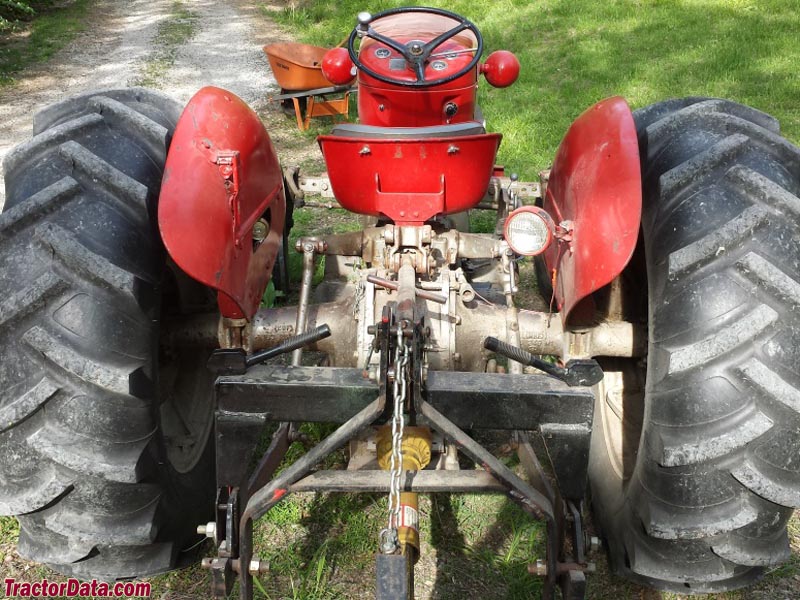

Massey Ferguson F40
Massey Ferguson F40 — Utility tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1406 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Utility tractorReference
Built in Detroit, Michigan, USAReference
Original price was $2,382 in 1957Reference
Two-wheel driveReference
Open operator station.Reference
Variants
F-40similar Ferguson modelReference
Engine
Continental 2.2L 4-cyl gasolineReference
Drawbar (claimed)23.1 kWReference
Continental Z-134Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 98 mmReference
Rated RPM2000Reference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1406 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
F40 Serial Number Location
Serial number plate on tractor dashboard.Reference
F40 Serial Numbers
1956400001Reference
1957405671Reference
Final409097Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
