Tractor · 2013Unverified

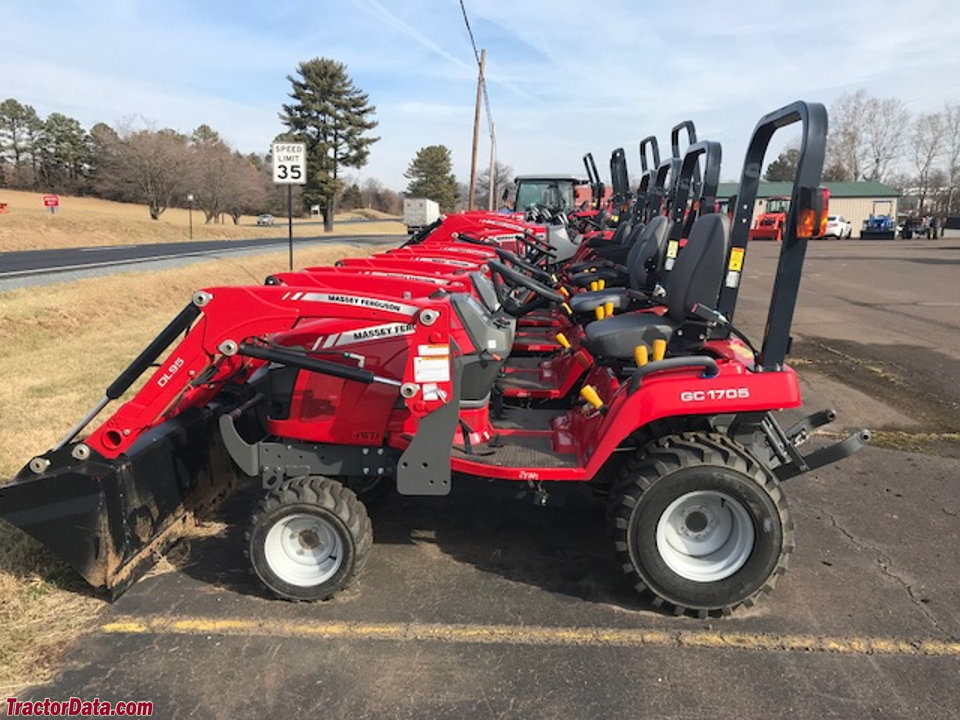

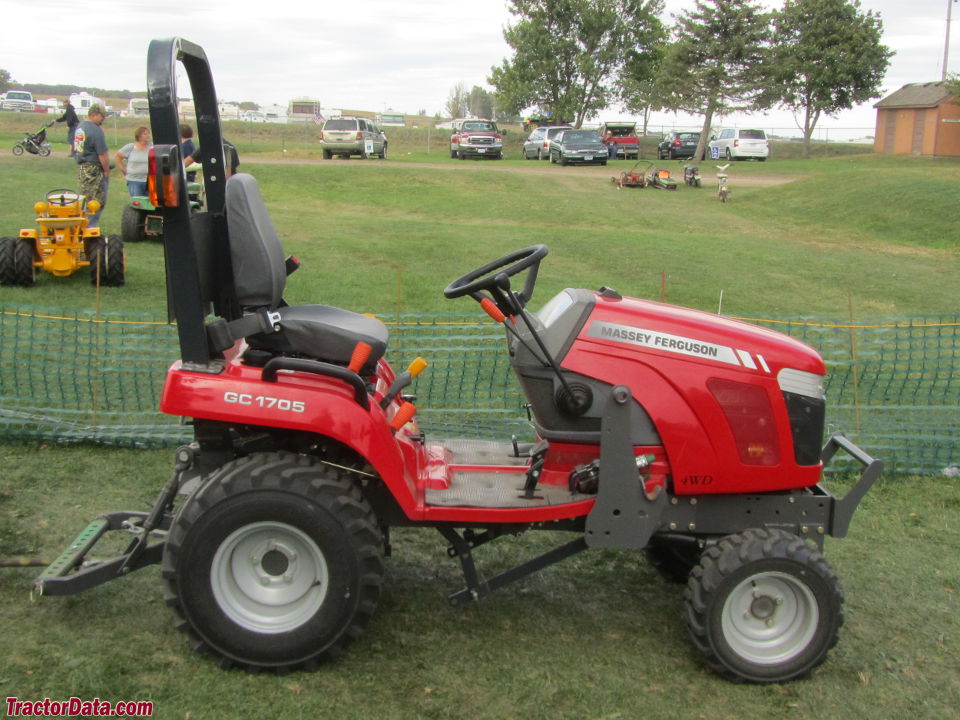

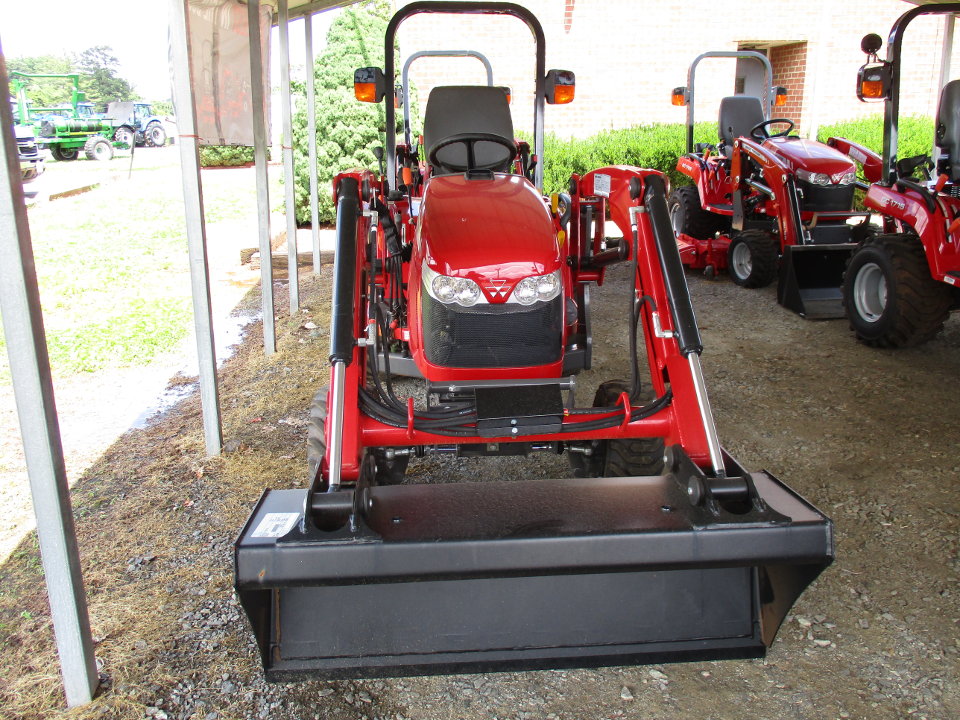

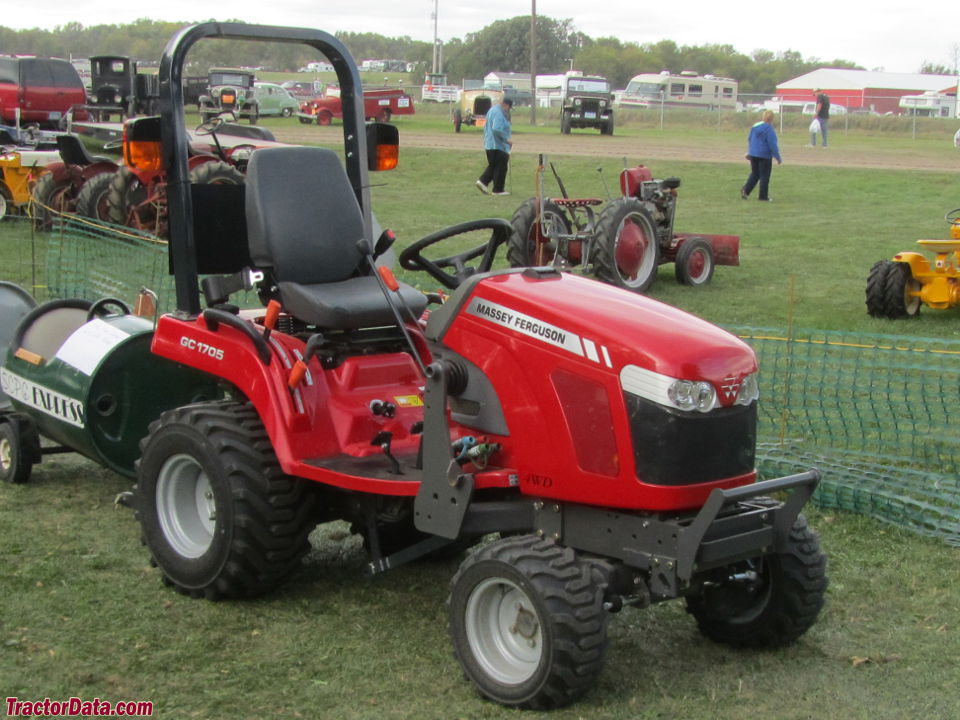

Massey Ferguson GC1705

Name: Massey Ferguson GC1705
Brand: Massey Ferguson

Massey Ferguson GC1705 — GC1700 Series · 23 hp. Reference specifications; pending source verification.

The Massey Ferguson GC1705 is a compact tractor with a rated output of 23 hp, positioning it within its class. Manufactured from 2013 to 2018, it features a 3-cylinder diesel liquid-cooled engine driving a four-wheel drive system with a hydrostatic transmission. The listed weight of the GC1705 is 650 kg, and it is suited for tasks requiring around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Max power

22.5 hp

Weight

650 kg

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

23 hp

Recorded weight

650 kg

Transmissions

hydrostatic

Production years

2013-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Sub-Compact Utility tractorReference

Original price was $10,834 in 2013Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

GC1705tractorReference

GC1710backhoe-loaderReference

Engine

Iseki 1.1L 3-cyl dieselReference

Engine (gross)16.8 kWReference

IsekiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power (gross)16.8 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 rpmReference

Bore and stroke3.08x3.07 inchesReference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeE-HSTReference

forward and reverse optionsHydrostatic infinite (2-range) F&RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)13.9 kWReference

Typeopen centerReference

SCV flow16.3 lpmReference

Total flow23.8 lpmReference

Steering flow7.6 lpmReference

Rear TypeIReference

Rear lift (at ends)539 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase145 cmReference

Weight650 kgReference

Front tire18x8.50-10Reference

Rear tire26x12.00-12Reference

Ag front18x8.50-10Reference

Ag rear26x12.00-12Reference

Lawn/turf front18x8.50-10Reference

Lawn/turf rear26x12.00-12Reference

Industrial front18x8.50-10Reference

Industrial rear26x12.00-12Reference

Length247 cmReference

Width120 cmReference

Height (ROPS)184 cmReference

Shipping weight650 kgReference

Ground clearance17 cmReference

Massey Ferguson GC1705 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

Massey Ferguson DL100 loaderReference

Massey Ferguson DL95 loaderReference

Capacities

Capacity68.5 ciReference

Power

Max Power22.5 hpReference

PTO

PTO Power18.7 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 rpmReference

Mid PTO RPM2,000 rpmReference

General

Cruise controlAvailableReference

SCV controlJoystickReference

Rollover protective structureTwo-post folding ROPS.Reference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)6.3 gpmReference

Hydraulics Typeopen centerReference

Steering & Implements flow2 gpmReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity539.8 kgReference

Dimensions & weight

Height Over ROPS184.9 cmReference

Overall Length247.9 cmReference

Overall Width120 cmReference

Overall weight650 kgReference

Wheels & tyres

Rear Wheel TypeAg rear: 26x12.00-12Reference

Front Wheel TypeAg front: 18x8.50-10Reference

Operator station

Cab AvailabilityAvailableReference

Cab Seat TypeCoil springReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
