Backhoe Loader · 2013Unverified

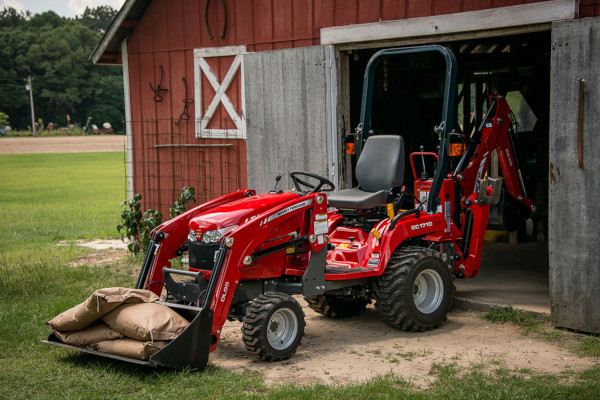

Massey Ferguson GC1710

Name: Massey Ferguson GC1710
Brand: Massey Ferguson

Massey Ferguson GC1710 — GC1700 Series · 23 hp. Reference specifications; pending source verification.

The Massey Ferguson GC1710 is a backhoe loader with a rated power of 23 hp, placing it at the lighter end of its class. It was manufactured from 2013 to 2018 and features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. The machine has an operating weight of 1211 kg and is suited to operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

1211 kg

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

23 hp

Recorded weight

1211 kg

Transmissions

hydrostatic

Production years

2013-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Backhoe loader tractorReference

Original price was $18,341 in 2013Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

GC1705tractorReference

GC1710backhoe-loaderReference

Engine

Iseki 1.1L 3-cyl dieselReference

Engine (gross)16.8 kWReference

IsekiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power (gross)16.8 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)13.9 kWReference

Typeopen centerReference

SCV flow16.3 lpmReference

Total flow23.8 lpmReference

Steering flow7.6 lpmReference

Rear TypeIReference

Rear lift (at ends)539 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase145 cmReference

Weight1211 kgReference

Front tire18x8.50-10Reference

Rear tire26x12.00-12Reference

Ag front18x8.50-10Reference

Ag rear26x12.00-12Reference

Lawn/turf front18x8.50-10Reference

Lawn/turf rear26x12.00-12Reference

Industrial front18x8.50-10Reference

Industrial rear26x12.00-12Reference

Length449 cmReference

Width137 cmReference

Height (ROPS)218 cmReference

Shipping weight1211 kgReference

Ground clearance17 cmReference

Backhoe & Loader

Dig depth198 cmReference

Dump angle109 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

Massey Ferguson DL100 loaderReference

Massey Ferguson DL95 loaderReference

BackhoeReference

Massey Ferguson CB05 Backhoe

Backhoe typeMassey Ferguson CB05 BackhoeReference

Bucket width25 cmReference

Bucket width30 cmReference

Digging depth198 cmReference

Reach from pivot259 cmReference

Swing Arc140°Reference

Bucket force884 kgReference

Dipperstick force535 kgReference

Massey Ferguson CB65 Backhoe

Backhoe typeMassey Ferguson CB65 BackhoeReference

Bucket width25 cmReference

Bucket width30 cmReference

Digging depth196 cmReference

Reach from pivot273 cmReference

Bucket force1123 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
