Backhoe Loader · 2013Unverified

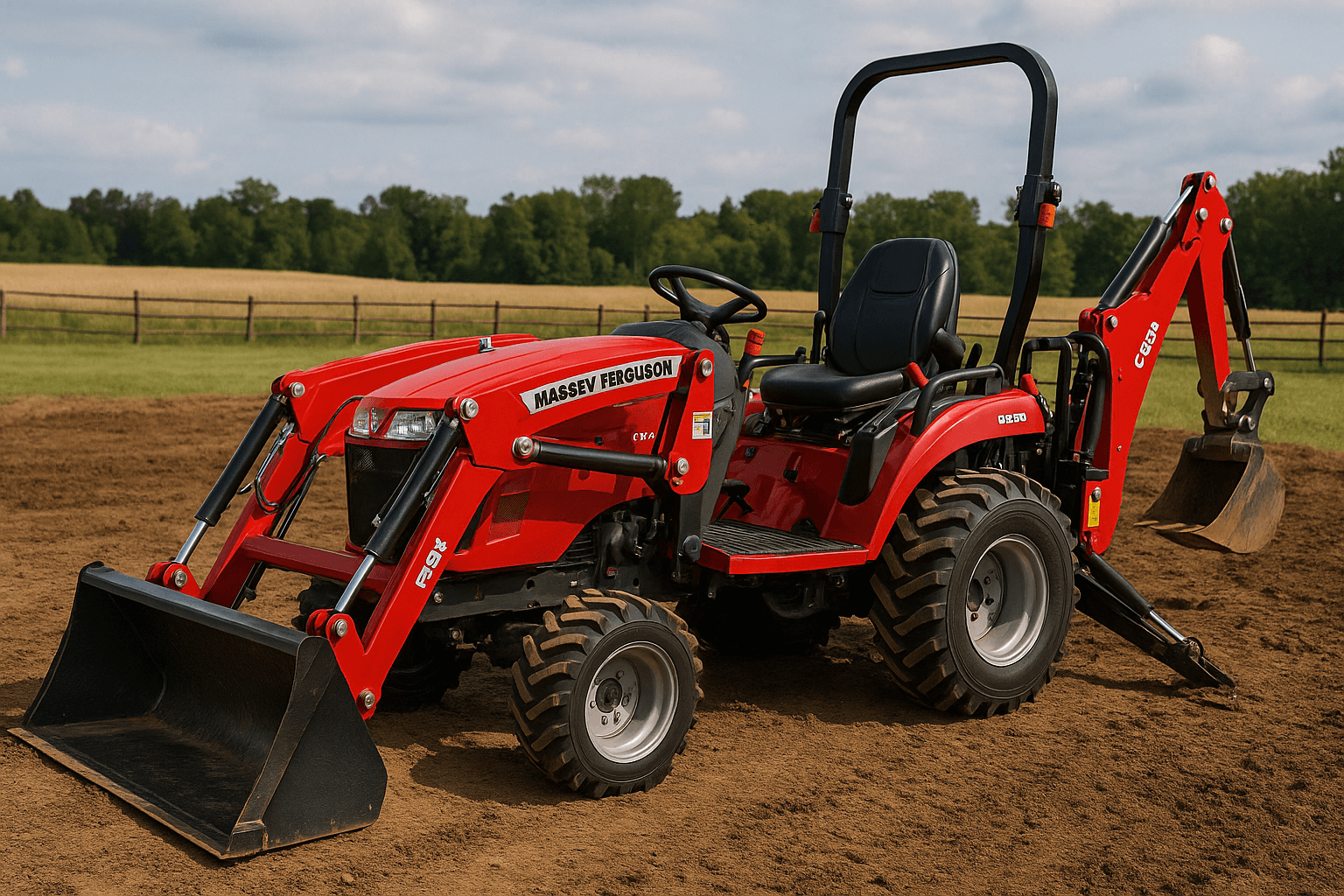

Massey Ferguson GC1720

Name: Massey Ferguson GC1720
Brand: Massey Ferguson

Massey Ferguson GC1720 — GC1700 Series · 25 hp. Reference specifications; pending source verification.

The Massey Ferguson GC1720 is a backhoe loader with a rated power of 25 hp, positioning it at the lighter end of its class. Built between 2013 and 2018, the GC1720 features a 3-cylinder diesel liquid-cooled engine, paired with a hydrostatic transmission and four-wheel drive. Its operating weight is listed at 1211 kg, and it is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1211 kg

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

25 hp

Recorded weight

1211 kg

Transmissions

hydrostatic

Production years

2013-2018

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Backhoe loader tractorReference

Original price was $20,709 in 2013Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

GC1715tractorReference

GC1720backhoe-loaderReference

Engine

Iseki 1.1L 3-cyl dieselReference

Engine (gross)18.6 kWReference

IsekiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power (gross)18.6 kWReference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)14.6 kWReference

Typeopen centerReference

SCV flow18.2 lpmReference

Total flow25.7 lpmReference

Steering flow7.6 lpmReference

Rear TypeIReference

Rear lift (at ends)539 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase145 cmReference

Weight1211 kgReference

Front tire18x8.50-10Reference

Rear tire26x12.00-12Reference

Ag front18x8.50-10Reference

Ag rear26x12.00-12Reference

Lawn/turf front18x8.50-10Reference

Lawn/turf rear26x12.00-12Reference

Industrial front18x8.50-10Reference

Industrial rear26x12.00-12Reference

Length449 cmReference

Width137 cmReference

Height (ROPS)218 cmReference

Shipping weight1211 kgReference

Ground clearance17 cmReference

Backhoe & Loader

Dig depth198 cmReference

Dump angle109 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

Massey Ferguson DL100 loaderReference

Massey Ferguson DL95 loaderReference

BackhoeReference

Massey Ferguson CB05 Backhoe

Backhoe typeMassey Ferguson CB05 BackhoeReference

Bucket width25 cmReference

Bucket width30 cmReference

Digging depth198 cmReference

Reach from pivot259 cmReference

Swing Arc140°Reference

Bucket force884 kgReference

Dipperstick force535 kgReference

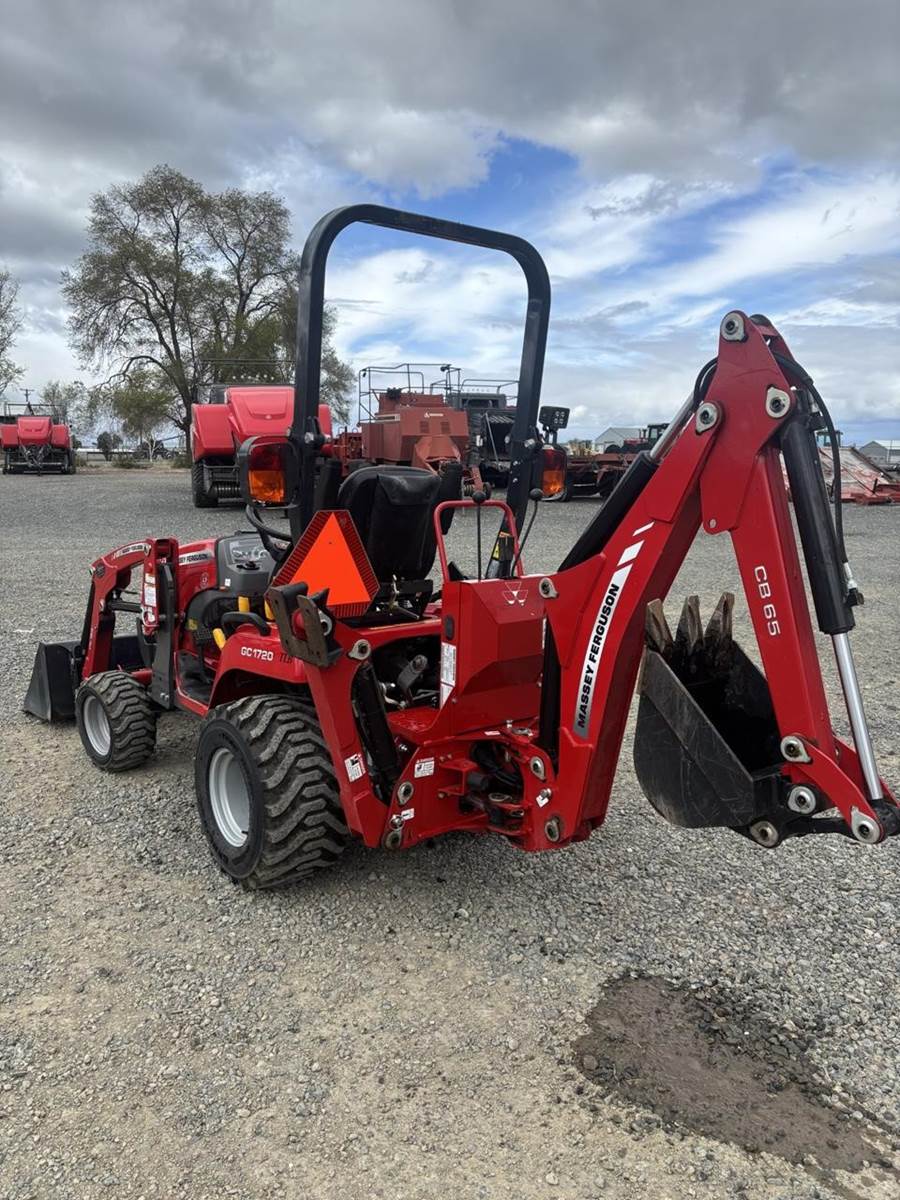

Massey Ferguson CB65 Backhoe

Backhoe typeMassey Ferguson CB65 BackhoeReference

Bucket width25 cmReference

Bucket width30 cmReference

Digging depth196 cmReference

Reach from pivot273 cmReference

Bucket force1123 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
