Tractor · 2019Unverified
Massey Ferguson GC1723E
Massey Ferguson GC1723E — GC1700 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
689 kg
Hover a source tag to verify
Overview
ManufacturerMassey Ferguson (a part of AGCO)Reference
Sub-Compact Utility tractorReference
Original price was $11,156 in 2020Reference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS. Folding ROPS on GC1723EB backhoe package.Reference
Variants
GC1723EtractorReference
GC1723EBbackhoe-loader tractorReference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)16.8 kWReference
Engine (net)16.1 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
EmissionsTier IVReference
Power (net)16.1 kWReference
Power (gross)16.8 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Compression22.5:1Reference
Rated RPM2600Reference
Idle RPM1250-2860Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)13.9 kWReference
Typeopen centerReference
Pressure132.4 barReference
Pump flow16.3 lpmReference
Total flow23.8 lpmReference
Steering flow7.6 lpmReference
Steering press.83.4 barReference
Rear TypeIReference
Rear lift (at ends)540 kgReference
Rear lift (at 24"/610mm)299 kgReference
Rear PTOindependentReference
Clutchmechanical wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2532Reference
Mid PTOindependentReference
Mid PTO Type2000 (1.00)Reference
Dimensions
Wheelbase145 cmReference
Weight689 kgReference
Front tire18x8.50-10Reference
Rear tire26x12.00-12Reference
Ag front18x8.50-10Reference
Ag rear26x12.00-12Reference
Lawn/turf front18x8.50-10Reference
Lawn/turf rear26x12.00-12Reference
Industrial front18x8.50-10Reference
Industrial rear26x12.00-12Reference
Length247 cmReference
Width118 cmReference
Height (steering wheel)132 cmReference
Height (ROPS)184 cmReference
Ground clearance17 cmReference
689 kgReference
Max front axle879 kgReference
Max rear axle949 kgReference
Massey Ferguson GC1723E attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA433Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference

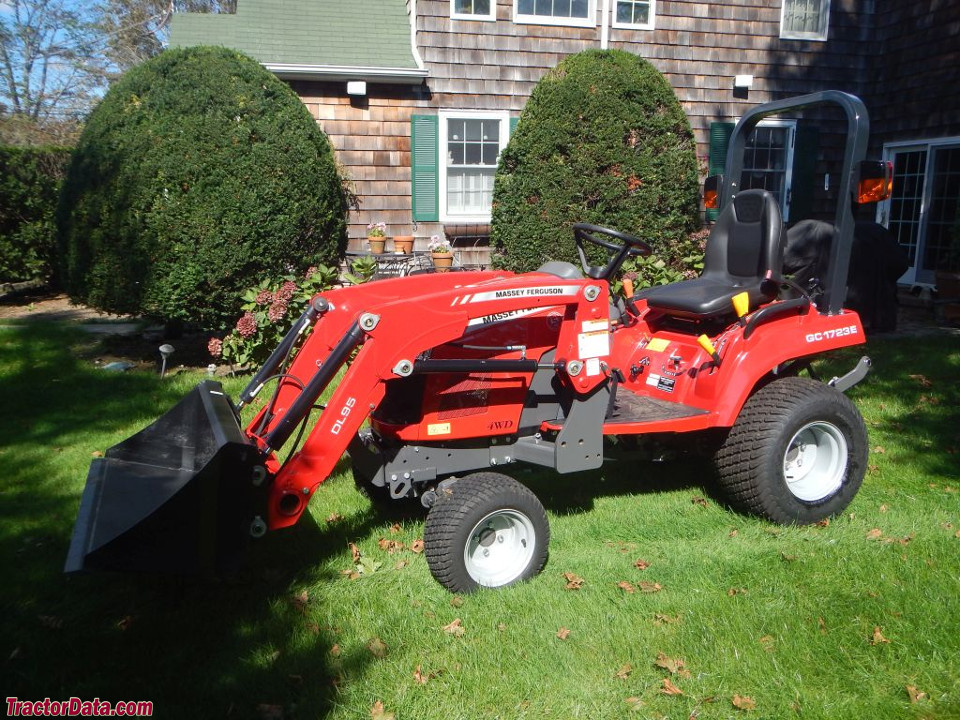

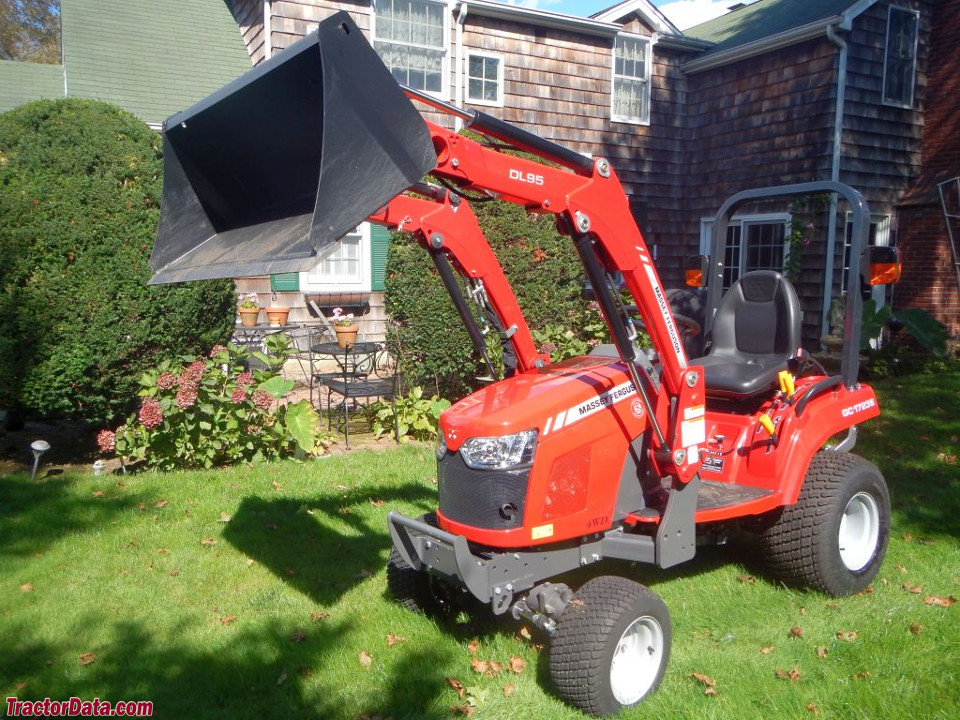

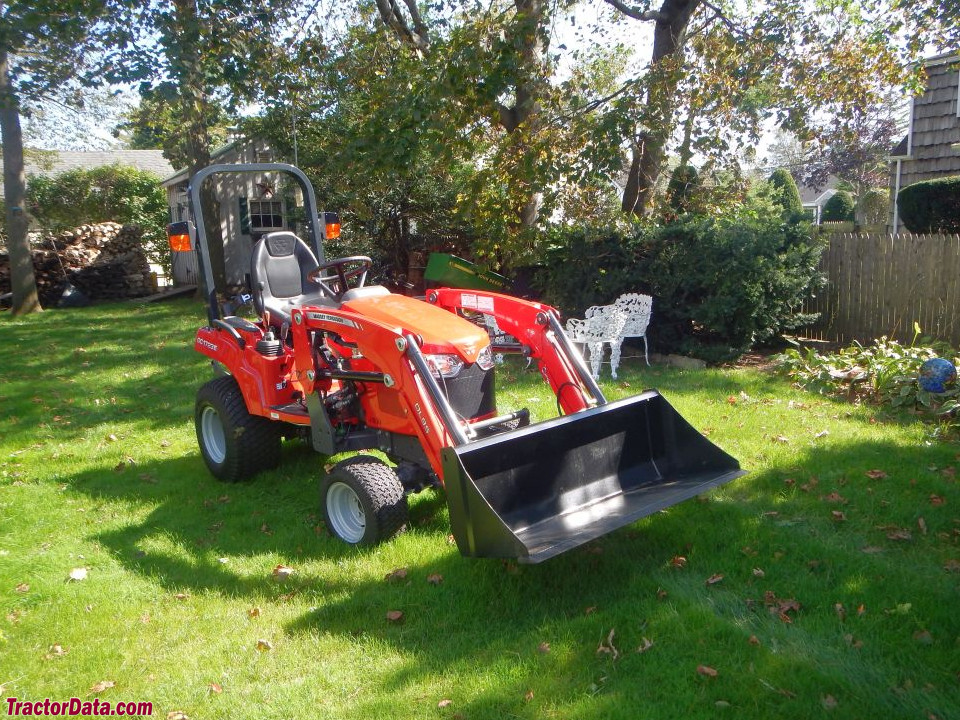

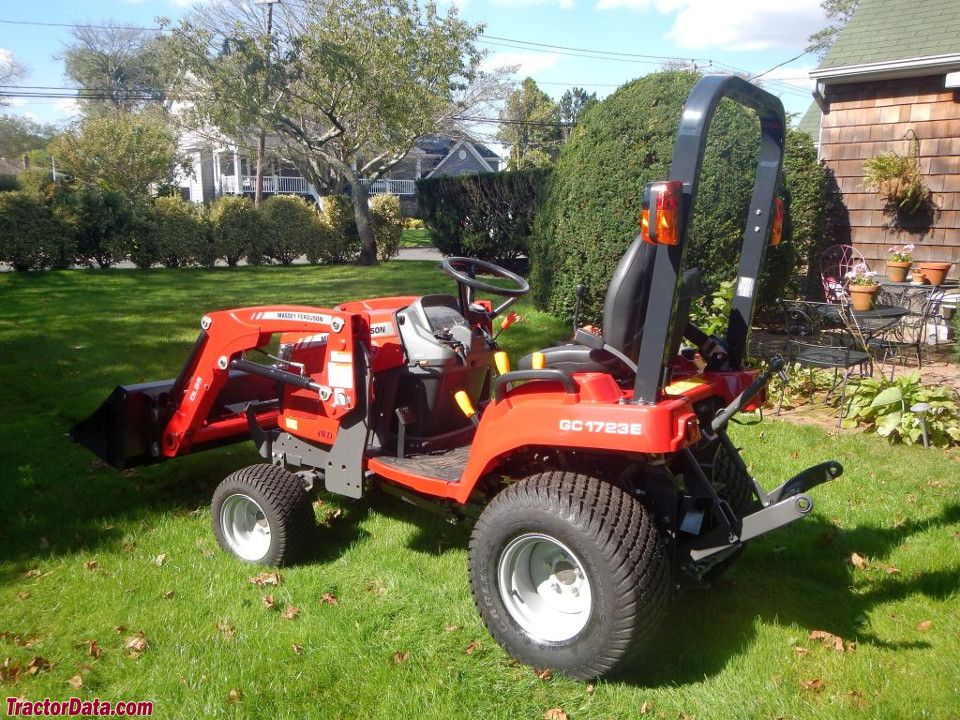

Massey Ferguson DL95 loaderReference
Massey Ferguson FL1805 loaderReference
BackhoeReference
Massey Ferguson CB65 Backhoe
Backhoe typeMassey Ferguson CB65 BackhoeReference
Transport height180 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Digging depth198 cmReference
Reach from pivot271 cmReference
Loading height167 cmReference
Bucket Rotation177°Reference
Swing Arc150°Reference
Bucket force1123 kgReference
Dipperstick force792 kgReference
Capacities
Max capacity1220 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
