Tractor · 2003Unverified

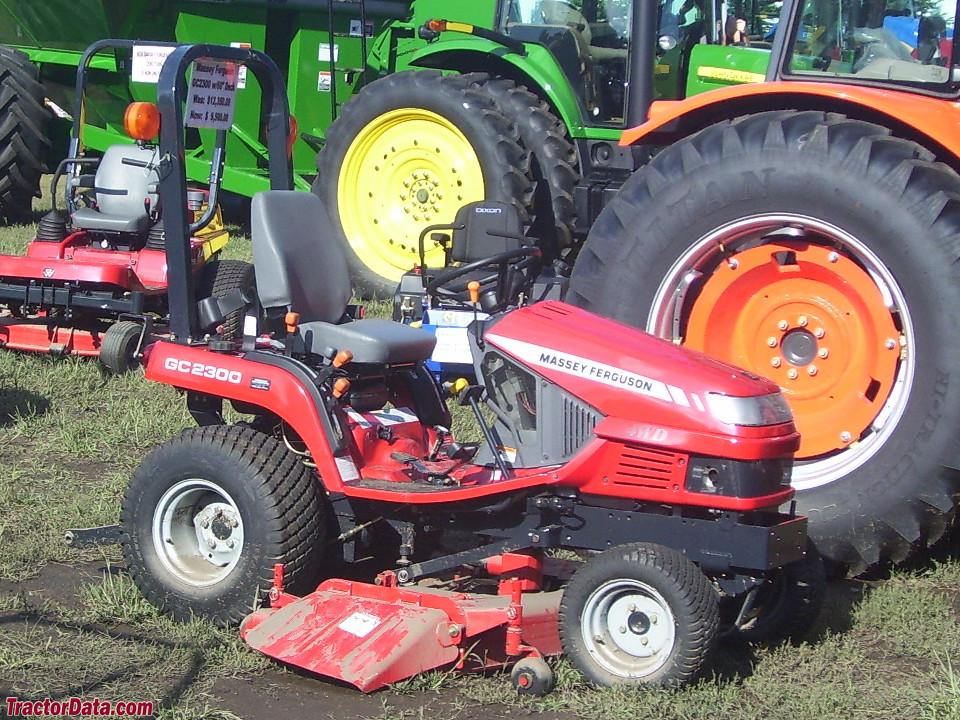

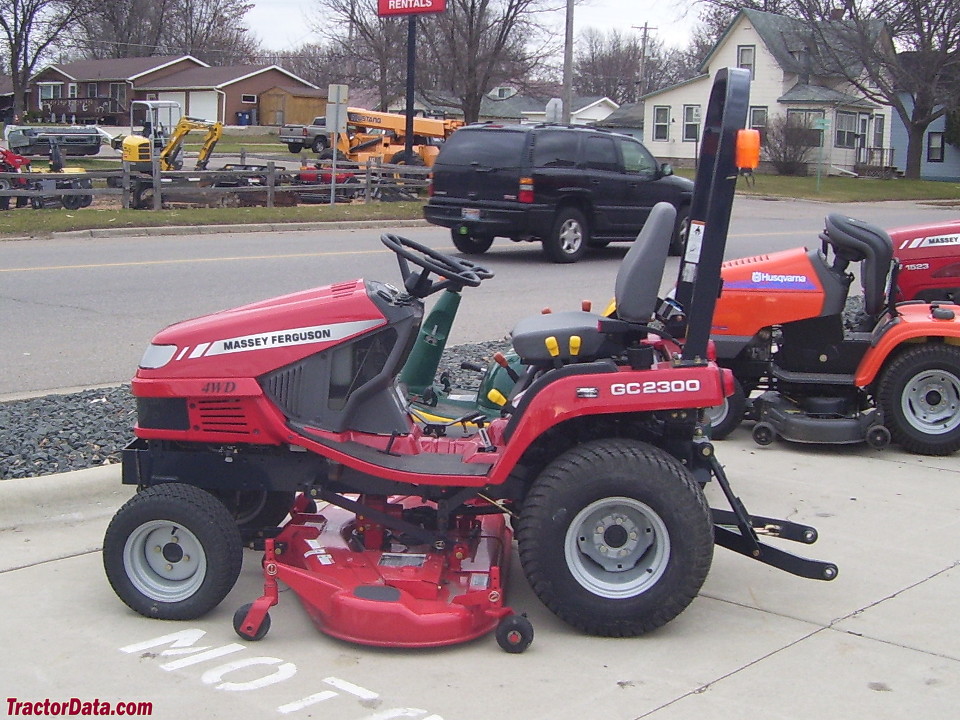

Massey Ferguson GC2300

Name: Massey Ferguson GC2300
Brand: Massey Ferguson

Massey Ferguson GC2300 — GC Series · 19 hp. Reference specifications; pending source verification.

The Massey Ferguson GC2300 is a tractor rated at 19 hp — making it one of the more compact options in its class. The GC2300 was manufactured from 2003 to 2008. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 620 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Weight

620 kg

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

19 hp

Recorded weight

620 kg

Transmissions

hydrostatic

Production years

2003-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorMassey FergusonReference

ManufacturerIsekiReference

Sub-Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post fixed ROPS.Reference

Variants

GC2310TLBtractor with loader and backhoeReference

ST22Asimilar AGCO modelReference

Engine

Iseki 1.1L 3-cyl dieselReference

Fuel tank20.8 LReference

Engine16.8 kWReference

IsekiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power16.8 kWReference

Rated RPM2600Reference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

PTO (claimed)13.9 kWReference

Typeopen centerReference

Pump flow15.5 lpmReference

Total flow23.1 lpmReference

Steering flow7.6 lpmReference

Rear TypeIReference

Rear lift (at ends)539 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase145 cmReference

Weight620 kgReference

Length247 cmReference

Width116 cmReference

Height184 cmReference

Shipping weight620 kgReference

Ground clearance17 cmReference

Massey Ferguson GC2300 attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
