Tractor · 2008Unverified

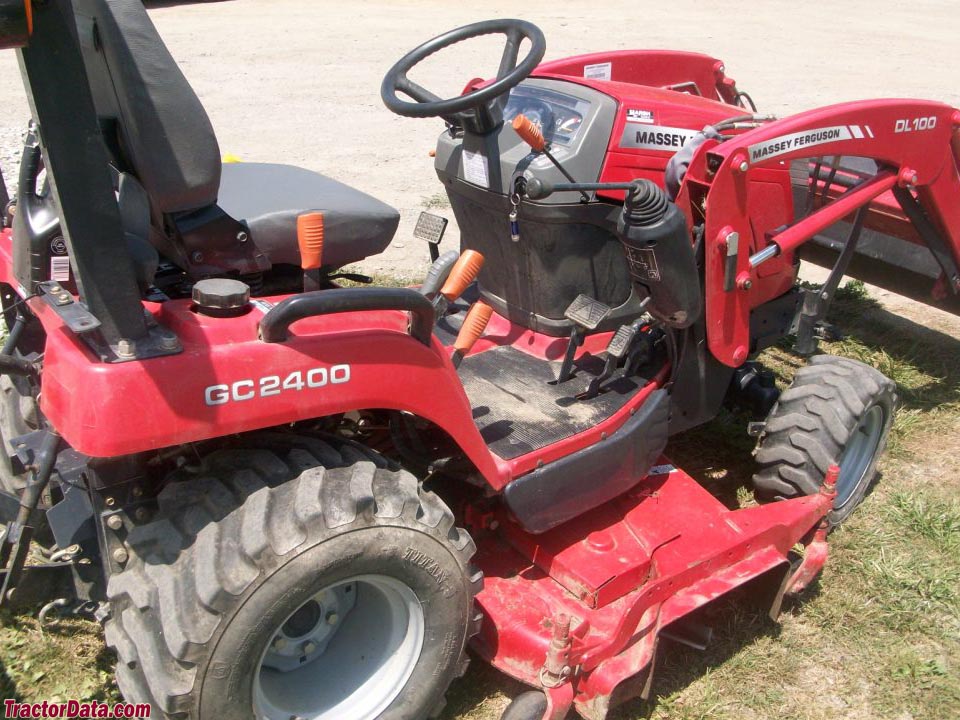

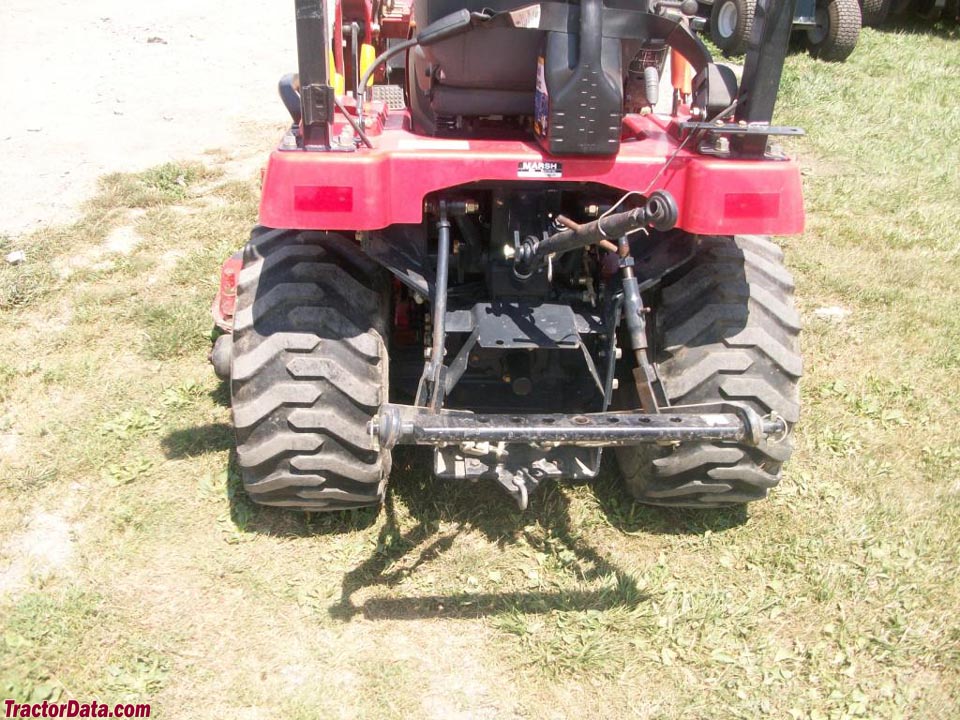

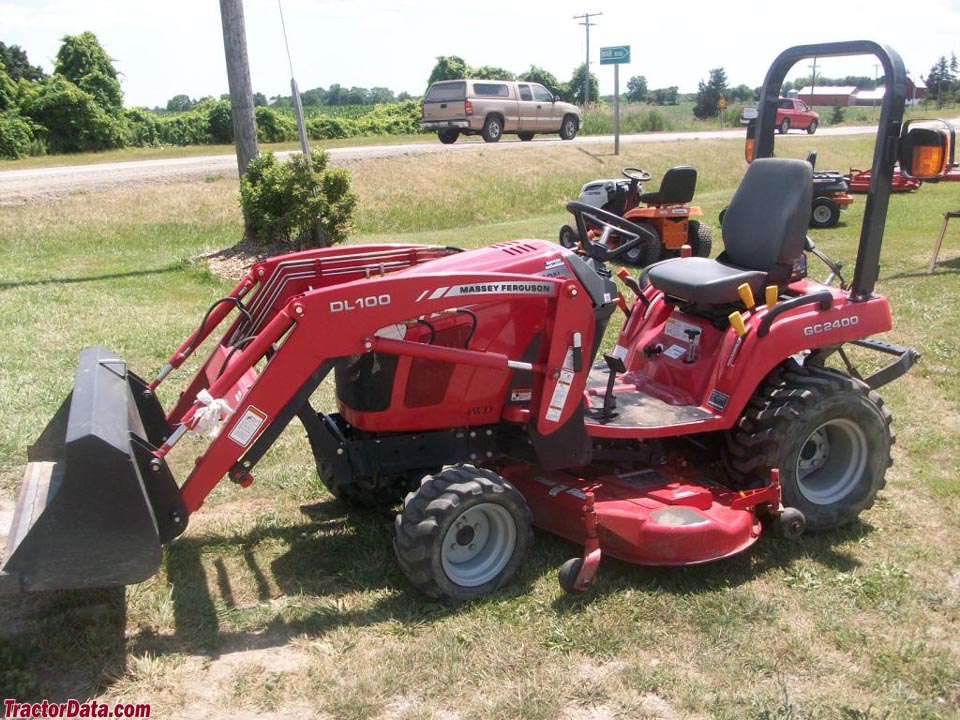

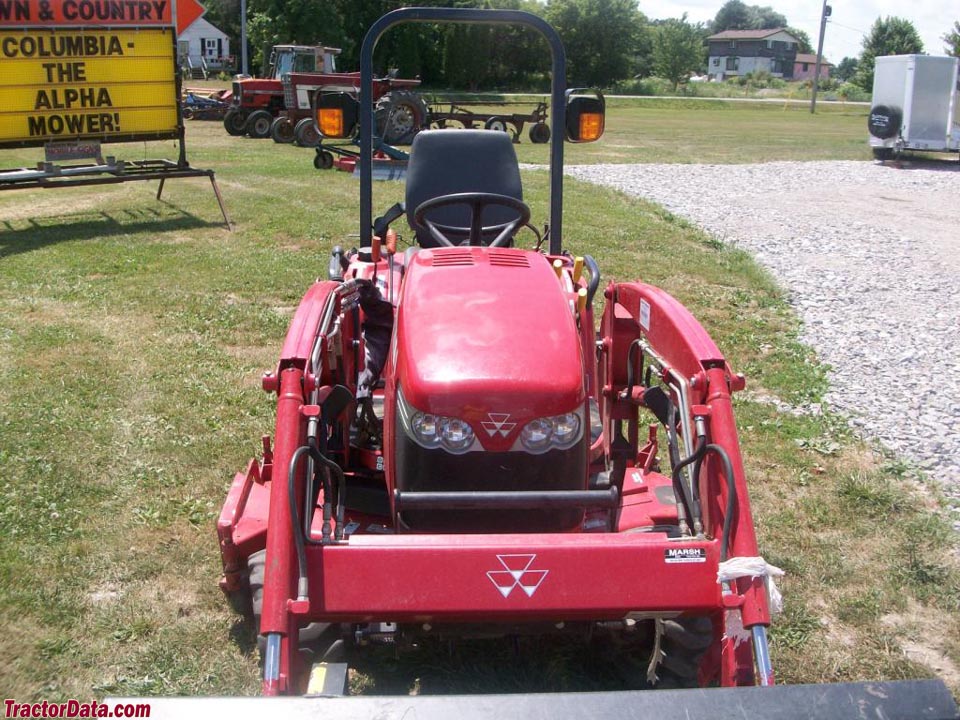

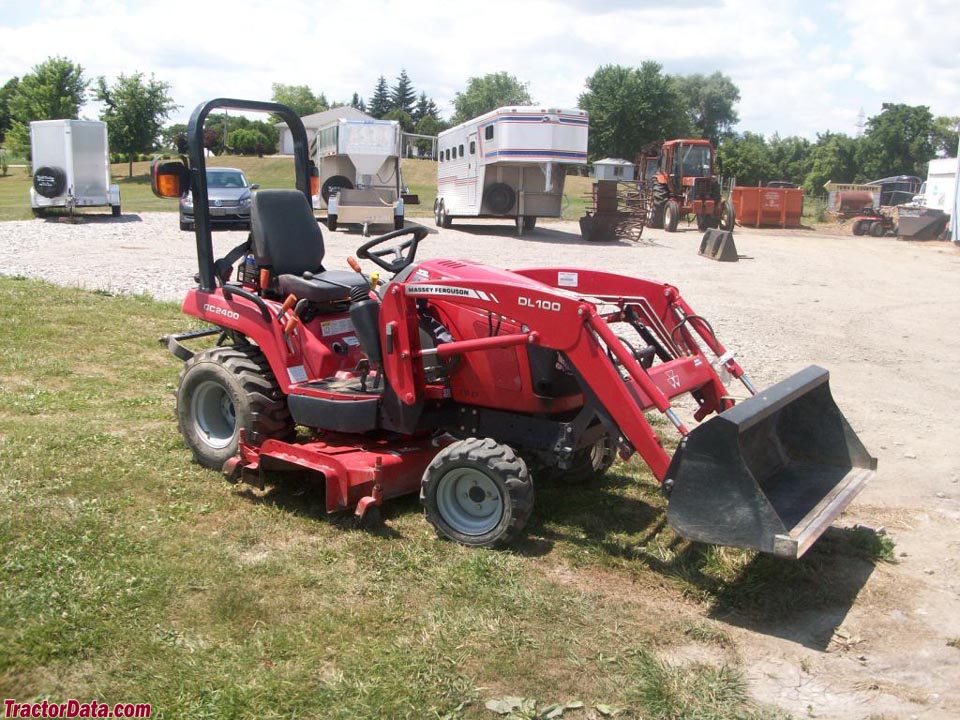

Massey Ferguson GC2400
Massey Ferguson GC2400 — GC Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
650 kg
Hover a source tag to verify
Overview
DistributorMassey FergusonReference
ManufacturerIsekiReference
Sub-Compact Utility tractorReference
Original price was $9,624 in 2009Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
GC2310TLBtractor with loader and backhoeReference
Engine
Iseki 1.1L 3-cyl dieselReference
Engine (gross)16.8 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)16.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.6 LReference
Coolant capacity4.6 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity11.0 LReference
PTO & Hydraulics
PTO (claimed)13.9 kWReference
Hydraulic system11.0 LReference
Typeopen centerReference
Capacity11.0 LReference
Pump flow16.3 lpmReference
Total flow23.8 lpmReference
Steering flow7.6 lpmReference
Rear TypeIReference
Rear lift (at ends)539 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Capacities
Fuel25.0 LReference
Front axle4.0 LReference
Max capacity1249 kgReference
Dimensions
Wheelbase145 cmReference
Weight650 kgReference
Front tire18x8.50-10Reference
Rear tire26x12.00-12Reference
Standard tires (ag)Front: 18x8.50-10. Rear: 26x12.00-12Reference
Lawn/turf front18x8.50-10Reference
Lawn/turf rear26x12.00-12Reference
Industrial front18x8.50-10Reference
Industrial rear26x12.00-12Reference
Length247 cmReference
Width119 cmReference
Height (ROPS)184 cmReference
Ground clearance17 cmReference
Front tread92 cmReference
Rear tread83 cmReference
Shipping650 kgReference
Max front axle879 kgReference
Max rear axle949 kgReference
Massey Ferguson GC2400 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
Electrical
GroundnegativeReference
Battery CCA390Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
