Tractor · 1942Unverified

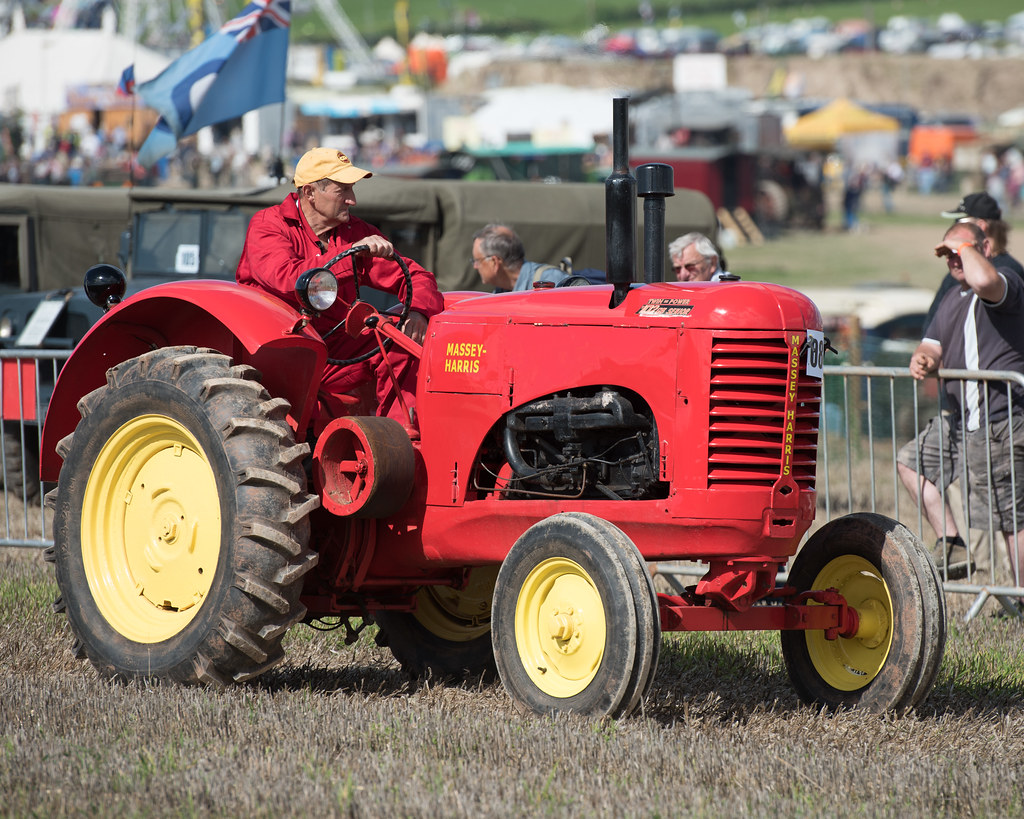

Massey-Harris 102 Senior
Massey-Harris 102 Senior. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1814 kg
Hover a source tag to verify
Overview
ManufacturerMassey-HarrisReference
Built in Racine, Wisconsin, USAReference
Original price was $1,300 in 1946Reference
Manual steeringReference
Open operator station.Reference
Variants
101gasoline engineReference
102distillate engineReference
Engine
Continental 4.0L 6-cyl distillateReference
Fuel tank56.8 LReference
Plows3Reference
ContinentalReference
distillateReference
6-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Starter volts6Reference
Coolant capacity17.0 LReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Dimensions
Weight1814 kgReference
Front tire6.00-16Reference
Rear tire12.75-24Reference
Ag front6.00-16Reference
Ag rear12.75-24Reference
Length337 cmReference
Length320 cmReference
Width173 cmReference
Width168 cmReference
Height (steering wheel)181 cmReference
Height (steering wheel)160 cmReference
Rear tread132 to 223 cmReference
Rear tread132 cmReference
102 Senior Serial Numbers
Location:On frame, rear-left side near transmission caseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
