Tractor · 1946Unverified

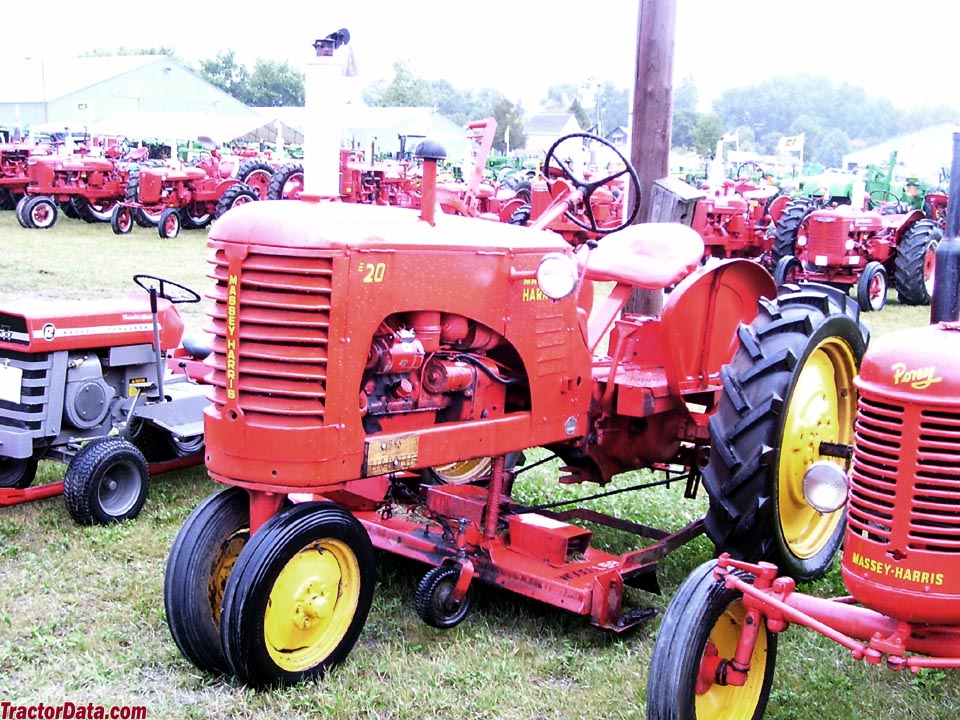

Massey-Harris 20 Row-Crop
Massey-Harris 20 Row-Crop — Row-Crop tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1224 kg
Hover a source tag to verify
Overview
ManufacturerMassey-HarrisReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $1,500 in 1948Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
20 RCrow-cropReference
20 STDstandard treadReference
Engine
Continental 2.0L 4-cyl gasolineReference
Continental 2.3L 4-cyl keroseneReference
Belt (claimed)23.1 kWReference
Plows2Reference
Continental F124Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke76 x 111 mmReference
Rated RPM1500Reference
Rated RPM1800Reference
Coolant capacity10.4 LReference
Continental F140Reference
keroseneReference
Displacement2.3 LReference
Bore/Stroke81 x 111 mmReference
Air cleaneroil bathReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type550Reference
Dimensions
Wheelbase210 cmReference
Weight1224 kgReference
Front tire4.00x15Reference
Rear tire9.00x32Reference
Ag front4.00x15Reference
Ag rear9.00x32Reference
Width208 cmReference
Height193 cmReference
Rear axle53 mmReference
20 Serial Numbers
19461001 (gas)Reference
19471580 (gas)Reference
19483584 (gas)Reference
19471001 (kerosene)Reference
19481354 (kerosene)Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
