Tractor · 1940Unverified

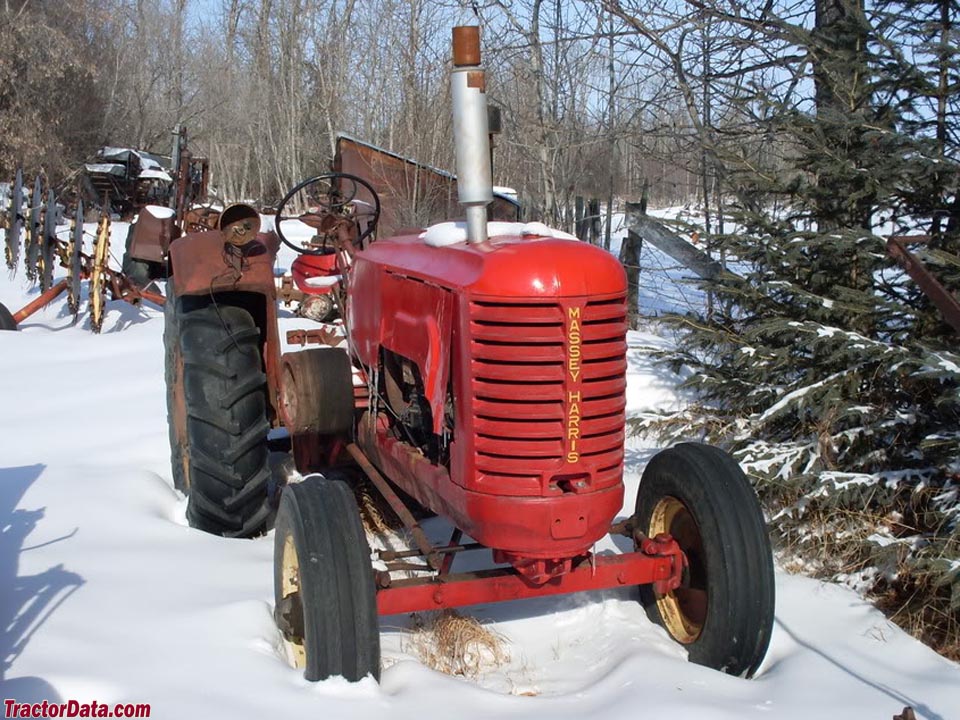

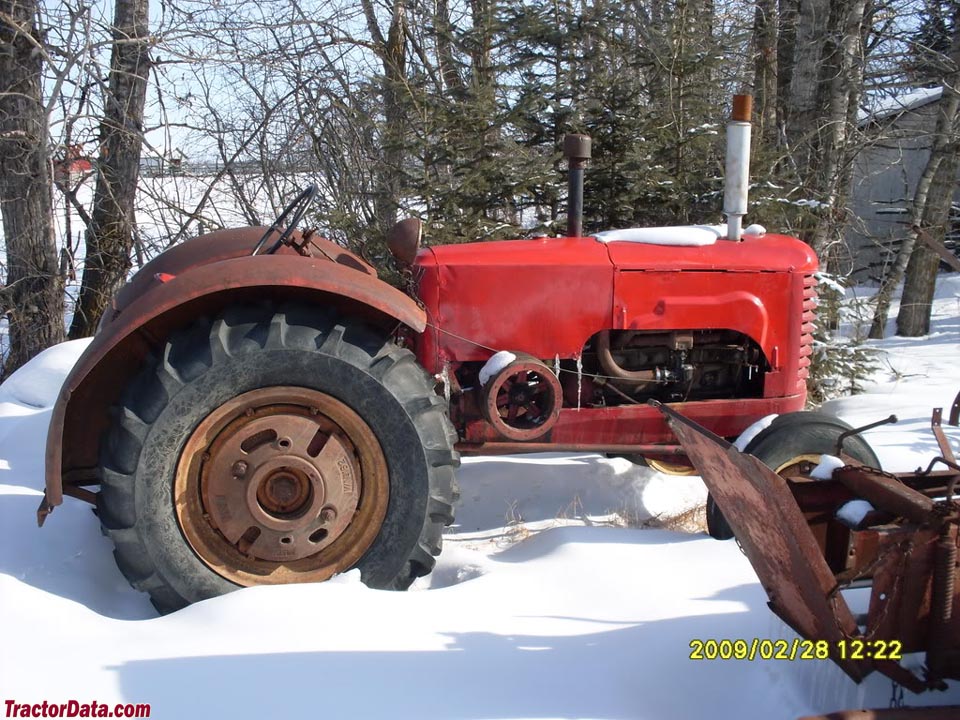

Massey-Harris 201
Massey-Harris 201 — 200 Series. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
3039 kg
Hover a source tag to verify
Overview
ManufacturerMassey-HarrisReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $1,750 in 1942Reference
Two-wheel driveReference
Manual steeringReference
Drum and shoe brakesReference
Open operator station.Reference
Variants
201Chrysler 4.1L gasReference
202Continental 4.8L gasReference
203Continental 5.4L distillateReference
203GContinental 5.4L gasReference
Engine
Chrysler 4.0L 6-cyl gasolineReference
Plows5Reference
ChryslerReference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke86 x 114 mmReference
Rated RPM1700Reference
Rated RPM2000 (Twin Power)Reference
Firing order1-5-3-6-2-4Reference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Weight3039 kgReference
Front tire7.50-18Reference
Rear tire13-28Reference
Ag front7.50-18Reference
Ag rear13-28Reference
Ag rear14.9-28Reference
201 Serial Numbers
194091201Reference
194191541Reference
194291691Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter34 cmReference
Width20 cmReference
RPM839Reference
Speed902.82 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
