Tractor · 1940Unverified
Massey-Harris 202
Massey-Harris 202 — 200 Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3039 kg
Hover a source tag to verify
Overview
ManufacturerMassey-HarrisReference
Standard-tread tractorReference
Built in Racine, Wisconsin, USAReference
Total built223Reference
Original price was $1,900 in 1942Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants

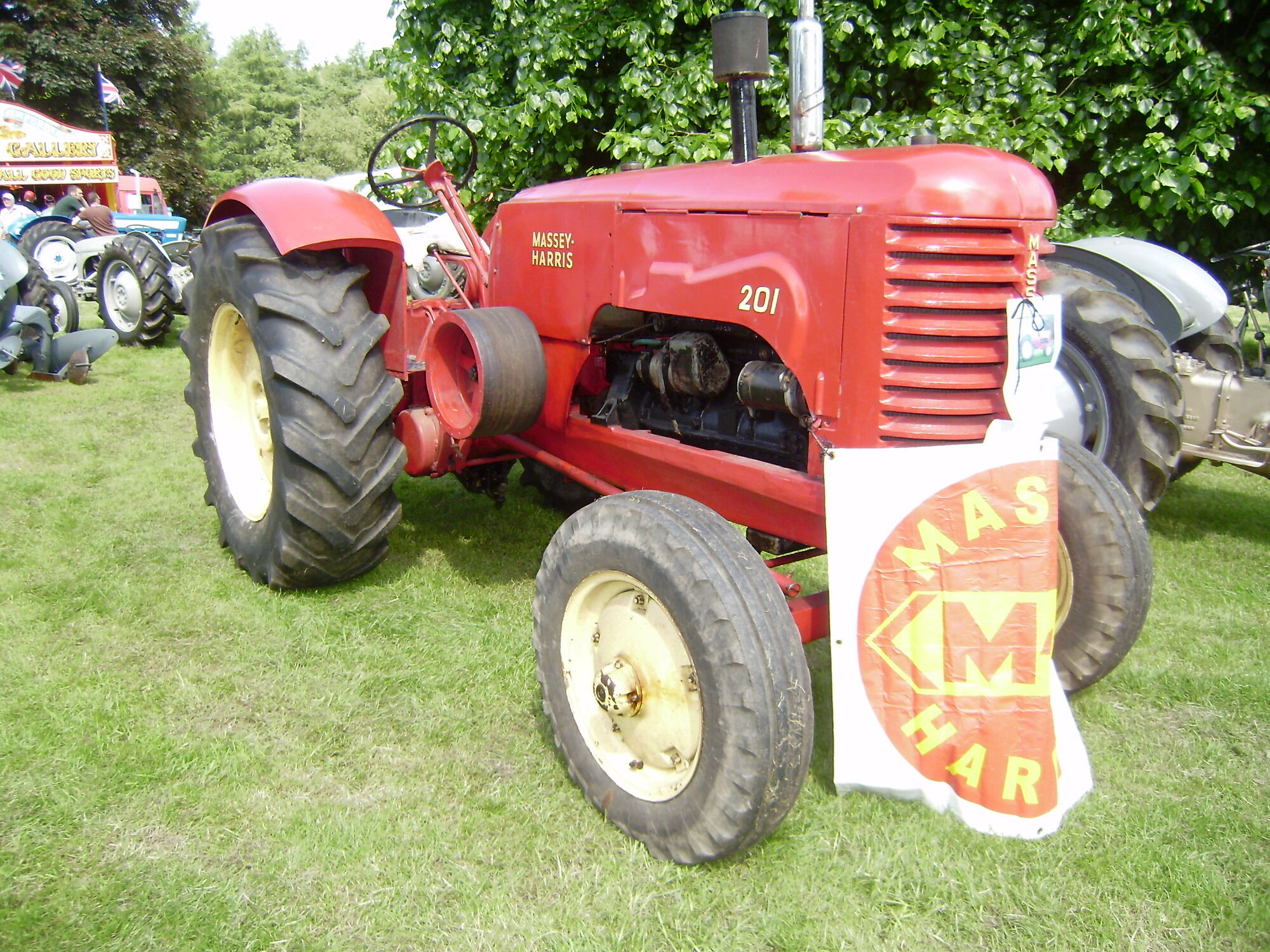

201Chrysler 4.1L gasReference
202Continental 4.8L gasReference
203Continental 5.4L distillateReference
203GContinental 5.4L gasReference
Engine
Continental 4.8L 6-cyl gasolineReference
Plows5Reference
Continental M292Reference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
PTO (claimed)27.6 kWReference
Rear PTO Type540Reference
Dimensions
Weight3039 kgReference
202 Serial Numbers
194095001Reference
194195002Reference
194295182Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter34 cmReference
Width20 cmReference
RPM839Reference
Speed902.82 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
