Tractor · 1948Unverified

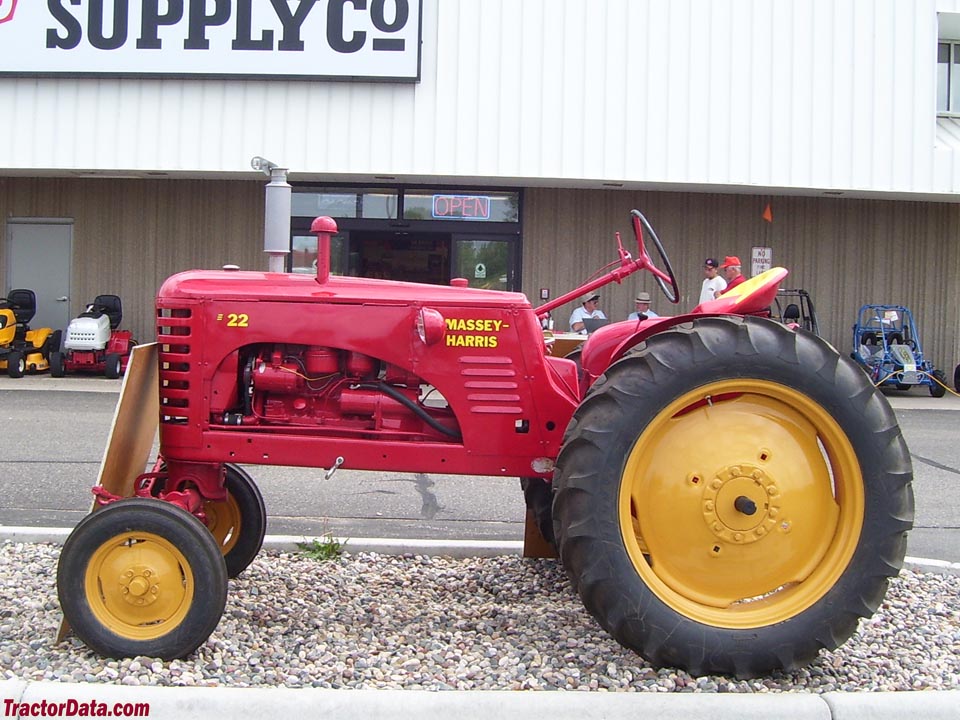

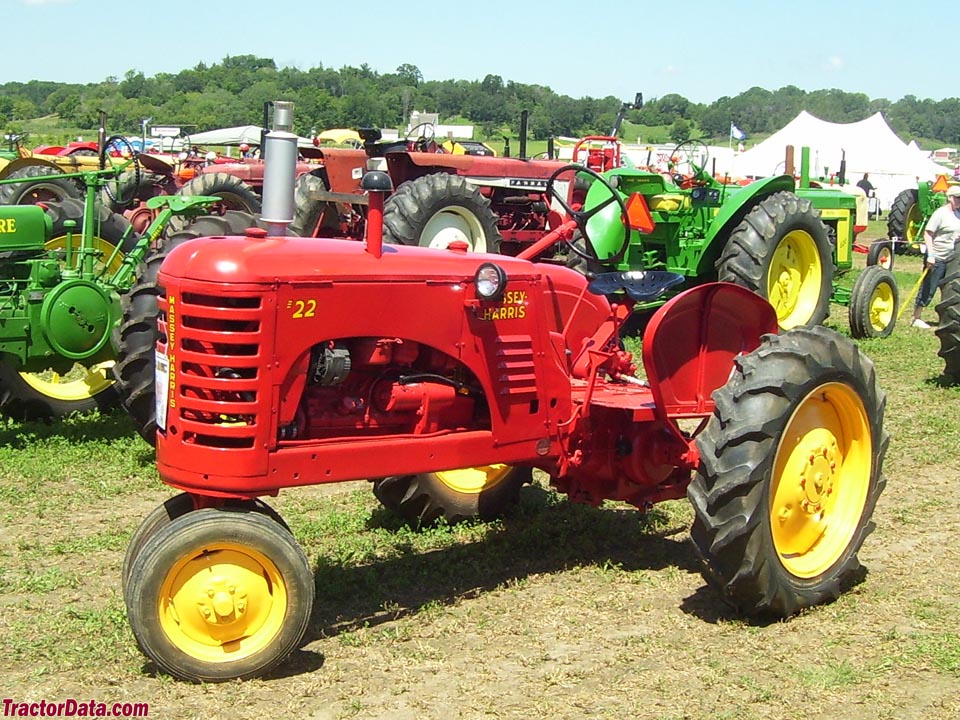

Massey-Harris 22
Massey-Harris 22 — Row-Crop tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Max power
17.1 kW
Weight
1328 kg
Hover a source tag to verify
Overview
ManufacturerMassey-HarrisReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $1,468 in 1953Reference
Two-wheel driveReference

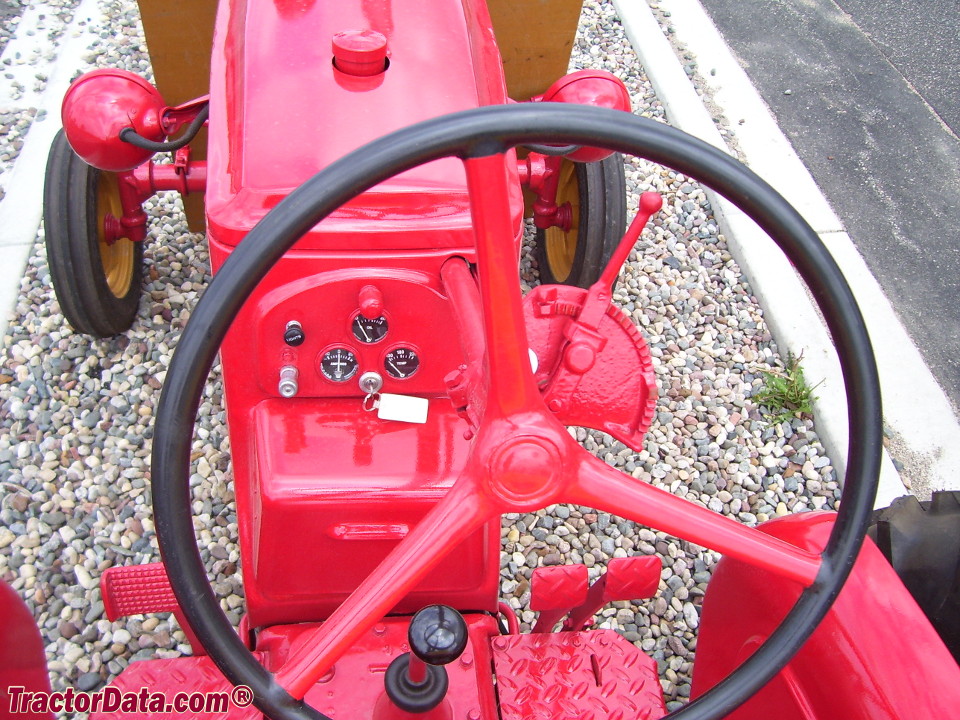

Manual steeringReference
Open operator station.Reference
Variants
22 RCrow-cropReference
22 STDstandard treadReference
Engine
Continental 2.3L 4-cyl gasolineReference
Drawbar (claimed)13.4 kWReference
Plows2Reference
Drawbar (tested)17.1 kWReference
Belt (tested)23.2 kWReference
ContinentalReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke81 x 111 mmReference
Rated RPM1500Reference
Oil capacity4.7 LReference
Coolant capacity10.4 LReference
Belt power (max)23.2 kWReference
Max power17.1 kWReference
Transmission
4-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Hydraulic system6.6 LReference
Capacity6.6 LReference
Pump flow28.4 lpmReference
Rear PTO Type540Reference
Engine RPM551@1500Reference
Capacities
Fuel49.2 LReference
Dimensions
Wheelbase209 cmReference
Weight1328 kgReference
Front tire4x15Reference
Rear tire9x32Reference
Ag front4x15Reference
Ag rear9x32Reference
Operating weight1328 kgReference
Ballasted weight2051 kgReference
Front tread16/31 cmReference
Rear tread121 to 223 cmReference
22 Serial Numbers
19481001Reference
19492096Reference
19504580Reference
19517624Reference
195210145Reference
195320046Reference
FAQ: How to read a serial number table.Reference
Test results
Gasoline 4-speed 2WDOctober 15 - 21, 1948Link: Nebraska Tractor Test 403 fileReference
Belt fuel use (max)10.6 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull1271 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
