Tractor · 1952Unverified

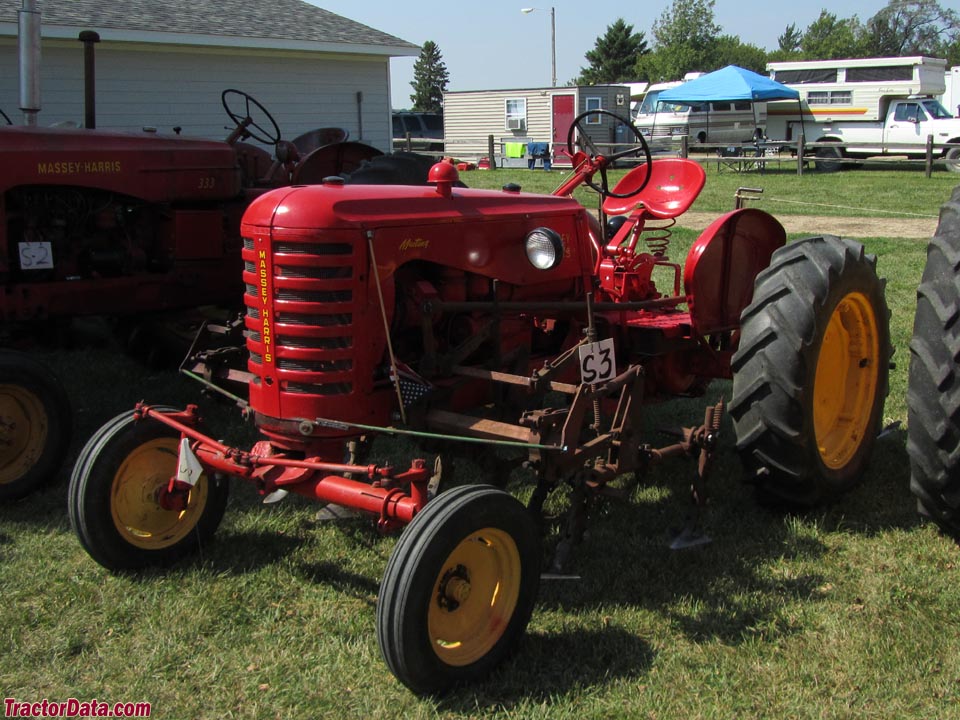

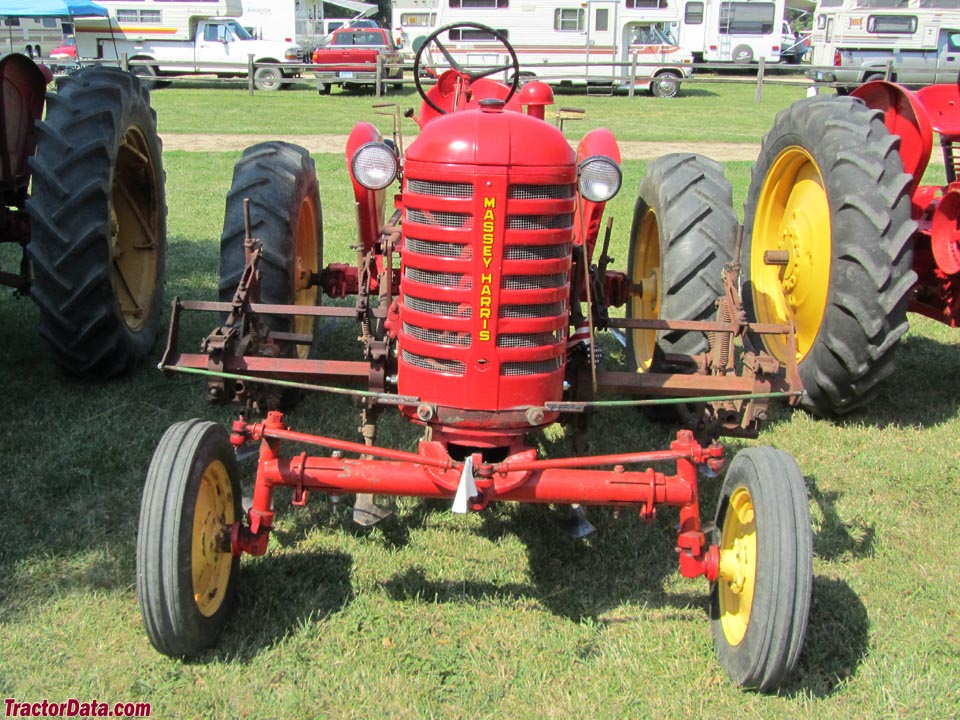

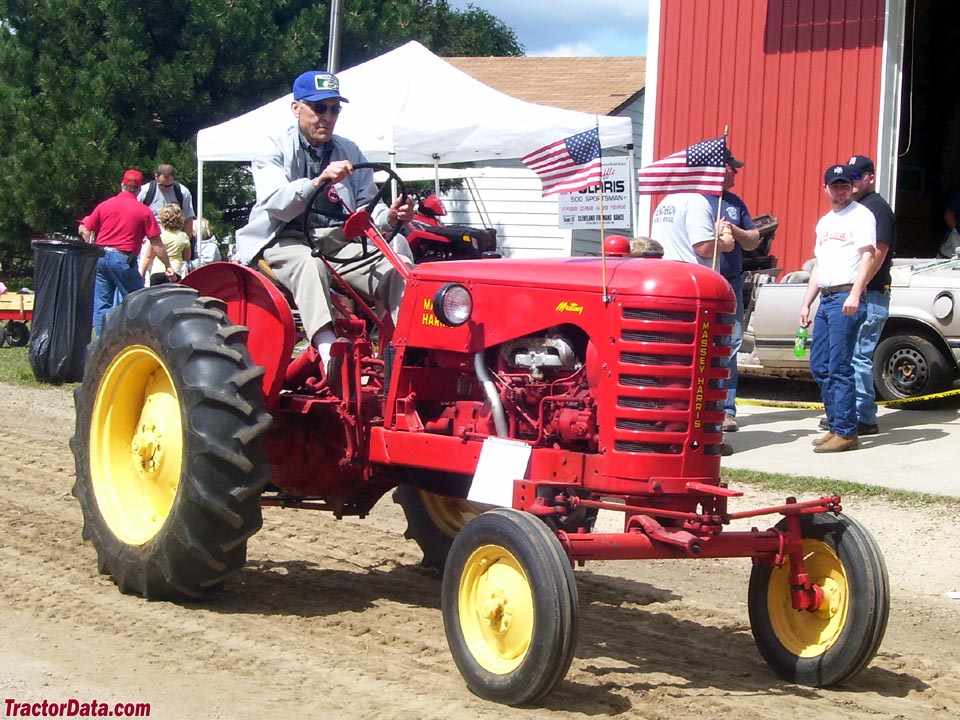

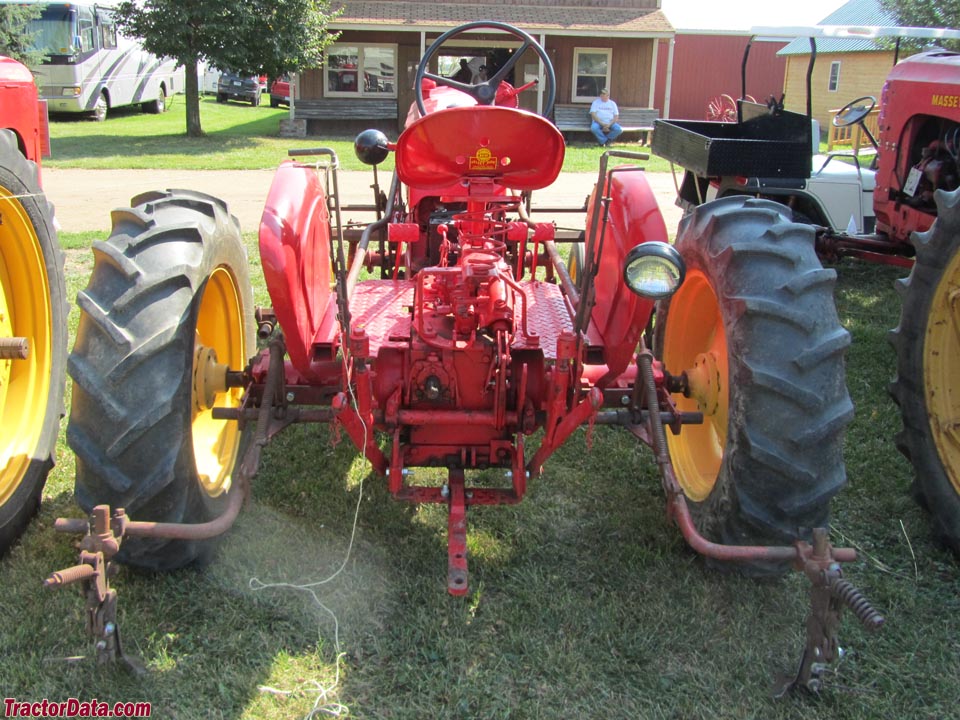

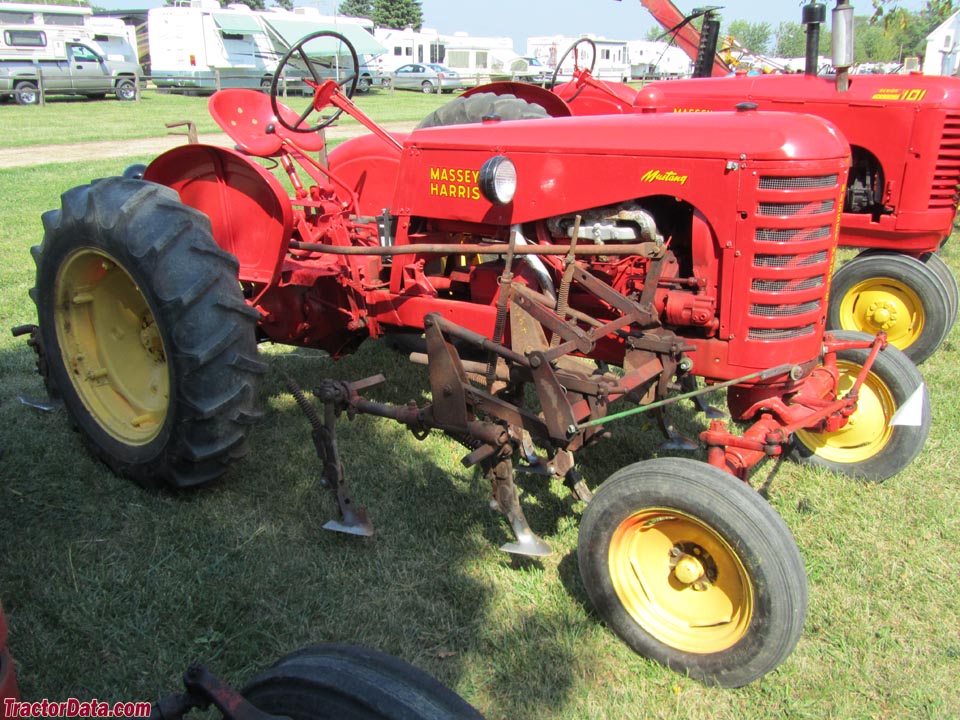

Massey-Harris 23 Mustang
Massey-Harris 23 Mustang — Row-Crop tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1328 kg
Hover a source tag to verify
Overview
ManufacturerMassey-Harris (a part of Massey Ferguson)Reference
Row-Crop tractorReference
The Marris-Harris model 23 Mustang replaced the model 22 in 1952. It featured new styling, but was mechanically similar.Reference
Two-wheel driveReference
Open operator station.Reference
Engine
Continential 2.3L 4-cyl gasolineReference
Fuel tank49.2 LReference
Plows2Reference
Continential F140Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke81 x 111 mmReference
Rated RPM1500Reference
Oil capacity4.7 LReference
Coolant capacity10.4 LReference
Transmission
4-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
Oil capacity7.6 LReference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Rear PTO Type540Reference
Dimensions
Wheelbase210 cmReference
Wheelbase193 cmReference
Wheelbase220 cmReference
Weight1328 kgReference
Front tire4.00-15Reference
Rear tire11-28Reference
Ag front4.00-15Reference
Ag rear11-28Reference
Ag rear12-28Reference
Width180 cmReference
Width236 cmReference
Operating weight1328 kgReference
Ballasted weight2051 kgReference
23 Mustang Serial Numbers
19521001Reference
19531666Reference
19544346Reference
19554553Reference
19564773Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemgeneratorReference
Massey-Harris 23 Mustang Height
148 cmReference
152 cmReference
143 cmReference
152 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
