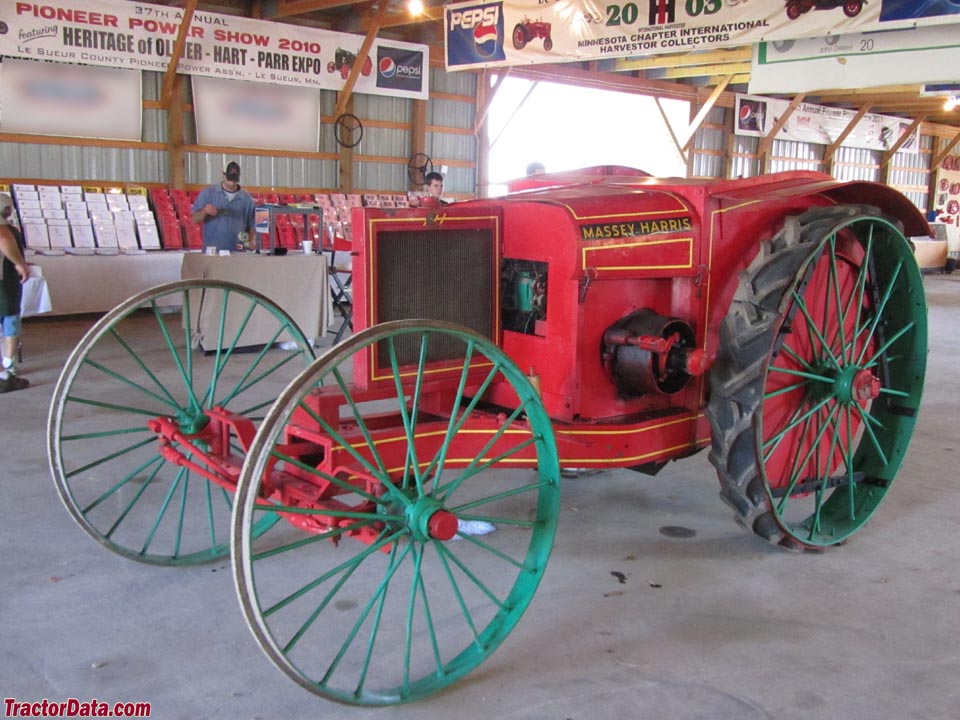

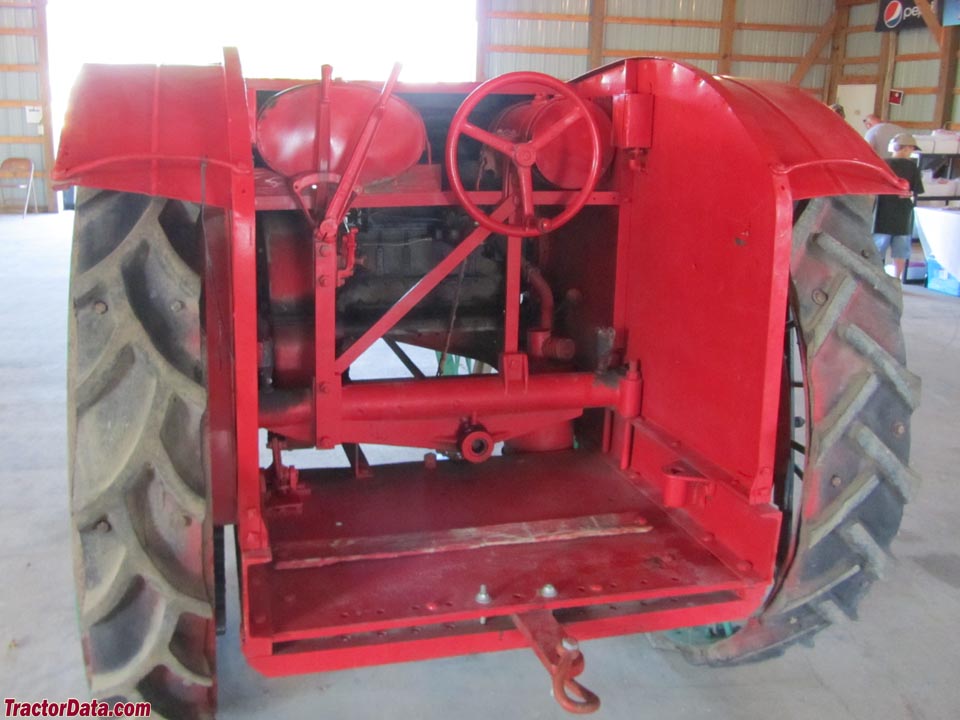

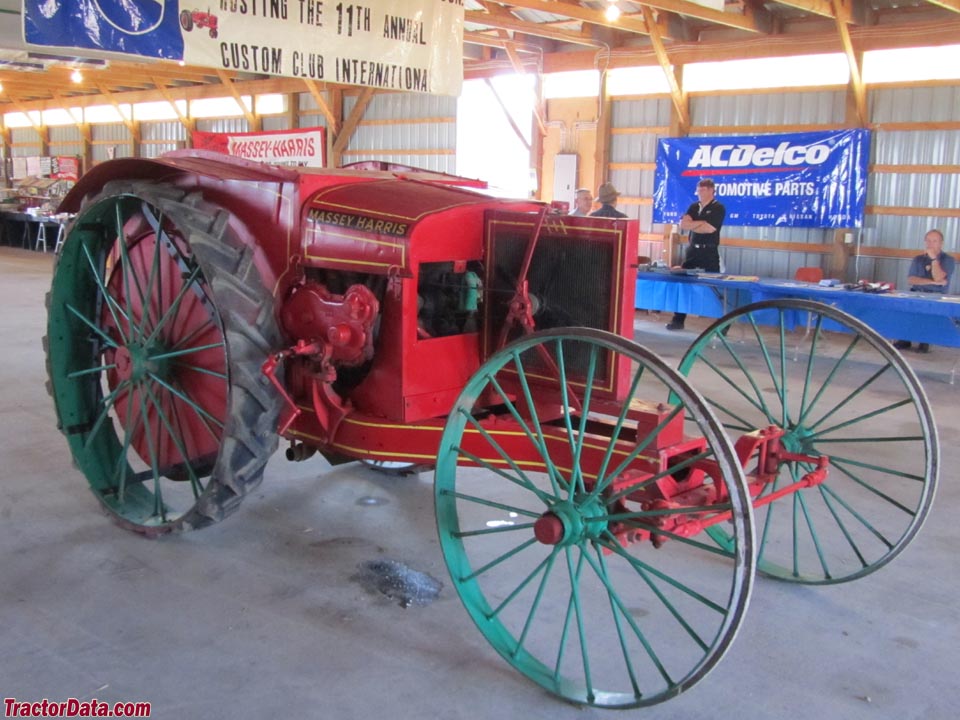

The Massey-Harris No. 2 12-22 is a compact tractor with a rated output of 12 horsepower. It was manufactured between 1920 and 1922 and is powered by a 4-cylinder petrol liquid-cooled engine, which drives through a two-wheel drive system with a 2-speed gearbox. The tractor weighs 2449 kilograms and is suitable for small-scale operations covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
2449 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
12 hp
Recorded weight
2449 kg
Transmissions
2-speed gear
Production years
1920-1922
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMassey-HarrisReference
Standard-tread tractorReference
Built in Weston, Ontario, CanadaReference
The Massey-Harris No. 2 12-22 was based on a tractor design licensed from Parrett.Reference
Two-wheel driveReference
Final drivesspur gearReference
SteeringmanualReference
Open operator station.Reference
Engine
Buda 5.1L 4-cyl gasolineReference
Drawbar (claimed)8.9 kWReference
Belt (claimed)16.4 kWReference
Plows3 (14-inch)Reference
Buda HTUReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke108 x 140 mmReference
Rated RPM1000Reference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight2449 kgReference
Length368 cmReference
Width193 cmReference
Height172 cmReference
No. 2 12-22 Serial Number Location
Inside right rear tractor fender.Reference
Capacities
Diameter30 cmReference
Width17 cmReference
RPM1000Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
