Tractor · 1922Unverified

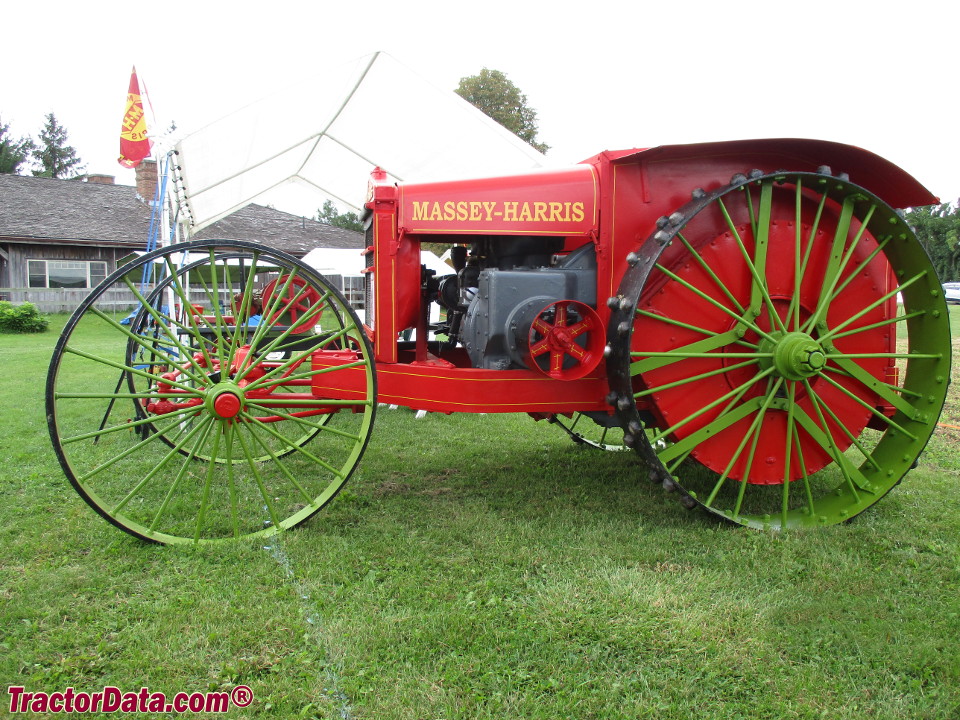

Massey-Harris No. 3 15-28

Name: Massey-Harris No. 3 15-28
Brand: Massey-Harris

Massey-Harris No. 3 15-28 — Standard-tread tractor · 15 hp. Reference specifications; pending source verification.

The Massey-Harris No. 3 15-28 is a compact tractor, rated at 15 horsepower. It was produced from 1922 to 1923. The tractor features a 4-cylinder, petrol, liquid-cooled engine, driving through two-wheel drive with a 2-speed gearbox, with a listed weight of 2630 kg. It is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

15 hp

Weight

2630 kg

Catalogue coverage

Variants represented

Richest spec table

30 rows

Recorded power

15 hp

Recorded weight

2630 kg

Transmissions

2-speed gear

Production years

1922-1923

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMassey-HarrisReference

Standard-tread tractorReference

Built in Weston, Ontario, CanadaReference

The Massey-Harris No. 3 15-28 was based on a tractor design licensed from Parrett.Reference

Two-wheel driveReference

Final drivesspur gearReference

SteeringmanualReference

Open operator station.Reference

Engine

Waukesha 6.5L 4-cyl gasolineReference

Drawbar (claimed)11.2 kWReference

Belt (claimed)20.9 kWReference

Plows3 (14-inch)Reference

Waukesha DU-10AReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement6.5 LReference

Bore/Stroke114 x 159 mmReference

Rated RPM1000Reference

Transmission

2-speed gearReference

TypegearReference

Gears2 forward and 1 reverseReference

Dimensions

Weight2630 kgReference

Length368 cmReference

Width193 cmReference

Height172 cmReference

No. 3 15-28 Serial Numbers

Location:Inside right rear tractor fender.Reference

Capacities

Diameter30 cmReference

Width17 cmReference

RPM1000Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
