Tractor · 1929Unverified

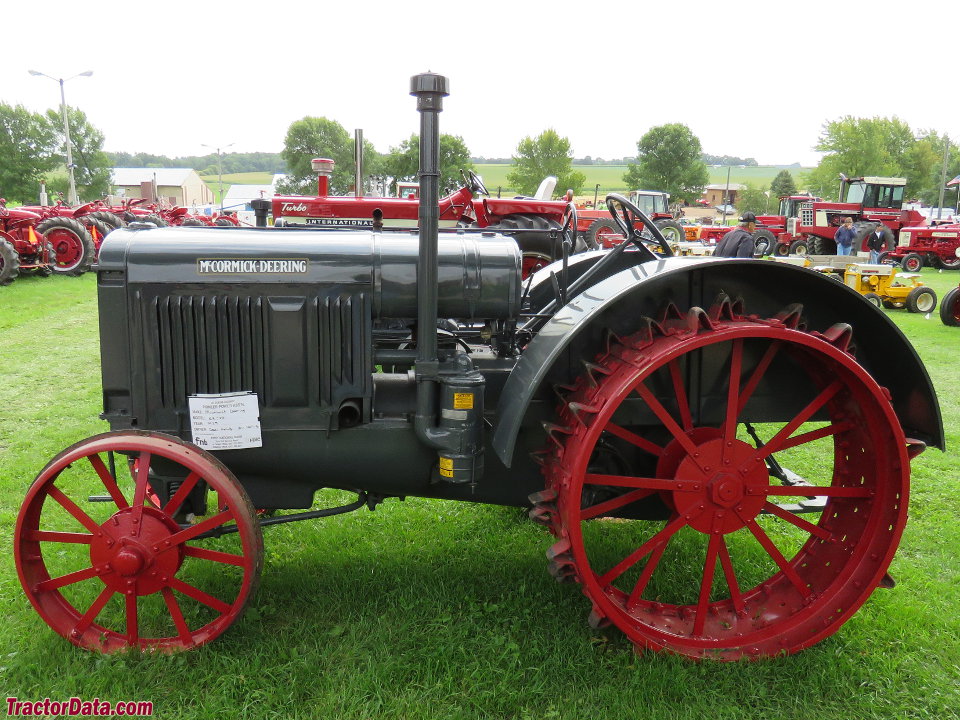

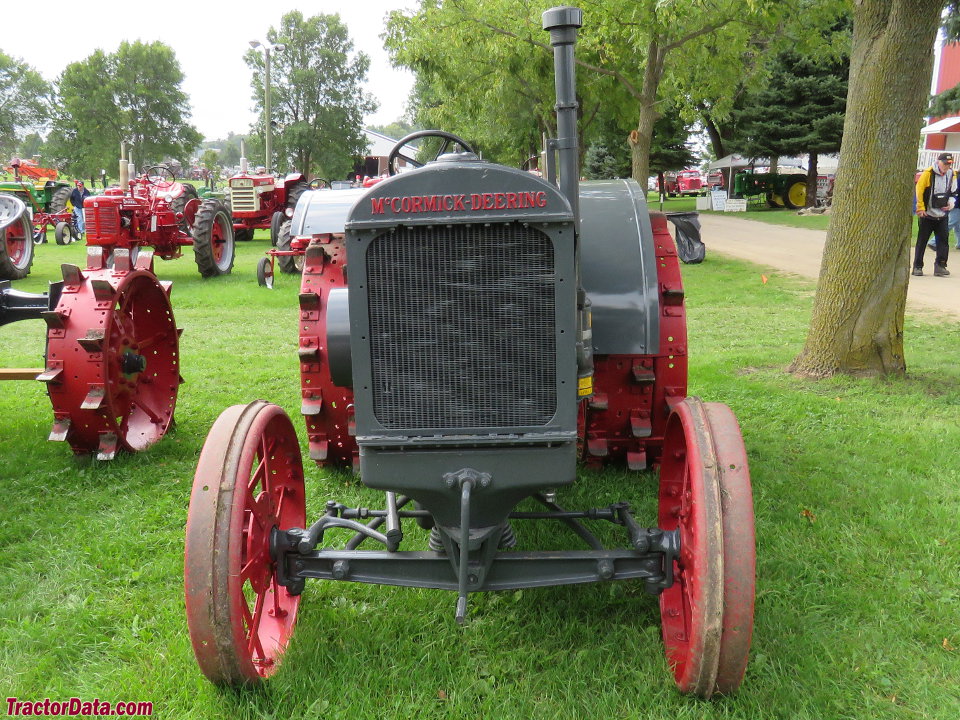

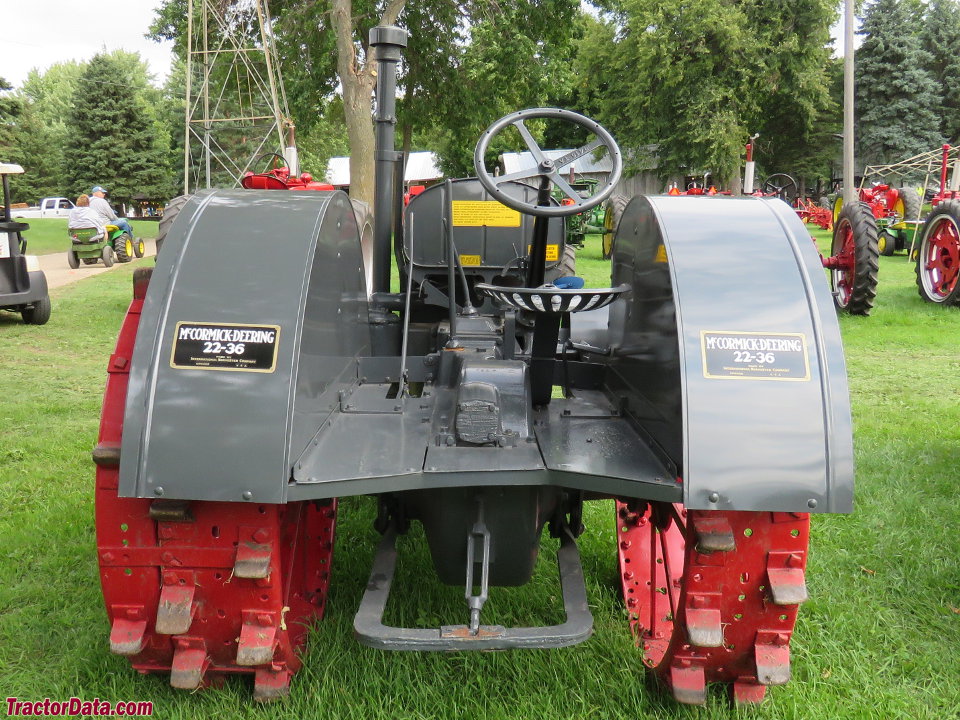

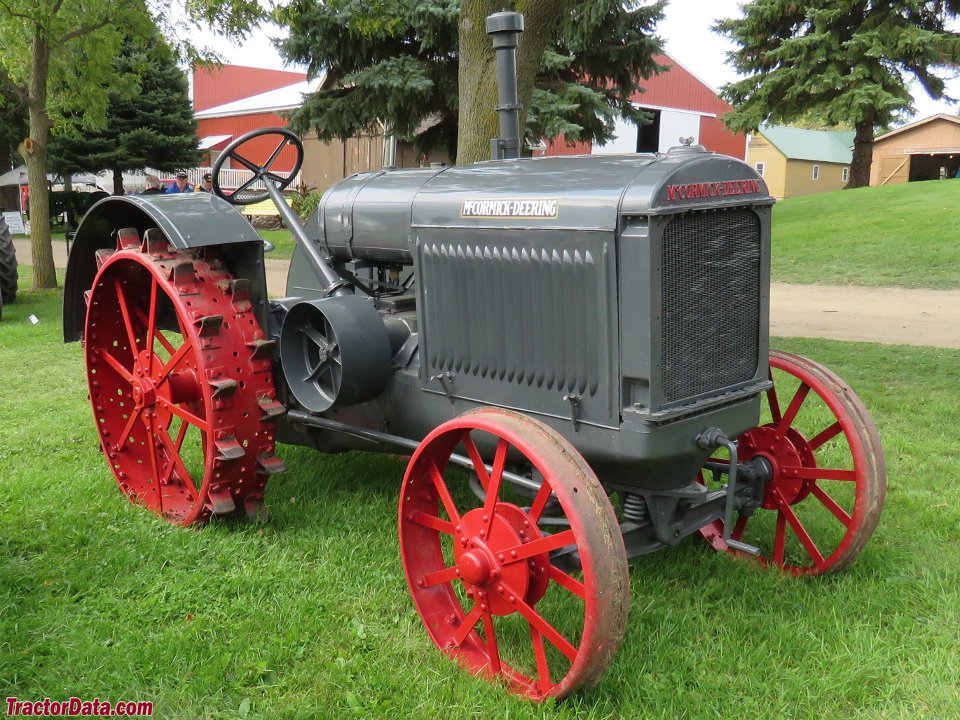

McCormick-Deering 22-36
McCormick-Deering 22-36 — Standard-tread tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Max power
22.4 kW
Weight
2948 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Standard-tread tractorReference
Built in Milwaukee, Wisconsin, USAReference
Total built57,464Reference
Two-wheel driveReference
Manual steeringReference

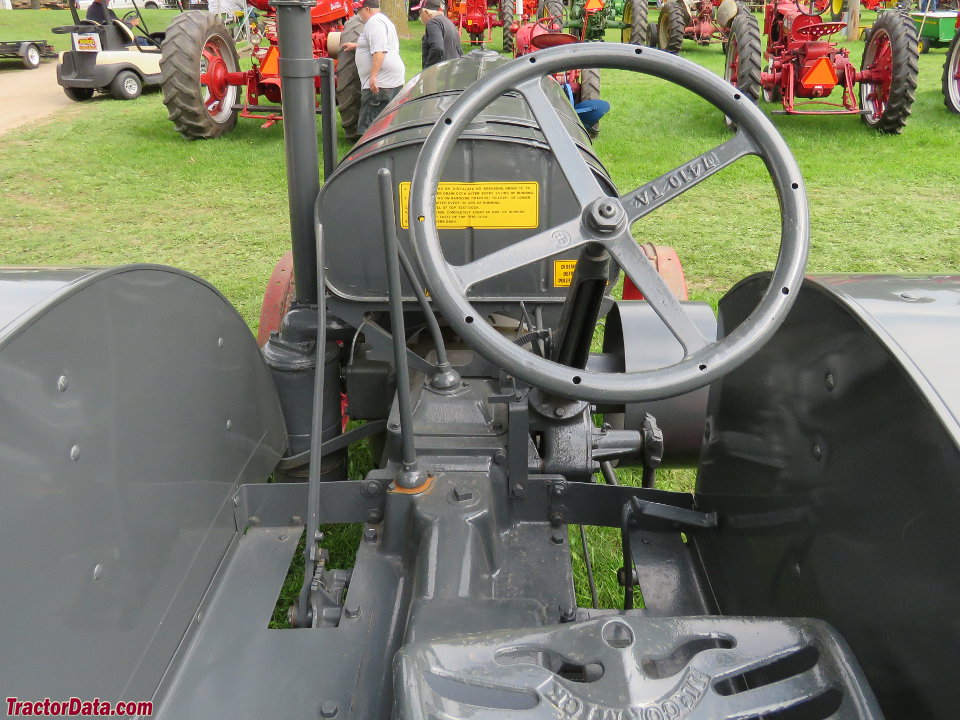

Open operator station.Reference
Engine
International Harvester 7.0L 4-cyl keroseneReference
Fuel tank71.9 LReference
Aux. fuel2.8 LReference
Drawbar (tested)22.4 kWReference
Belt (tested)30.3 kWReference
International HarvesterReference
keroseneReference
4-cylinderReference
liquid-cooled vertical, valve-in-headReference
Displacement7.0 LReference
Bore/Stroke121 x 152 mmReference
Rated RPM1050Reference
Oil capacity9.9 LReference
Coolant capacity43.5 LReference
Belt power (max)30.3 kWReference
Max power22.4 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight2948 kgReference
Front tire34x6Reference
Rear tire50x12Reference
Ag front34x6 (steel)Reference
Ag rear50x12 (steel)Reference
Ag front7.50-16Reference
Ag front7.50-18Reference
Ag rear12.75-28Reference
Ag rear13.50-24Reference
Length347 cmReference
Width165 cmReference
Height177 cmReference
22-36 Serial Numbers
1928TG99926Reference
1929TG102045Reference
1930TG134543Reference
1931TG152695Reference
1932TG155109Reference
1934156301Reference
Final157477Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter42 cmReference
Width22 cmReference
RPM593Reference
Test results
Kerosene March 30 - April 9, 1929Link: Nebraska Tractor Test 156 fileReference
Belt fuel use (max)15.5 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
