Tractor · 1957Unverified

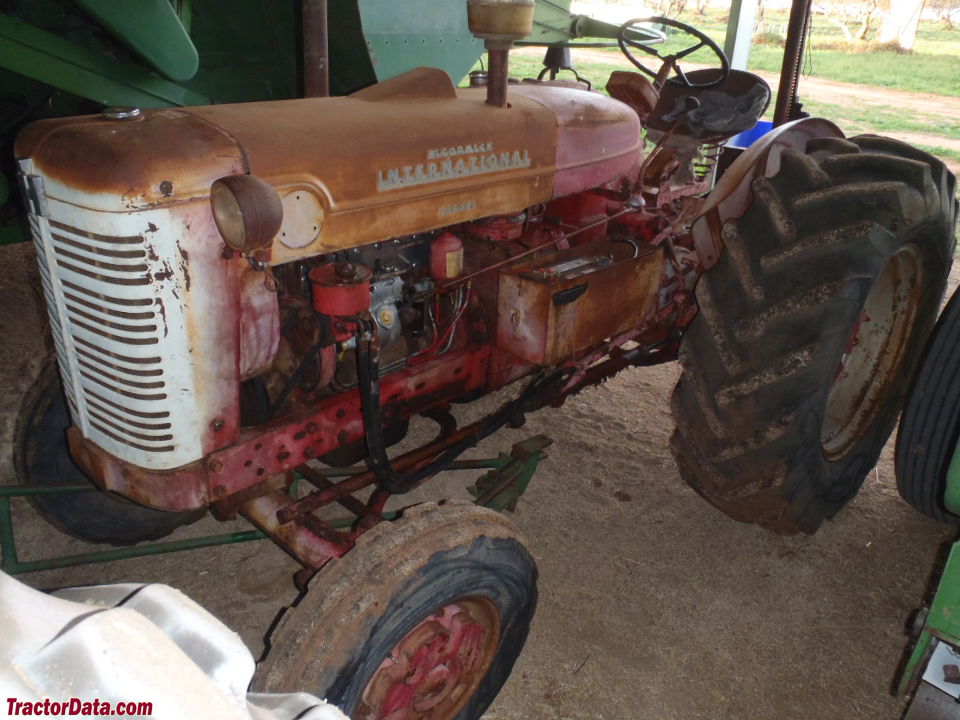

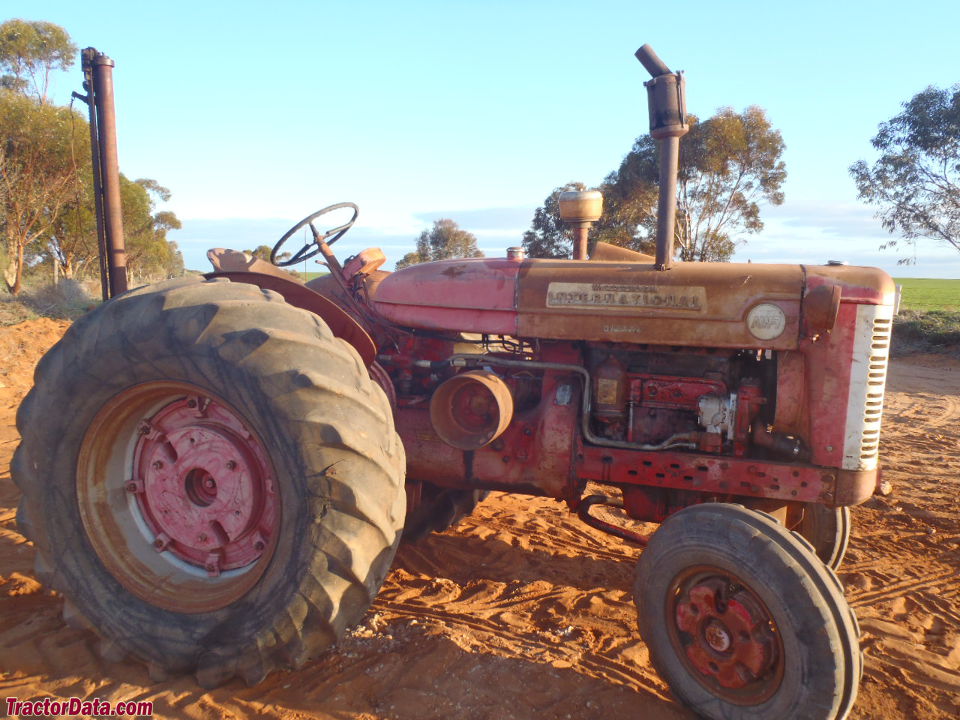

McCormick-Deering AW-7
McCormick-Deering AW-7 — Standard-tread tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
7735 to 8540 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Standard-tread tractorReference
Built in Geelong, AustraliaReference
The AW-7 models were a unique Australian evolution of the earlier AW-6 models. The AW-7 was the standard tread version of the Farmall AM-7 and a cousin to the US-built International W-400 and British-built McCormick International B-450. There were two models, the AW-7 diesel and AW-7 kerosene. The AW-7 diesel was sometimes called the "AWD-7", although this was not the official name.Reference
Two-wheel driveReference
Steeringpower assisted, enclosed worm and gearReference
Open operator station.Reference
Variants
AM-7row-cropReference
AWD-7diesel engineReference
Engine
International Harvester 4.3L 4-cyl dieselReference
International Harvester 4.3L 4-cyl keroseneReference
Drawbar (claimed)33.3 kWReference
Belt (claimed)36.4 kWReference
International Harvester AD-264Reference
dieselReference
4-cylinderReference
liquid-cooledReference
The AW-7 diesel engine used an electric glow-blub pre-heat system.Reference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Compression16.5:1Reference
Rated RPM1450Reference
Starter volts12Reference
International Harvester AC-264Reference
keroseneReference
StarterelectricReference
Starter volts6Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Pressure82.7 barReference
Pump flow37.9 lpmReference
Rear TypeIIReference
Rear PTO Type540 (1375)Reference
Dimensions
Wheelbase194 cmReference
Weight7735 to 8540 poundsReference
Front tire7.50x16Reference
Rear tire14.00x30Reference
Ag front7.50x16Reference
Ag rear14.00x30Reference
Length317 cmReference
Width200 cmReference
Kerosene Weight3508 kgReference
Diesel Weight3873 kgReference
AW-7 Serial Numbers
19578901 (kerosene)Reference
1957-Final8966 (kerosene)Reference
1958706 (kerosene)Reference
19591633 (kerosene)Reference
19602975 (kerosene)Reference
Final4941 (kerosene)Reference
19571067 (diesel)Reference
1958-Final1604 (diesel)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM899Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
