Tractor · 1957Unverified

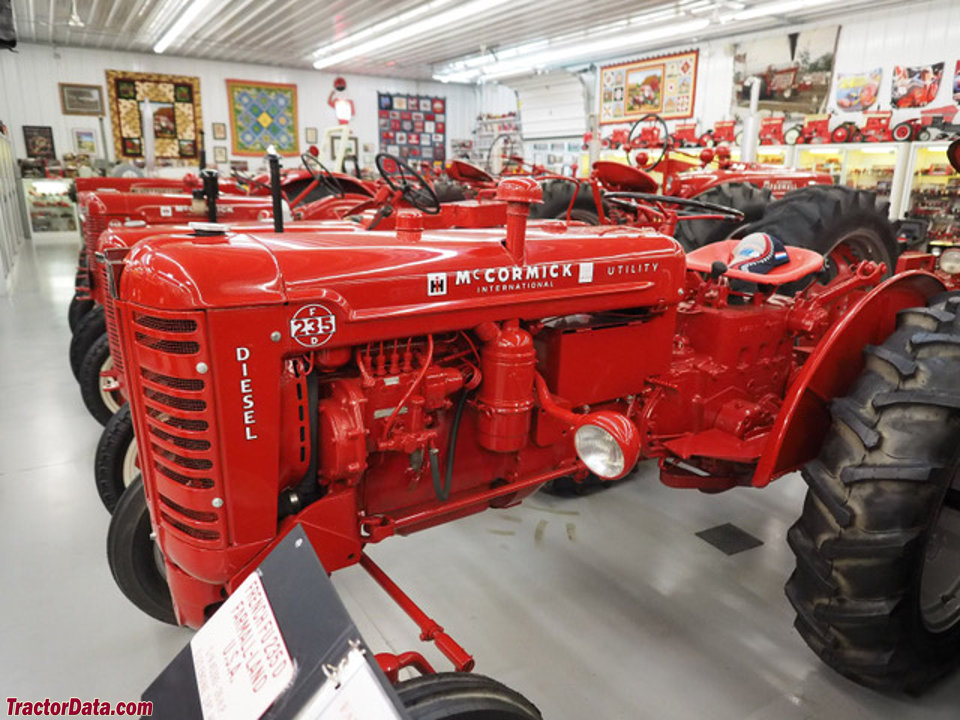

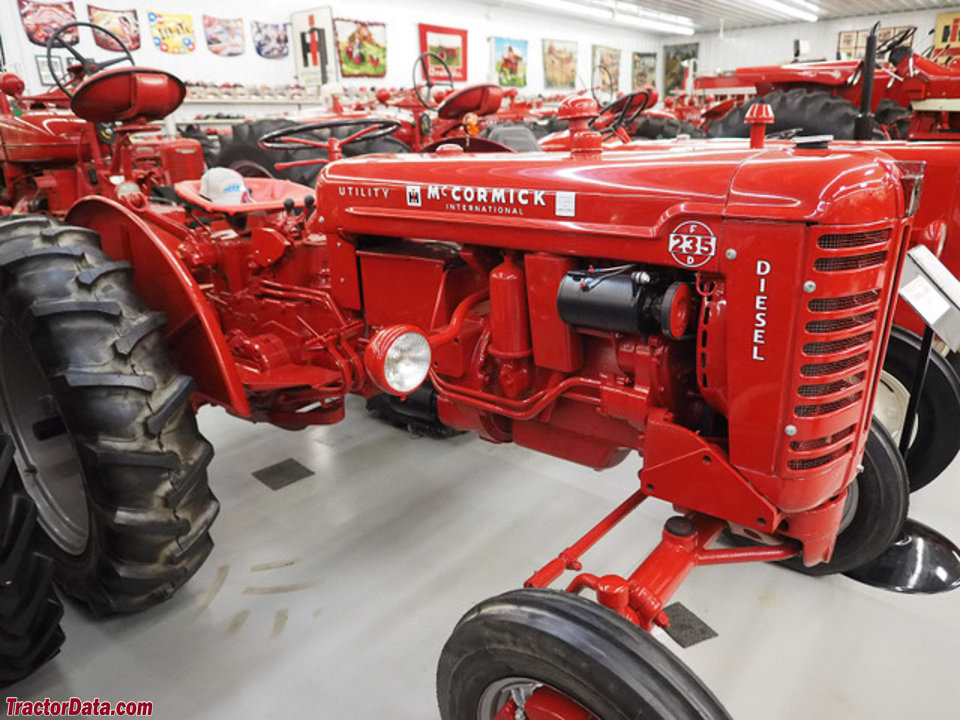

McCormick-Deering FU235

Name: McCormick-Deering FU235
Brand: McCormick-Deering

McCormick-Deering FU235 — Utility tractor · 26 hp. Reference specifications; pending source verification.

The McCormick-Deering FU235 is a compact tractor with a rated output of 26 hp. It was manufactured between 1957 and 1959. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, coupled to a 4-speed gearbox for two-wheel drive. Its listed weight is 3483 to 3571 pounds, suitable for working on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

3483 to 3571 pounds

Catalogue coverage

Variants represented

Richest spec table

42 rows

Recorded power

26 hp

Recorded weight

1579 kg

Transmissions

4-speed gear

Production years

1957-1959

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick-Deering (a part of International Harvester)Reference

Utility tractorReference

Built in Saint Dizier, FranceReference

Two-wheel driveReference

Open operator station.Reference

Variants

FU-235gas utilityReference

FU-235Ddiesel utilityReference

F-235row-cropReference

FV-235orchardReference

Engine

International Harvester 2.0L 4-cyl gasolineReference

International Harvester 2.0L 4-cyl dieselReference

Fuel tank37.9 LReference

Engine19.4 kWReference

International Harvester FC-123Reference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke79 x 102 mmReference

Power19.4 kWReference

Rated RPM1650Reference

Starter typeelectricReference

Oil capacity4.7 LReference

International Harvester FD-123Reference

dieselReference

Transmission

4-speed gearReference

TypegearReference

Gears4 forward and 1 reverseReference

Oil capacity18.0 LReference

Dimensions

Weight3483 to 3571 poundsReference

Front tire5.00-15Reference

Rear tire10-28Reference

Ag front5.00-15Reference

Ag rear10-28Reference

Length265 cmReference

Width173 cmReference

Height (steering wheel)141 cmReference

Gas Weight1579 kgReference

Diesel Weight1619 kgReference

Ground clearance51 cmReference

Front tread124 to 191 cmReference

Rear tread113 to 179 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
