Tractor · 1961Unverified

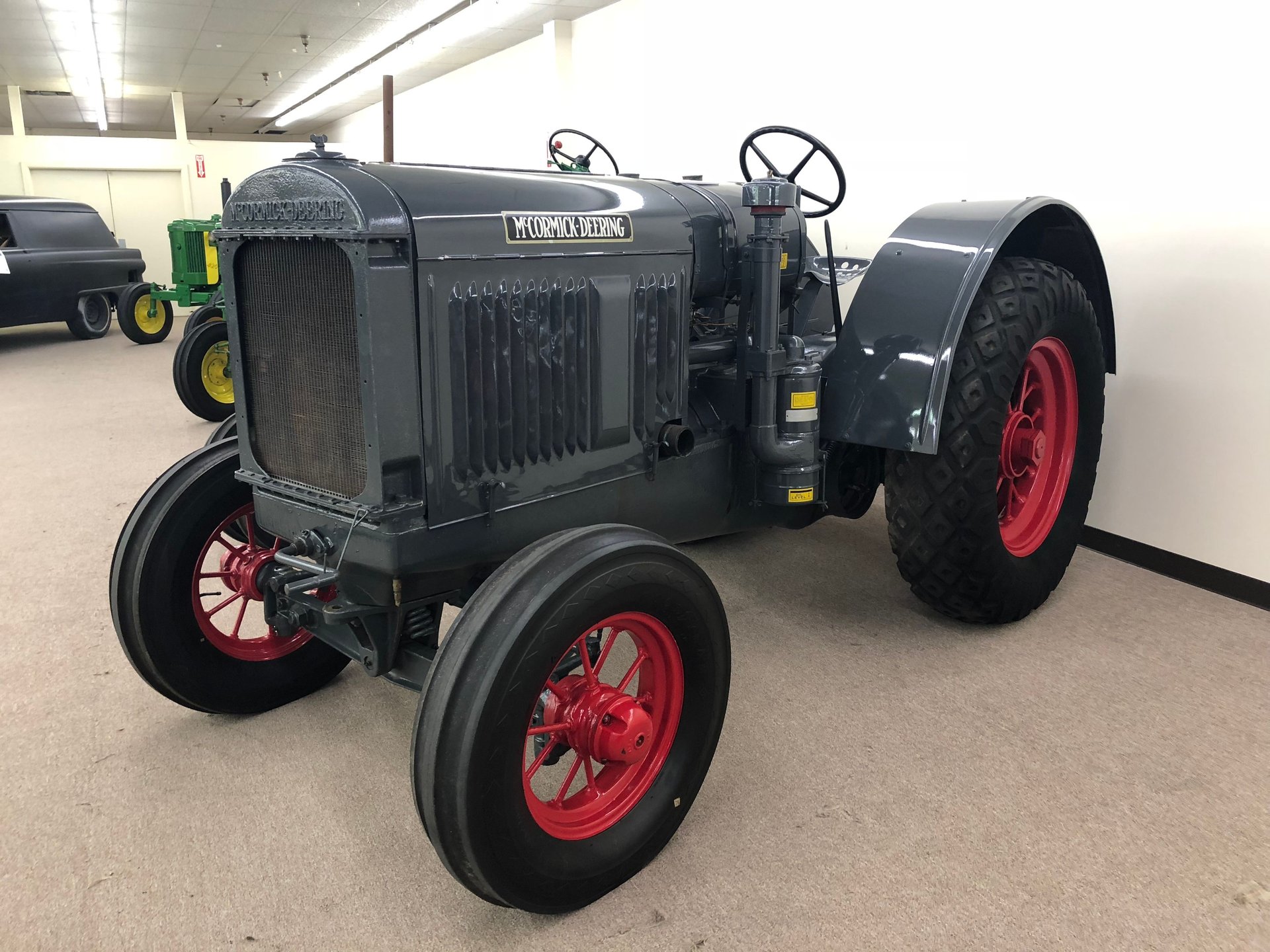

McCormick-Deering FU237
McCormick-Deering FU237 — Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1394 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Utility tractorReference
Built in Saint Dizier, FranceReference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
International Harvester 2.1L 4-cyl dieselReference
Fuel tank43.1 LReference
Engine22.4 kWReference
International Harvester FD 128Reference
dieselReference
4-cylinderReference
lqiuid-cooledReference
Displacement2.1 LReference
Bore/Stroke81 x 102 mmReference
Power22.4 kWReference
Fuel systemindirect injectionReference
Rated RPM1800Reference
Starter typeelectricReference
Oil capacity7.0 LReference
Coolant capacity12.3 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
Oil capacity13.5 LReference
PTO & Hydraulics
Rear PTO Type540/1000Reference
Dimensions
Wheelbase178 cmReference
Weight1394 kgReference
Front tire4.50x16Reference
Rear tire10x28Reference
Ag front4.50x16Reference
Ag rear10x28Reference
Length293 cmReference
Width171 cmReference
Height153 cmReference
Front tread128 to 193 cmReference
Rear tread130 to 177 cmReference
Speeds
With 10x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
