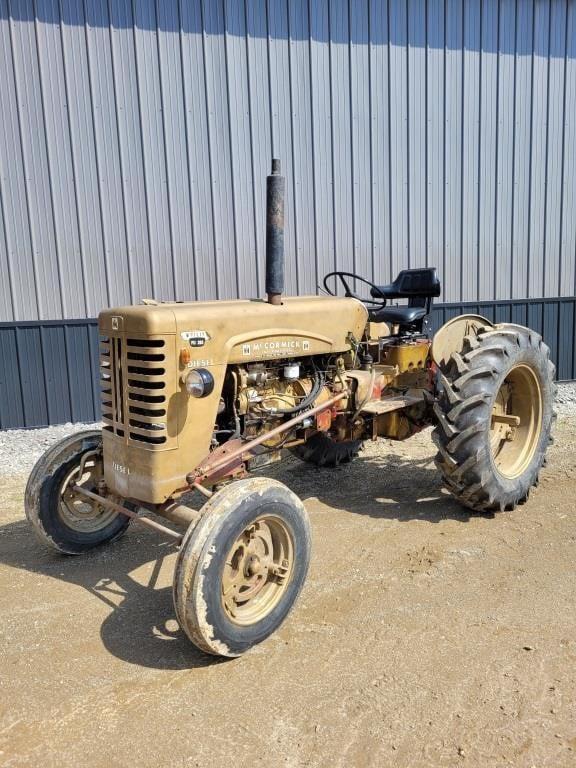

The McCormick-Deering FU265 is a tractor with an approximate power output of 35 hp, positioning it at the lower end of its class. It was produced from 1959 to 1961 and features a 4-cylinder diesel liquid-cooled engine, combined with two-wheel drive and a 6-speed gearbox. The tractor has a listed operating weight of 1819 kg, and its suitable operating area is up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1819 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded power
35 hp
Recorded weight
1819 kg
Transmissions
6-speed gear
Production years
1959-1961
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Utility tractorReference
Built in Saint Dizier, FranceReference
Two-wheel driveReference
Differential lockmechanical rearReference
Open operator station.Reference
Engine
International Harvester 2.2L 4-cyl dieselReference
Engine26.1 kWReference
International Harvester FD-136Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 102 mmReference
Power26.1 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.8 LReference
Coolant capacity12.3 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
Capacities
Fuel43.1 LReference
PTO & Hydraulics
Hydraulic system12.5 LReference
Capacity12.5 LReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2000Reference
Dimensions
Weight1819 kgReference
Front tire6.00-16Reference
Rear tire11-28Reference
Ag front6.00-16Reference
Ag rear11-28Reference
Ag rear12-28Reference
Length295 cmReference
Width208 cmReference
Height166 cmReference
Operating weight1819 kgReference
Ground clearance35 cmReference
Front tread128 to 192 cmReference
Rear tread130 to 207 cmReference
Speeds
With 11-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
