Tractor · 1947Unverified

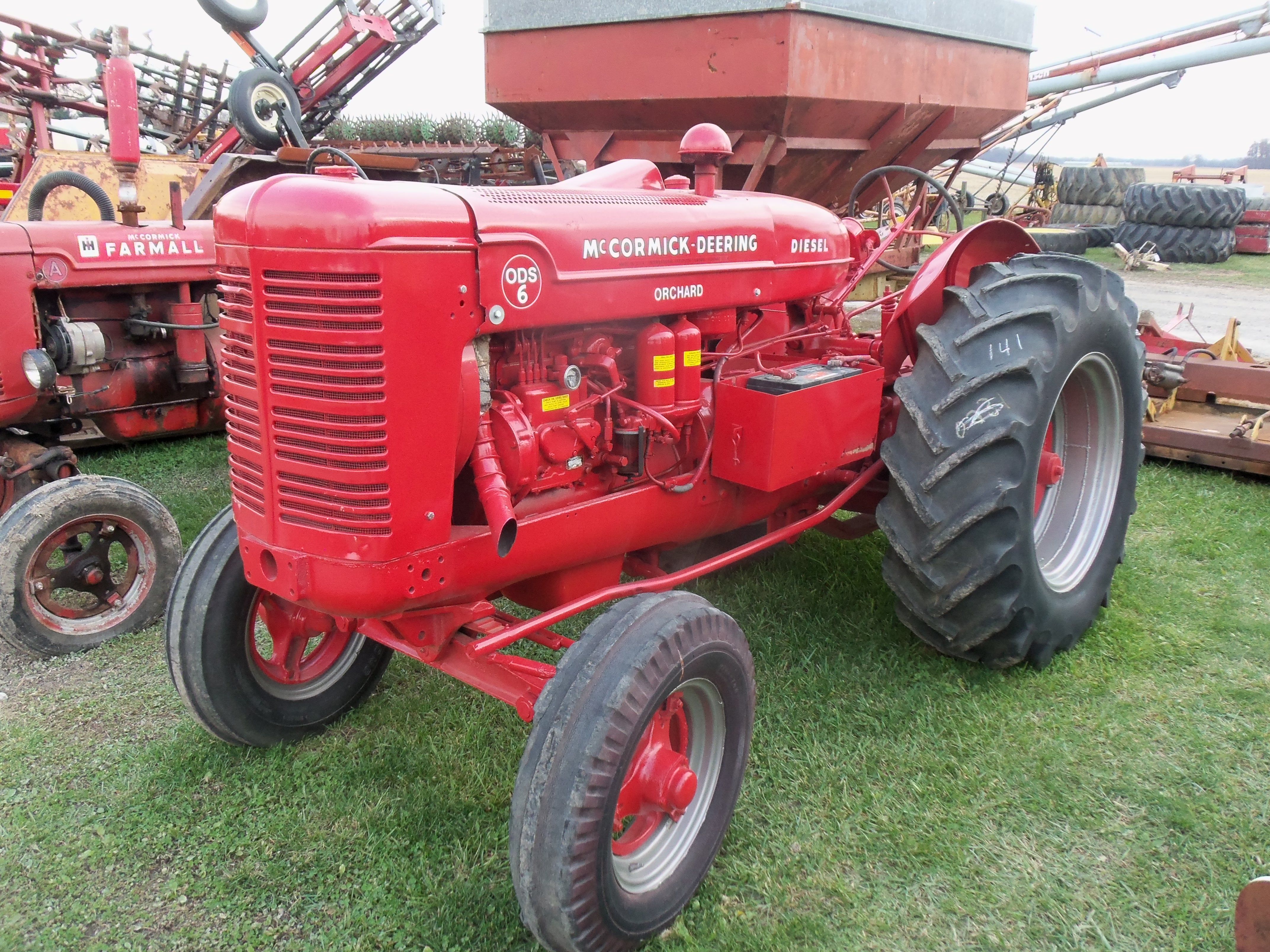

McCormick-Deering ODS-6
McCormick-Deering ODS-6 — Orchard/Vineyard tractor · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
2442 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Orchard/Vineyard tractorReference
Built in Rock Island, Illinois, USAReference
Total built522Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
W-6standardReference
O-6orchardReference
OS-6orchard without full sheet metalReference
ODS-6diesel OS-6Reference
I-6industrialReference
ID-6diesel industrialReference
Engine
International Harvester 4.1L 4-cyl dieselReference
Fuel tank77.6 LReference
Aux. fuel3.3 LReference
Drawbar (claimed)23.5 kWReference
Belt (claimed)26.8 kWReference
International HarvesterReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke98 x 133 mmReference
Rated RPM1450Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase193 cmReference
Weight2442 kgReference
Front tire6.00-16Reference
Rear tire13-26Reference
Ag front6.00-16Reference
Ag rear13-26Reference
Length338 cmReference
Width151 cmReference
Height156 cmReference
Clearance (front axle)40 cmReference
Front tread118 cmReference
Rear tread114 cmReference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM899Reference
Speed788.82 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
