Tractor · 1954Unverified

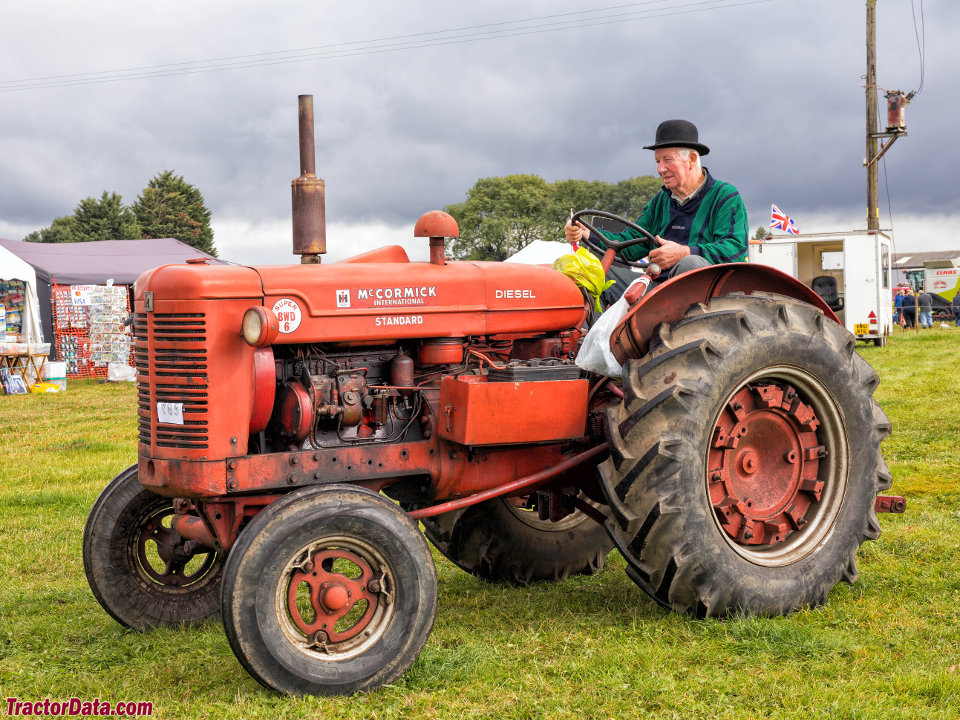

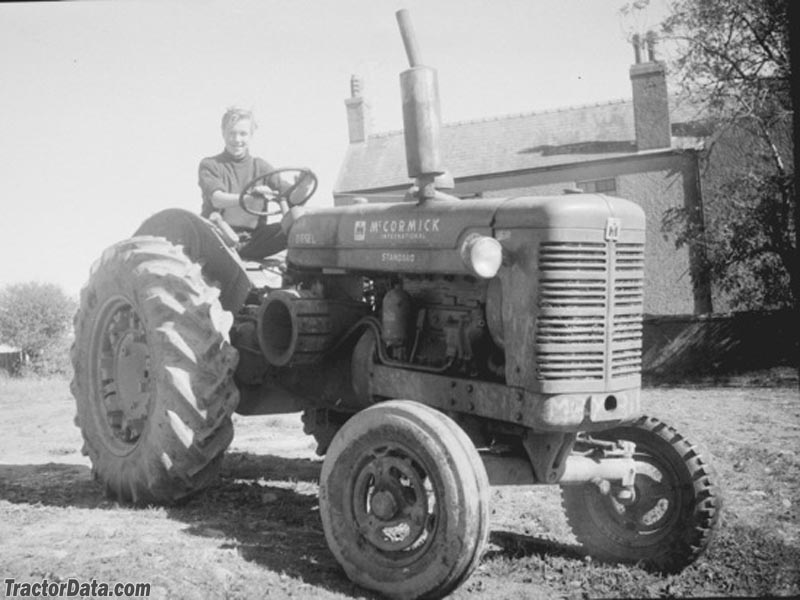

McCormick-Deering Super BWD-6
McCormick-Deering Super BWD-6 — Standard-tread tractor · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Standard-tread tractorReference
Built in Doncaster, EnglandReference
Total built5,531Reference
Two-wheel driveReference
SteeringmechanicalReference
Open operator station.Reference
Variants
Super BW-6gasoline engineReference
Engine
International Harvester 4.3L 4-cyl dieselReference
Fuel tank65.9 LReference
Engine37.7 kWReference
International Harvester BD-264Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Power37.7 kWReference
Rated RPM1450Reference
Starter typeelectricReference
Oil capacity7.6 LReference
Coolant capacity20.8 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
Oil capacity41.6 LReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase198 cmReference
Front tire6x16Reference
Rear tire13x30Reference
Ag front6x16Reference
Ag rear13x30Reference
Length317 cmReference
Width176 cmReference
Height167 cmReference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM899Reference
Speed788.82 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
