Tractor · 1937Unverified

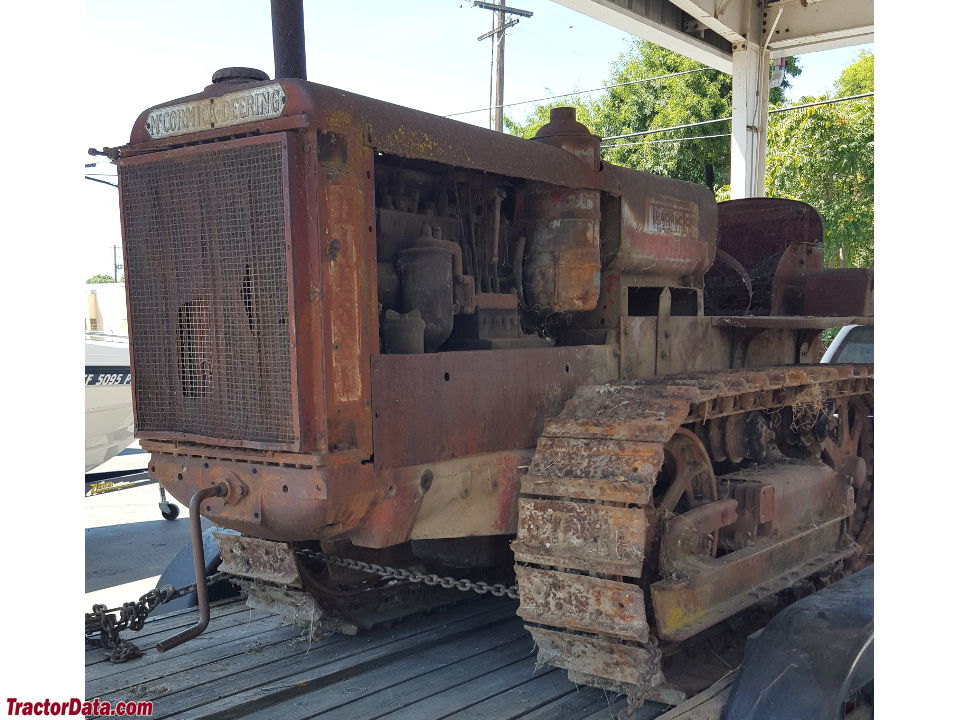

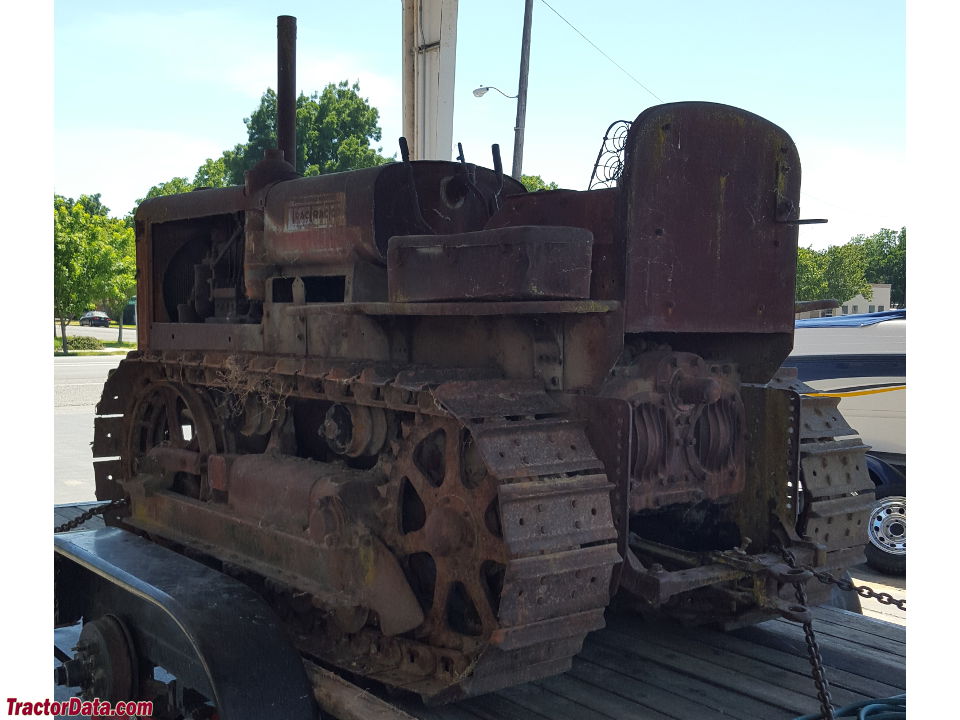

McCormick-Deering TD-35
McCormick-Deering TD-35 — Agricultural Crawler tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Max power
27.7 kW
Weight
10550 to 11245 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Agricultural Crawler tractorReference
Built in Melrose Park, Illinois, USAReference
DrivecrawlerReference
Open operator station.Reference
Variants
T-35gasolineReference
TD-35dieselReference
Engine
International Harvester 6.8L 4-cyl dieselReference
Fuel tank151.4 LReference
Aux. fuel4.7 LReference
Drawbar (claimed)20.1 kWReference
Belt (claimed)27.6 kWReference
Drawbar (tested)27.7 kWReference
Belt (tested)31.5 kWReference
International HarvesterReference
dieselReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement6.8 LReference
Bore/Stroke114 x 165 mmReference
Rated RPM1100Reference
Coolant capacity49.2 LReference
Belt power (max)31.5 kWReference
Max power27.7 kWReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry dsicReference
Dimensions
Weight10550 to 11245 poundsReference
13-inch tracksReference
Length336 cmReference
Width151 cmReference
Weight4785 kgReference
Operating weight5100 kgReference
TD-35 Serial Numbers
Location:Seat, right sideReference
Capacities
Diameter42 cmReference
Width22 cmReference
RPM591Reference
McCormick-Deering TD-35 Tracks
Width33 cmReference
Test results
Diesel 5-speed crawlerApril 5 - 27, 1937Link: Nebraska Tractor Test 277 fileReference
Drawbar performanceReference
Gear 1 used for power test.Reference
Max pull3739 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
