Tractor · 1933Unverified

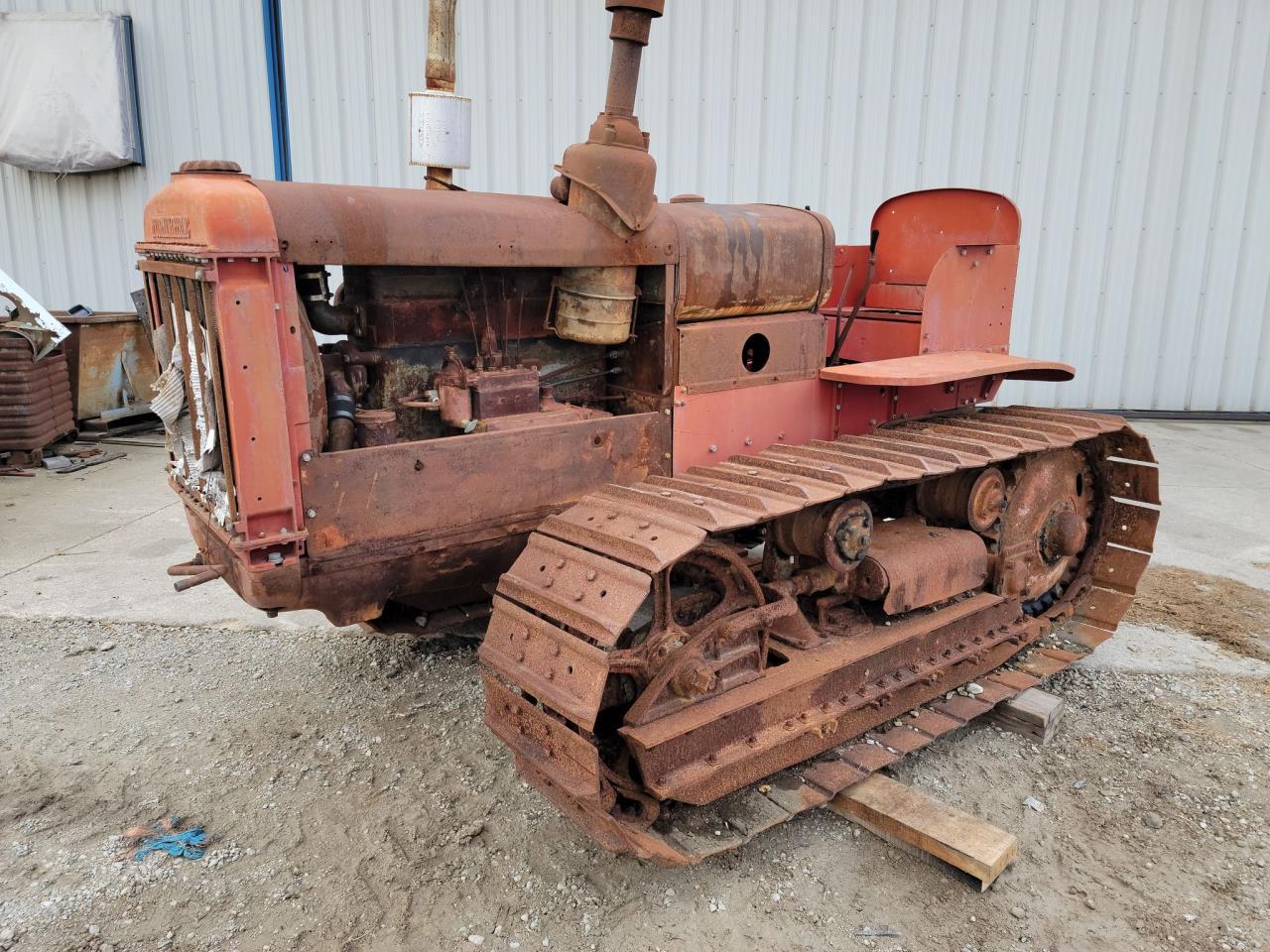

McCormick-Deering TD-40
McCormick-Deering TD-40 — Agricultural Crawler tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Max power
32.3 kW
Weight
12400 to 12750 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Agricultural Crawler tractorReference
Built in Melrose Park, Illinois, USAReference
DrivecrawlerReference
Open operator station. Optional canopy or steel cab.Reference
Engine
International Harvester 7.6L 4-cyl dieselReference
Fuel tank159.0 LReference
Aux. fuel4.7 LReference
Drawbar (claimed)27.6 kWReference
Belt (claimed)35.8 kWReference
Drawbar (tested)36.2 kWReference
Belt (tested)39.9 kWReference
International HarvesterReference
dieselReference
4-cylinderReference
liquid-cooled vertical I-headReference
The TD-40's diesel engine was started on gasoline and then switched to diesel. The engine was manually cranked from the left side, which supplied fuel to a spark-ignition combustion chamber. Exhaust gas from this chamber was directed into the cylinders of the diesel. At 700 RPMs the gasoline chamber shut down and the engine ran as a true diesel.Reference
Displacement7.6 LReference
Bore/Stroke121 x 165 mmReference
Compression15:1Reference
Rated RPM1100Reference
Oil capacity11.4 LReference
Coolant capacity56.8 LReference
Belt power (max)36.0 kWReference
Max power32.3 kWReference
Belt power (max)39.9 kWReference
Max power36.2 kWReference
Transmission
5-speedReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type535Reference
Dimensions
Weight12400 to 12750 poundsReference
16-inch tracksReference
Length355 cmReference
Width161 cmReference
Height (exhaust)209 cmReference
Weight5624 kgReference
Weight5783 kgReference
Ground clearance29 cmReference
TD-40 Serial Numbers
Location:Seat, right sideReference
1933973Reference
19341472Reference
19353069Reference
19364651Reference
19376654Reference
19387922Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter42 cmReference
Width22 cmReference
RPM591Reference
McCormick-Deering TD-40 Tracks
Width40 cmReference
Width20 cmReference
Width45 cmReference
Width50 cmReference
Width55 cmReference
Width60 cmReference
Width76 cmReference
Test results
NTTL 230: diesel 5-speed crawlerReference
NTTL 298: diesel 5-speed crawlerReference
Diesel 5-speed crawlerOctober 25 - November 13, 1934Link: Nebraska Tractor Test 230 fileReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull4321 kgReference
Gear 1 used for pull test.Reference
Diesel 5-speed crawlerApril 20 - 30, 1938Link: Nebraska Tractor Test 298 fileReference
Belt fuel use (max)14.0 l/hourReference
Gear 1 used for power test.Reference
Max pull4756 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
