Tractor · 1932Unverified

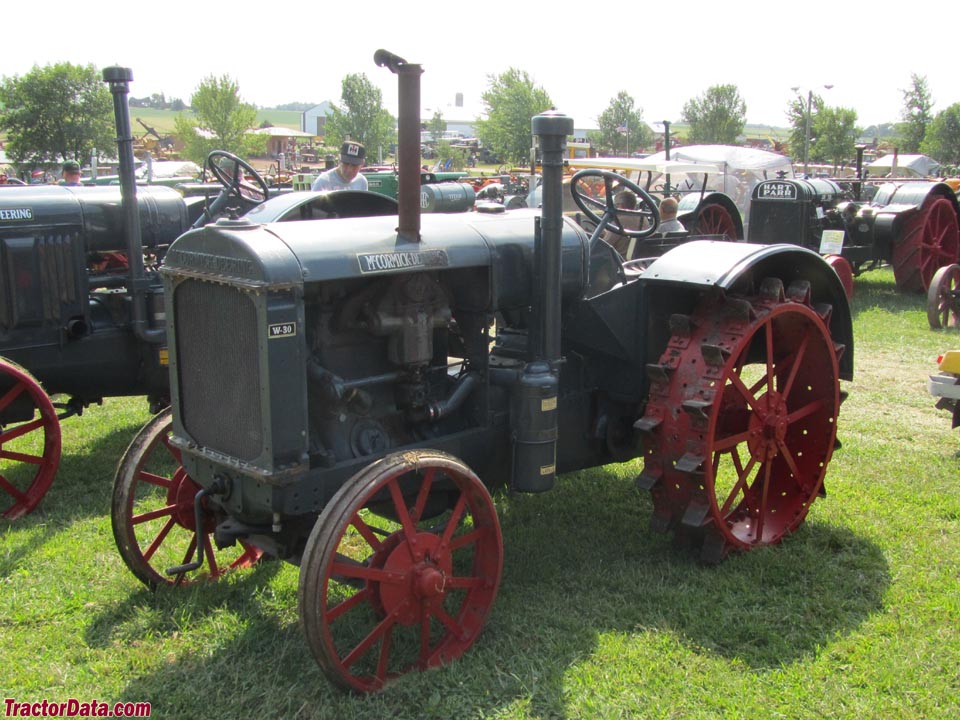

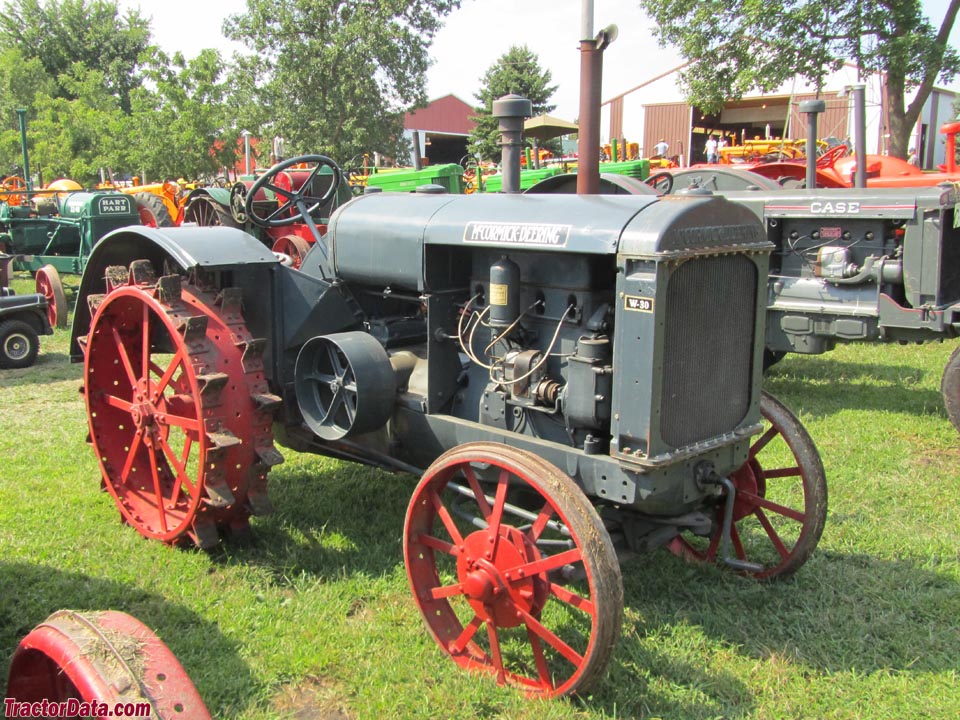

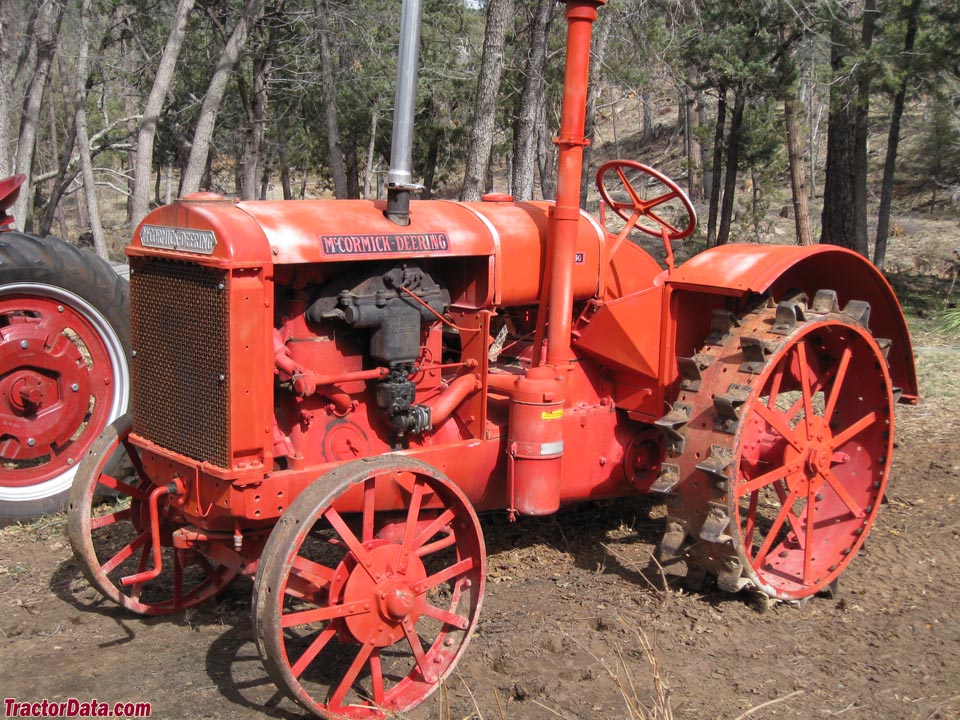

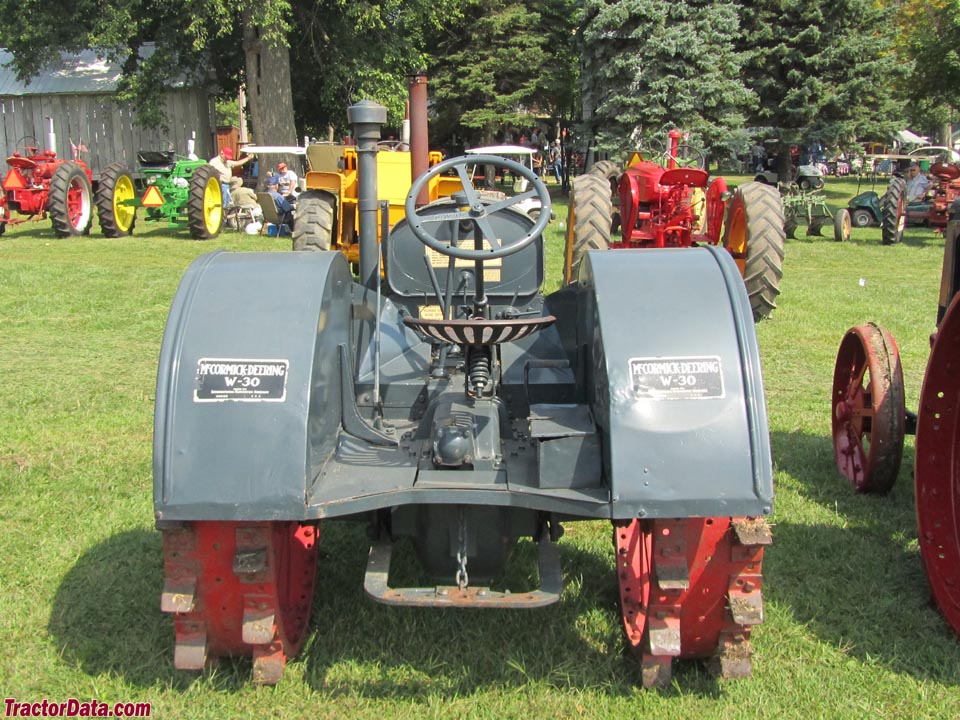

McCormick-Deering W-30
McCormick-Deering W-30 — Standard-tread tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Max power
18.1 kW
Weight
2199 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick-Deering (a part of International Harvester)Reference
Standard-tread tractorReference
Built in Milwaukee, Wisconsin, USAReference
Total built32,541Reference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
International Harvester 4.6L 4-cyl distillateReference
Fuel tank83.3 LReference
Aux. fuel4.7 LReference
Drawbar (claimed)13.4 kWReference
Belt (claimed)18.6 kWReference
Plows3Reference
Drawbar (tested)18.1 kWReference
Belt (tested)24.8 kWReference
International HarvesterReference
distillateReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.6 LReference
Bore/Stroke108 x 127 mmReference
Fuel systemZenith carburetorReference
Air cleaneroil bathReference
Rated RPM1150Reference
Coolant capacity41.6 LReference
Belt power (max)24.8 kWReference
Max power18.1 kWReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Wheelbase184 cmReference
Weight2199 kgReference
Front tire30x6Reference
Rear tire36x12Reference
Ag front30x6 (steel)Reference
Ag rear36x12 (steel)Reference
Ag front26x6 (steel)Reference
Ag front6.00-16Reference
Ag front6.50-16Reference
Ag front7.50-16Reference
Ag front6.00-18Reference
Ag front7.50-18Reference
Ag front6.00-20Reference
Ag front6.50-20Reference
Ag front7.50-20Reference
Ag rear42x12 (steel)Reference

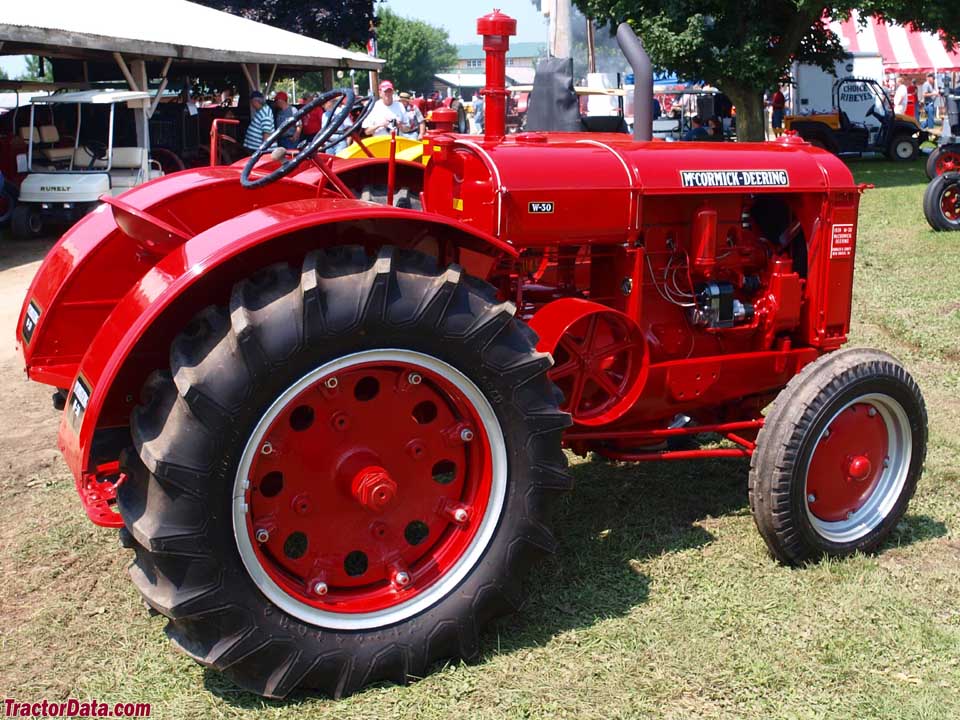

Ag rear11.25-24Reference
Ag rear12.75-24Reference
Ag rear13.50-24Reference
Ag rear11.25-28Reference
Ag rear12.75-28Reference
Length309 cmReference
Width168 cmReference
Height (steering wheel)159 cmReference
Front tread115 cmReference
Rear tread135 cmReference
W-30 Serial Number Location
Serial number plate ahead of steering column on the W-30, below the fuel tank.Reference
W-30 Serial Numbers
1932501Reference
1933523Reference
19341140Reference
19354025Reference
193612010Reference
193717070Reference
193825445Reference
193931007Reference
194032635Reference
FAQ: How to read a serial number table.Reference
Test results
Kerosene 3-speed 2WDJuly 26 - August 10, 1932Link: Nebraska Tractor Test 210 fileReference
Belt fuel use (max)12.5 l/hourReference
Drawbar performanceReference
Gear 1 used for power test.Reference
Max pull1414 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
