Tractor · 2011Unverified

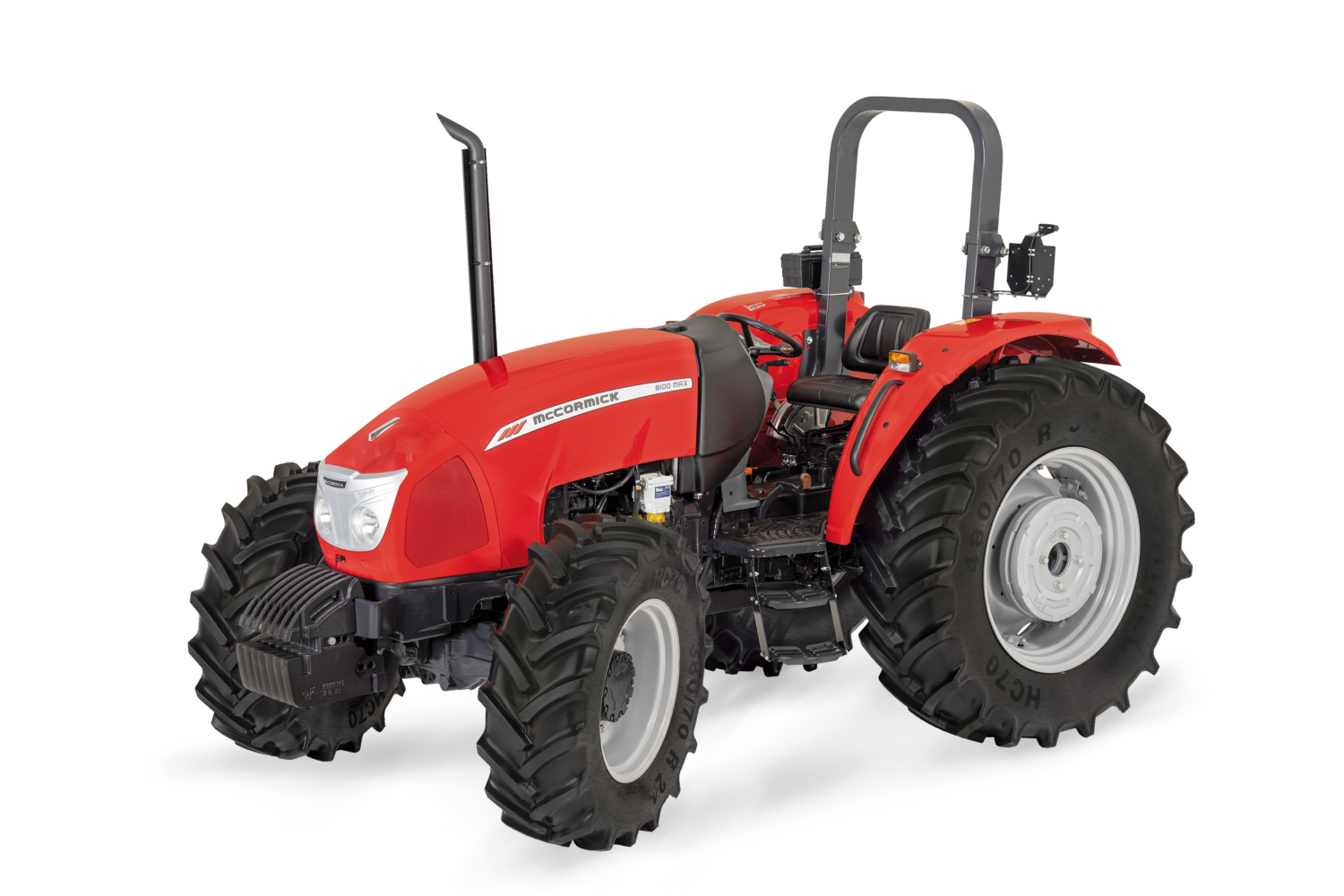

McCormick Intl B90 Max

Name: McCormick Intl B90 Max
Brand: McCormick Intl

McCormick Intl B90 Max — B-Max Series · 77 hp. Reference specifications; pending source verification.

The McCormick Intl B90 Max is a tractor with a rated power of 77 hp, a mid-range figure for its class. It was manufactured in 2011. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. Its operating weight is 3323 kg, making it suitable for operations on areas of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

77 hp

Weight

3323 kg

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

77 hp

Recorded weight

3323 kg

Transmissions

12-speed

Production years

2011-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Utility tractorReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Differential lockhydraulic front and rearReference

Mechanical wet disc brakesReference

Trailer brakeshydraulicReference

Two-post ROPS. Available canopy.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank90.1 LReference

Engine61.9 kWReference

Perkins 1104D-44TReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIIReference

Power61.9 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Compression18.2:1Reference

Rated RPM2200Reference

Torque352.6 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

12-speed mechanical shuttleReference

24-speedReference

TransmissionSpeed FourReference

Gears12 forward and 4 reverseReference

Clutch279.4mm mechanical dry discReference

Four gears in three ranges.Reference

TransmissionSpeed Four shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

TransmissionSpeed Four creeperReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

PTO (claimed)57.4 kWReference

Pressure180.0 barReference

Valves1 or 2Reference

SCV flow52.2 lpmReference

Total flow76.5 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2600 kgReference

Rear lift3700 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type540/750 (1.375)Reference

Dimensions

2WD Wheelbase233 cmReference

4WD Wheelbase180 cmReference

Weight3323 kgReference

Front tire12.4-24Reference

Rear tire18.4-30Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

2WD Optional tires (ag)Front: 7.50-20. Rear: 18.4-30Reference

4WD Optional tires (ag)Front: 380/70R24. Rear: 480/70R34Reference

4WD Optional tires (ag)Front: 14.9R20. Rear: 16.9R30Reference

4WD Optional tires (ag)Front: 440/65R24. Rear: 540/65R34Reference

4WD Optional tires (ag)Front: 12.4R24. Rear: 13.6R38Reference

4WD Optional tires (ag)Front: 340/85R24. Rear: 420/85R34Reference

4WD Optional tires (ag)Front: 11.2R24. Rear: 13.6R36Reference

4WD Optional tires (ag)Front: 13.6R24. Rear: 480/70R34Reference

4WD Optional tires (ag)Front: 320/70R24. Rear: 16.9R30Reference

4WD Optional tires (ag)Front: 405/70R20. Rear: 540/65R30Reference

Length413 cmReference

Width206 cmReference

4WD Ground clearance40 cmReference

Front tread154 to 195 cmReference

Rear tread160 to 200 cmReference

Steering wheel177 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

McCormick Intl B90 Max Height

Hood166 cmReference

ROPS254 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
