Tractor · 2007Unverified

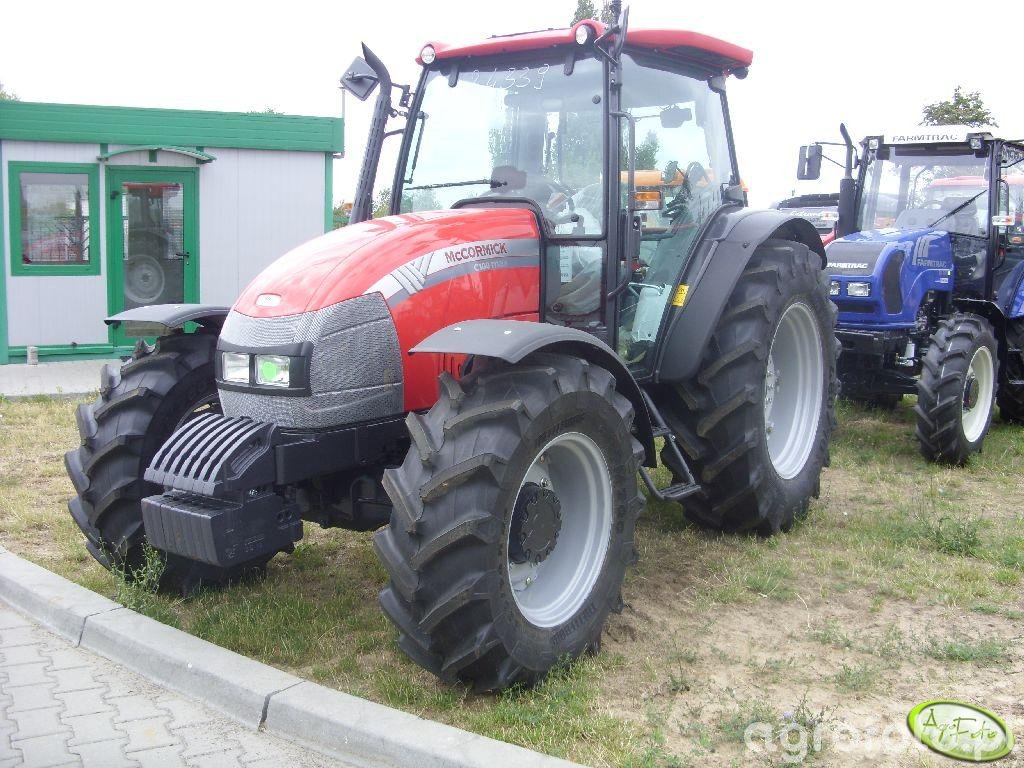

McCormick Intl C100 Max
McCormick Intl C100 Max — Model year 2007-20092009-2019 · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
7341 to 7672 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
C100 MaxutilityReference
C100 Max HChigh-cropReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank102.2 LReference
Engine69.0 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power69.0 kWReference
Fuel systemdirect injectionReference
Torque384.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
24-speed power shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch304.8mm mechanical dry discReference
Four gears in three ranges with mechanical shuttle. Also available with 40 kph overdrive range, giving 24 forward speeds. Optional creeper range.Reference
Typepower shuttleReference
Gears24 forward and 12 reverseReference
Clutchwet discReference
Also available with creeper range giving 36/16 speedsReference
PTO & Hydraulics
PTO (claimed)63.8 kWReference
Valves2 to 4Reference
Pump flow52.2 lpmReference
Total flow82.1 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear lift3700 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase231 cmReference
Weight7341 to 7672 poundsReference
Front tire13.6-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 16.9-34Reference
Length413 cmReference
Width203 cmReference
Height (ROPS)255 cmReference
Height (cab)255 cmReference
ROPS Weight3329 kgReference
Cab Weight3480 kgReference
Ground clearance47 cmReference
Front tread153 to 196 cmReference
Rear tread161 to 201 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
