Tractor · 2010Unverified

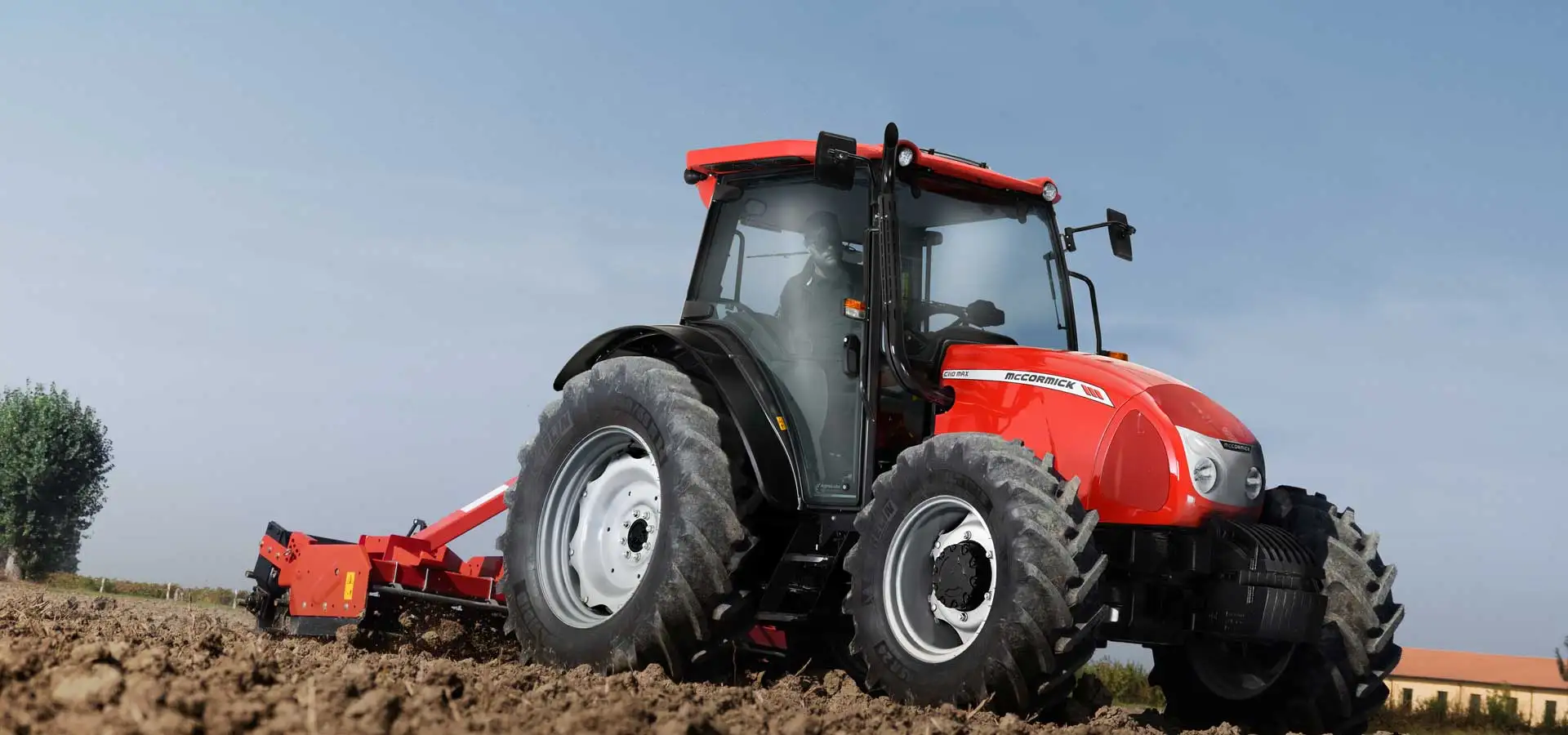

McCormick Intl C100 Max High Clear

Name: McCormick Intl C100 Max High Clear
Brand: McCormick Intl

McCormick Intl C100 Max High Clear — C-Max Series · 79 hp. Reference specifications; pending source verification.

The McCormick Intl C100 Max High Clear tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, providing a rated output of 79 horsepower. This engine is connected to a 12-speed gearbox, powering all four wheels. The tractor's listed weight is 3460 kg, and it is designed for tasks on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

79 hp

Weight

3460 kg

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

79 hp

Recorded weight

3460 kg

Transmissions

12-speed mechanical shuttle

Production years

2010-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

High-Clearance tractorReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulicReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with air-conditioning. Two-post ROPS available.Reference

Variants

C100 MaxutilityReference

C100 Max HChigh-cropReference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank102.2 LReference

Engine69.0 kWReference

Perkins 1104D-44TAReference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIIReference

Power69.0 kWReference

Compression18.2:1Reference

Rated RPM2200Reference

Torque393.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Clutch304.8 mm mechanical dry discReference

Four gears in three ranges with mechanical shuttle. Also available with overdrive or creeper range, giving 24 speeds.Reference

PTO & Hydraulics

PTO (claimed)58.9 kWReference

Pressure180.0 barReference

Valves2Reference

SCV flow52.2 lpmReference

Total flow82.1 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2600 kgReference

Rear lift3700 kgReference

Rear PTOindependentReference

Rear PTO Type540/750 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Dimensions

2WD Wheelbase225 cmReference

4WD Wheelbase223 cmReference

Weight3460 kgReference

Front tire9.5R48Reference

Rear tire9.5R48Reference

Standard tires (ag)Front: 9.5R48. Rear: 9.5R48Reference

2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6-38Reference

2WD Optional tires (ag)Front: 7.50-20. Rear: 380/80-38Reference

2WD Optional tires (ag)Front: 7.50-20. Rear: 14.9-38Reference

4WD Optional tires (ag)Front: 13.6-38. Rear: 13.6-38Reference

Length412 cmReference

Width167 cmReference

Ground clearance68 cmReference

Steering wheel207 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

McCormick Intl C100 Max High Clear Height

Hood194 cmReference

ROPS281 cmReference

Cab273 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
