Tractor · 2004Unverified

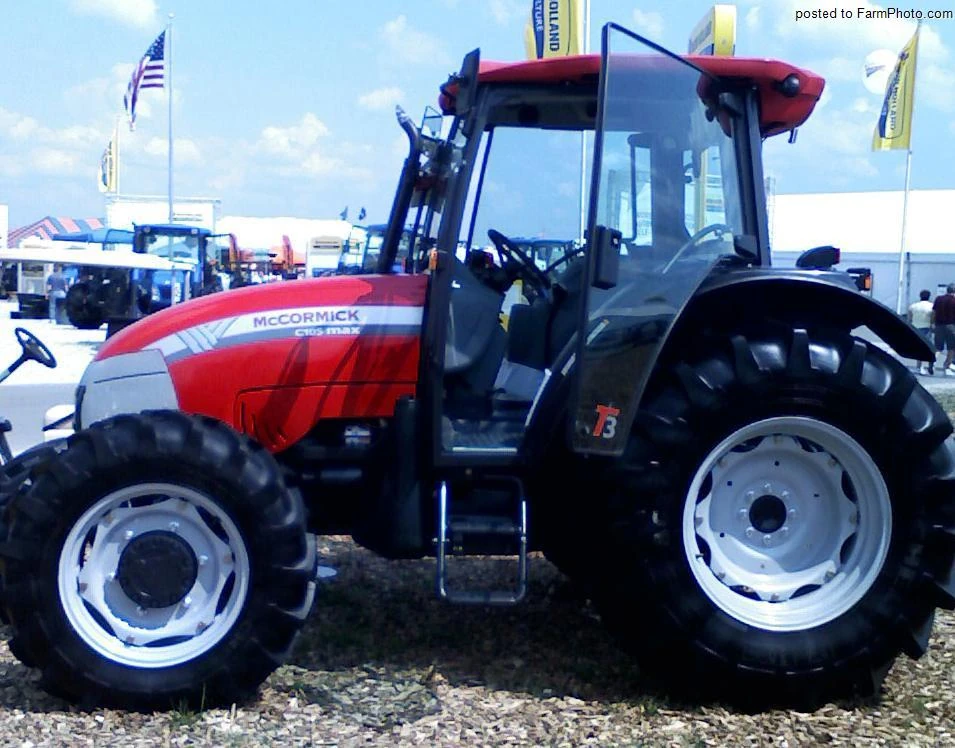

McCormick Intl C105 Max High Clear
McCormick Intl C105 Max High Clear — C-Max Series · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
8048 to 8533 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
High-Clearance tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
ROPS. Cab optional.Reference
Variants
C105 MaxutilityReference
C105HChigh-cropReference
Engine
Perkins 4.4L 4-cyl dieselReference
Engine73.8 kWReference
PerkinsReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power73.8 kWReference
Rated RPM2200Reference
Torque364.8 NmReference
Transmission
12-speed synchronized shuttleReference
24-speed synchronized shuttle with creeperReference
24-speed synchronized shuttle with overdriveReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Typesynchronized shuttle with creeperReference
Gears24 forward and 12 reverseReference
Typesynchronized shuttle with overdriveReference
PTO & Hydraulics
PTO (claimed)65.6 kWReference
Hydraulic system34.4 LReference
Hydraulic system37.1 LReference
Typeopen centerReference
Capacity34.4 LReference
Capacity37.1 LReference
Valves1 or 2Reference
Pump flow52.2 lpmReference
Rear TypeIIReference
Rear lift (at ends)2600 kgReference
Rear lift (at ends)3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel102.2 LReference
Dimensions
Wheelbase265 cmReference
Wheelbase264 cmReference
Weight8048 to 8533 poundsReference
Front tire7.5-20Reference
Rear tire13.6R38Reference
Ag front7.5-20 (2WD)Reference
Ag front13.6R38 (4WD)Reference
Ag front9.5R48 (4WD)Reference
Ag rear13.6R38Reference
Ag rear7.5R48Reference
Length419 cmReference
Weight3650 kgReference
Weight3870 kgReference
Ground clearance62 cmReference
Ground clearance74 cmReference
Ground clearance68 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
