Tractor · 2009Unverified

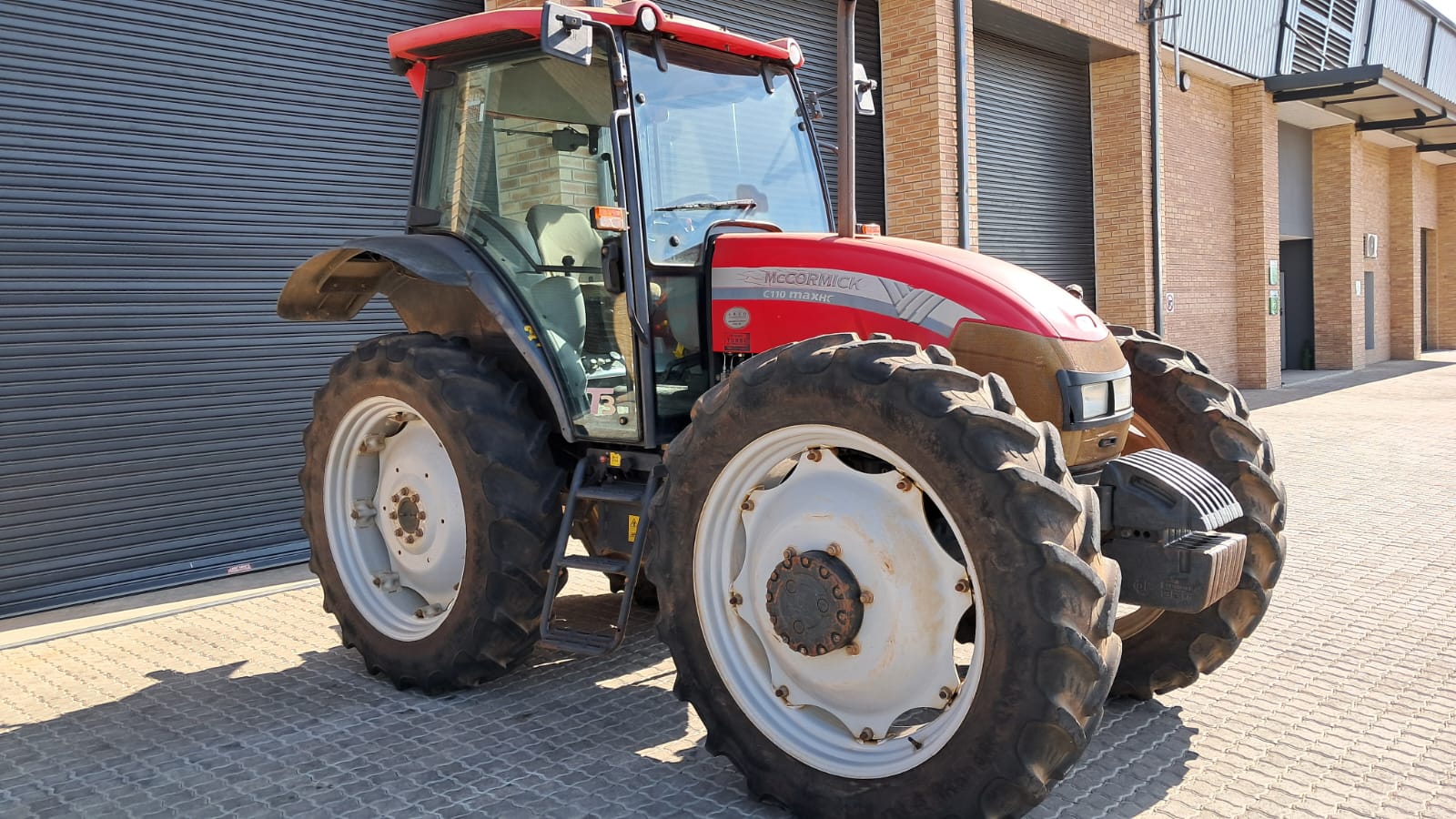

McCormick Intl C110 Max
McCormick Intl C110 Max — C-Max Series · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
7606 to 7937 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
C110 MaxutilityReference
C110 Max HChigh-cropReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank102.2 LReference
Engine76.1 kWReference
Perkins 1104D-44TAReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power76.1 kWReference
Fuel systemdirect injectionReference
Torque416.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch304.8mm mechanical dry discReference
Four gears in three ranges with mechanical shuttle. Also available with 40 kph overdrive range, giving 24 forward speeds. Optional creeper range.Reference
PTO & Hydraulics
PTO (claimed)64.5 kWReference
Valves2 to 4Reference
Pump flow52.2 lpmReference
Total flow82.1 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear lift4350 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase236 cmReference
4WD Wheelbase233 cmReference
Weight7606 to 7937 poundsReference
Front tire380/70R24Reference
Rear tire480/70R24Reference
Standard tires (ag)Front: 380/70R24. Rear: 480/70R24Reference
Length416 cmReference
Width211 cmReference
Height (ROPS)256 cmReference
Height (cab)256 cmReference
ROPS Weight3450 kgReference
Cab Weight3600 kgReference
Ground clearance47 cmReference
Front tread173 to 216 cmReference
Rear tread161 to 201 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
