Tractor · 2004Unverified

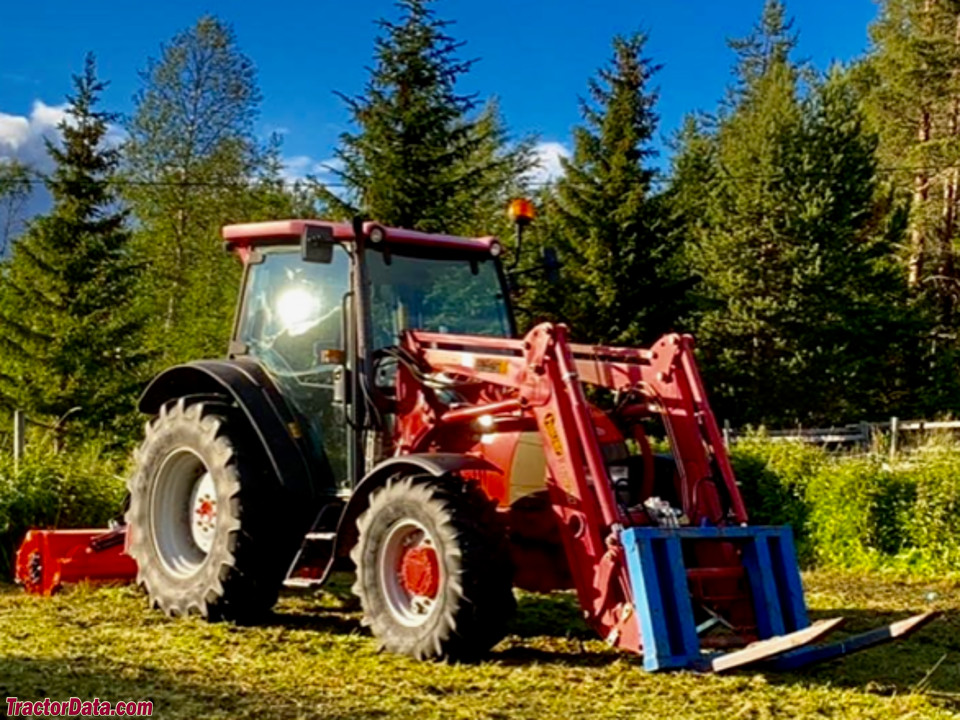

McCormick Intl C75 Max
McCormick Intl C75 Max — C-Max Series · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
7165 to 7253 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank102.2 LReference
Engine50.9 kWReference
Perkins 1104C-44Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIReference
Power50.9 kWReference
Rated RPM2200Reference
Torque273.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
24-speedReference
Gears12 forward and reverseReference
Clutch275.8mm cerametallic dry discReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Valves2 to 4Reference
Pump flow52.2 lpmReference
Total flow82.1 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2600 kgReference
Rear lift (at ends)3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase231 cmReference
Weight7165 to 7253 poundsReference
Front tire12.4-24Reference
Rear tire16.9-30Reference
Ag front12.4-24Reference
Ag rear16.9-30Reference
Length413 cmReference
Width163 cmReference
ROPS Weight3250 kgReference
Cab Weight3289 kgReference
Front tread149 to 189 cmReference
Rear tread119 to 190 cmReference
Steering wheel173 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
McCormick Intl C75 Max Height
Hood163 cmReference
ROPS215 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
