Tractor · Unverified

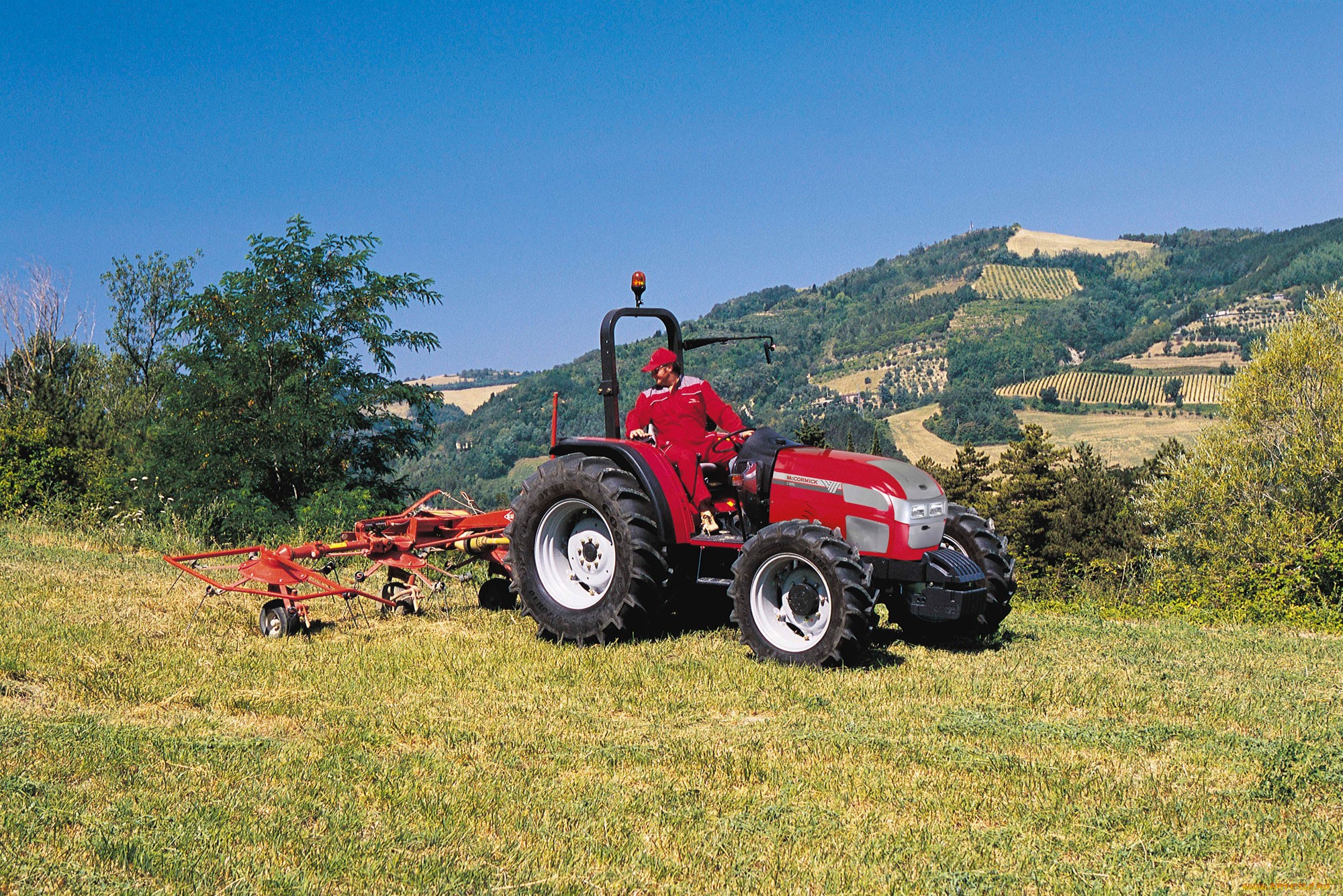

McCormick Intl C80L
McCormick Intl C80L · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
5190 to 5476 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Wet disc brakesReference
Foldable ROPS. Optional canopy.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine55.0 kWReference
Perkins 1103C-33TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
Power55.0 kWReference
Air cleanerdual dry elementsReference
Compression18.25:1Reference
Rated RPM2200Reference
Torque291.0 NmReference
Torque RPM1400Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)50.0 kWReference
Pressure180.0 barReference
Valves1 or 2Reference
Pump flow42.0 lpmReference
Total flow62.1 lpmReference
Rear TypeIIReference
Rear lift2698 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase202 cmReference
Weight5190 to 5476 poundsReference
Front tire6.50-16Reference
Rear tire14.9R28Reference
Ag front6.50-16 (2WD)Reference
Ag front11.2R20 (4WD)Reference
Ag rear14.9R28Reference
Length387 cmReference
Width169 cmReference
Height (steering wheel)158 cmReference
Height (ROPS)241 cmReference
Weight2354 kgReference
Weight2483 kgReference
Ground clearance36 cmReference
Front tread145 to 184 cmReference
Rear tread119 to 190 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
