Tractor · 2004Unverified

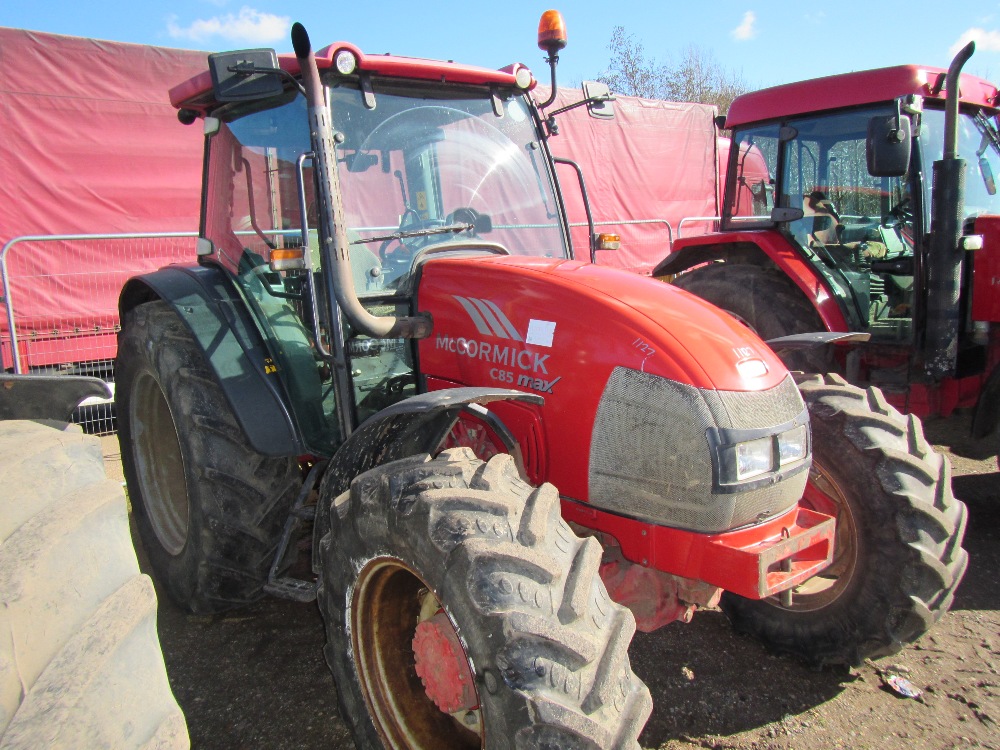

McCormick Intl C85 Max
McCormick Intl C85 Max — C-Max Series · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
6813 to 7343 pounds (4WD)
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
C85 MaxutilityReference
C85HChigh-cropReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank102.2 LReference
Engine60.8 kWReference
Perkins 1104C-44Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIReference
Power60.8 kWReference
Rated RPM2200Reference
Torque292.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
24-speedReference
TransmissionReverse Power Shuttle (RPS)Reference
Gears12 forward and reverseReference
Clutch275.8mm cerametallic dry discReference
Transmissionsynchro shuttleReference
Transmissionoverdrive syncro shuttleReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)54.4 kWReference
Typeopen centerReference
Pressure180.0 barReference
Valves2 to 4Reference
Pump flow52.2 lpmReference
Total flow82.1 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2600 kgReference
Rear lift (at ends)3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase234 cmReference
4WD Wheelbase231 cmReference
Weight6813 to 7343 pounds (4WD)Reference
Front tire7.5-16Reference
Rear tire18.4/30Reference
Ag front7.5-16 (2WD)Reference
Ag front12.4/24 (4WD)Reference
Ag rear18.4/30Reference
Length413 cmReference
Width173 cmReference
Weight3090 kgReference
Weight3330 kgReference
Front tread145 to 193 cmReference
Rear tread129 to 201 cmReference
Steering wheel179 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
McCormick Intl C85 Max Height
Hood167 cmReference
ROPS256 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
