Tractor · 2010Unverified

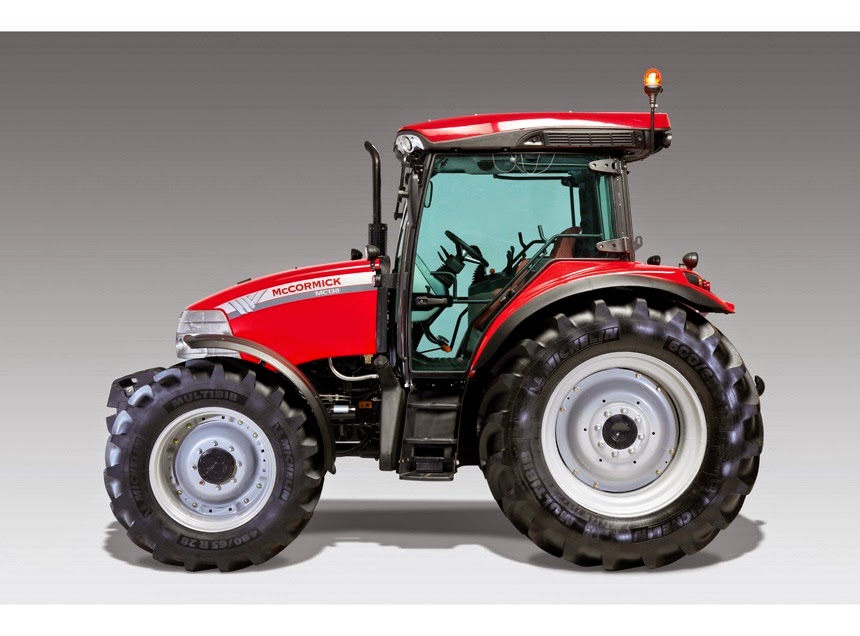

McCormick Intl C90 Max High Clear
McCormick Intl C90 Max High Clear — C-Max Series · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Weight
3460 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
High-Clearance tractorReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning. Two-post ROPS available.Reference
Variants
C90 MaxutilityReference
C90 Max HChigh-cropReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank102.2 LReference
Engine61.9 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power61.9 kWReference
Compression18.2:1Reference
Rated RPM2200Reference
Torque352.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutch279.4 mm mechanical dry discReference
Four gears in three ranges with mechanical shuttle. Also available with overdrive or creeper range, giving 24 speeds.Reference
PTO & Hydraulics
PTO (claimed)52.6 kWReference
Pressure180.0 barReference
Valves2Reference
SCV flow52.2 lpmReference
Total flow82.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase225 cmReference
4WD Wheelbase223 cmReference
Weight3460 kgReference
Front tire9.5R48Reference
Rear tire9.5R48Reference
Standard tires (ag)Front: 9.5R48. Rear: 9.5R48Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6-38Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 380/80-38Reference
2WD Optional tires (ag)Front: 7.50-20. Rear: 14.9-38Reference
4WD Optional tires (ag)Front: 13.6-38. Rear: 13.6-38Reference
Length412 cmReference
Width167 cmReference
Ground clearance68 cmReference
Steering wheel207 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
McCormick Intl C90 Max High Clear Height
Hood194 cmReference
ROPS281 cmReference
Cab273 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
