Tractor · 2007Unverified

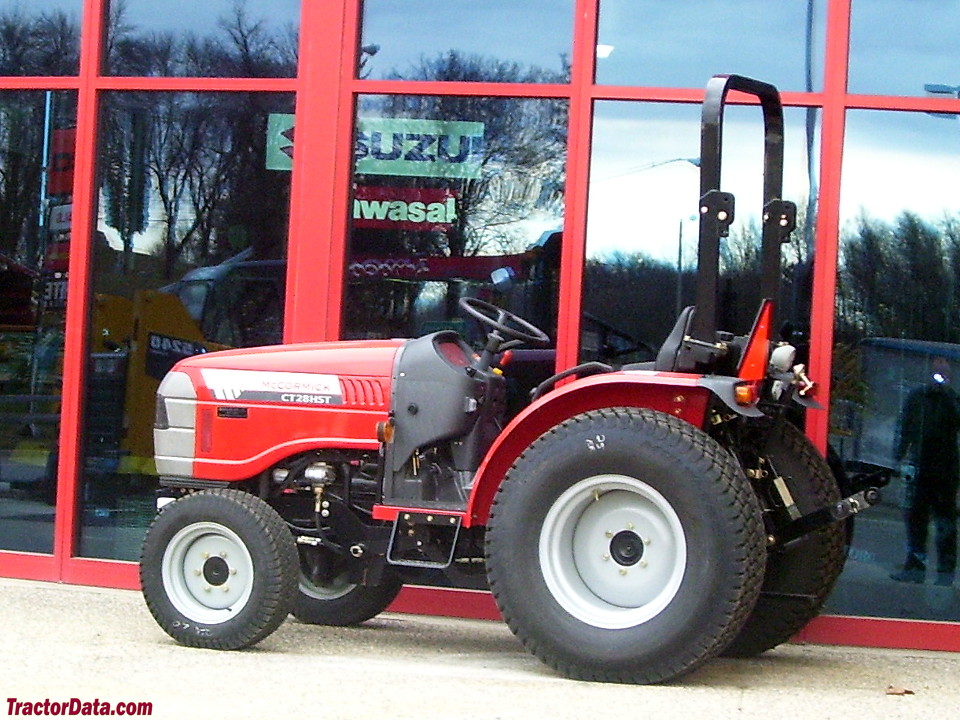

McCormick Intl CT28
McCormick Intl CT28 — CT Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1199 kg
Hover a source tag to verify
Overview
DistributorMcCormick Intl (a part of Argo)Reference
ManufacturerLSReference
Compact Utility tractorReference
Original price was $24,300 in 2008Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
CT28gearReference
CT28HSThydrostaticReference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank32.2 LReference
Engine (gross)20.9 kWReference
Mitsubishi S4LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)20.9 kWReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
hydrostaticReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)17.2 kWReference
Hydro PTO (claimed)16.4 kWReference
Valves2Reference
Pump flow30.3 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear lift (at ends)1188 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTO Type2100Reference
Dimensions
Wheelbase165 cmReference
Weight1199 kgReference
Front tire7x14Reference
Rear tire11.2-24Reference
Weight204 kgReference
Weight396 kgReference
Ag front7x14Reference
Ag rear11.2-24Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length299 cmReference
Width168 cmReference
Height (ROPS)228 cmReference
Ground clearance33 cmReference
Front tread113 cmReference
Rear tread128 cmReference
McCormick Intl CT28 attachments
66" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
66" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
66" Mower deck
Typemid-mount McCormick MS66Reference
Cutting width167 cmReference
Cut height2 to 10 cmReference
McCormick Intl MH76 Backhoe
Backhoe typeMcCormick Intl MH76 BackhoeReference
Bucket width22 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Bucket width50 cmReference
Bucket width60 cmReference
Digging depth243 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot289 cmReference
Loading height177 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1288 kgReference
Dipperstick force909 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
