Tractor · 2008Unverified

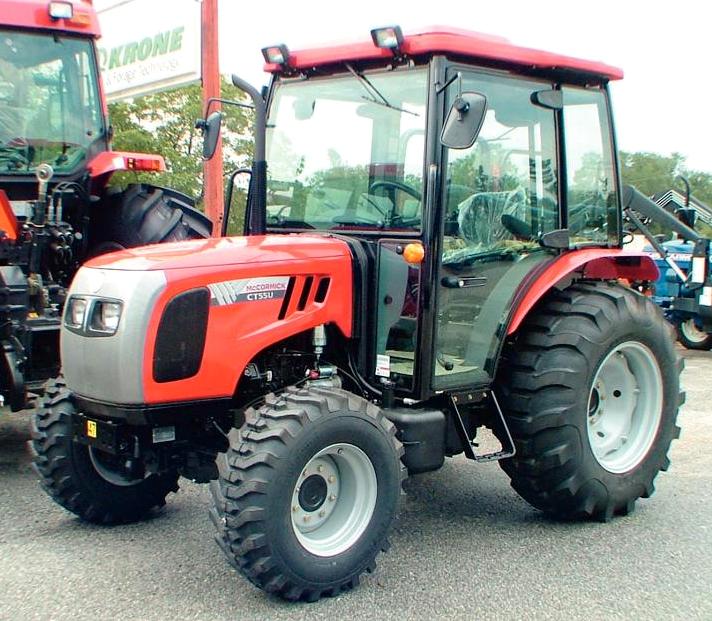

McCormick Intl CT55U
McCormick Intl CT55U — CTU Series · 44 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Weight
2270 kg
Hover a source tag to verify
Overview
DistributorMcCormick Intl (a part of Argo)Reference
ManufacturerLSReference
Compact Utility tractorReference
Built in KoreaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
ROPS. Cab optional.Reference
Engine
Mitsubishi 2.5L 4-cyl dieselReference
Fuel tank60.0 LReference
Engine35.0 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke89 x 104 mmReference
Power35.0 kWReference
Air cleanerdry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)32.8 kWReference
Valves2Reference
Pump flow34.4 lpmReference
Steering flow17.8 lpmReference
Rear TypeIReference
Rear lift (at ends)1496 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase187 cmReference
Weight2270 kgReference
Industrial front12x16.5Reference
Industrial rear17.5Lx24Reference
Length317 cmReference
Width166 cmReference
Height (ROPS)239 cmReference
Ground clearance35 cmReference
McCormick Intl CT55U attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
McCormick MH86 Backhoe
Backhoe typeMcCormick MH86 BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
