Tractor · 2009Unverified

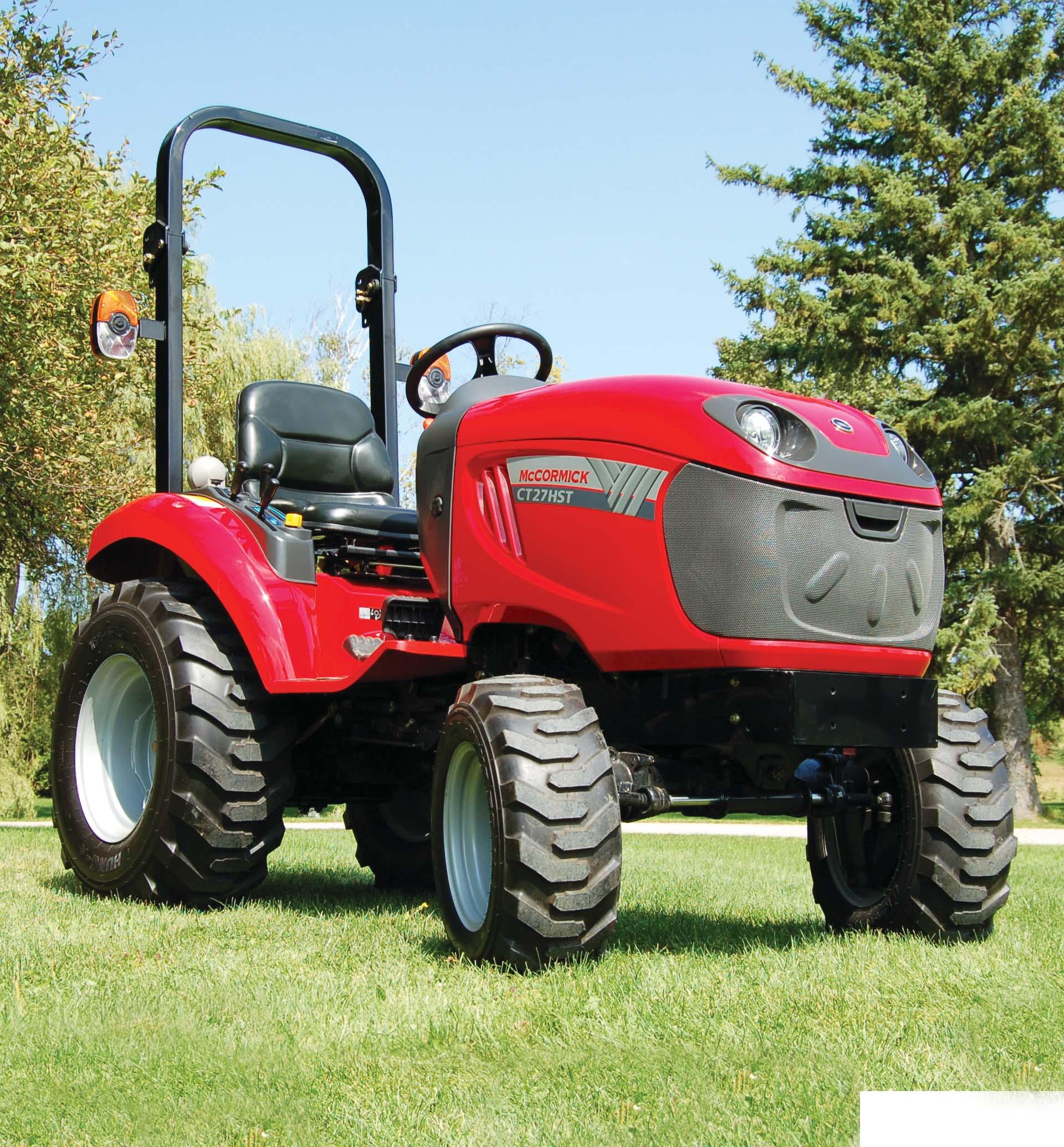

McCormick Intl CTJ27
McCormick Intl CTJ27 — CTJ Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
729 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine20.1 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
EmissionsTier IIIReference
Power20.1 kWReference
Air cleanerdryReference
Pre-heatingglow plugReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)16.0 kWReference
Typeopen centerReference
Valves1Reference
Pump flow17.0 lpmReference
Total flow26.9 lpmReference
Steering flow9.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)650 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase152 cmReference
Weight729 kgReference
Weight185 kgReference
Industrial front23x8.50-12Reference
Industrial rear12x16.5Reference
Length261 cmReference
Width116 cmReference
Height (ROPS)215 cmReference
Height (Folded ROPS)175 cmReference
Ground clearance25 cmReference
McCormick Intl CTJ27 attachments
60" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
60" Mower deck
Typemid-mount McCormick MS60Reference
Cutting width152 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
