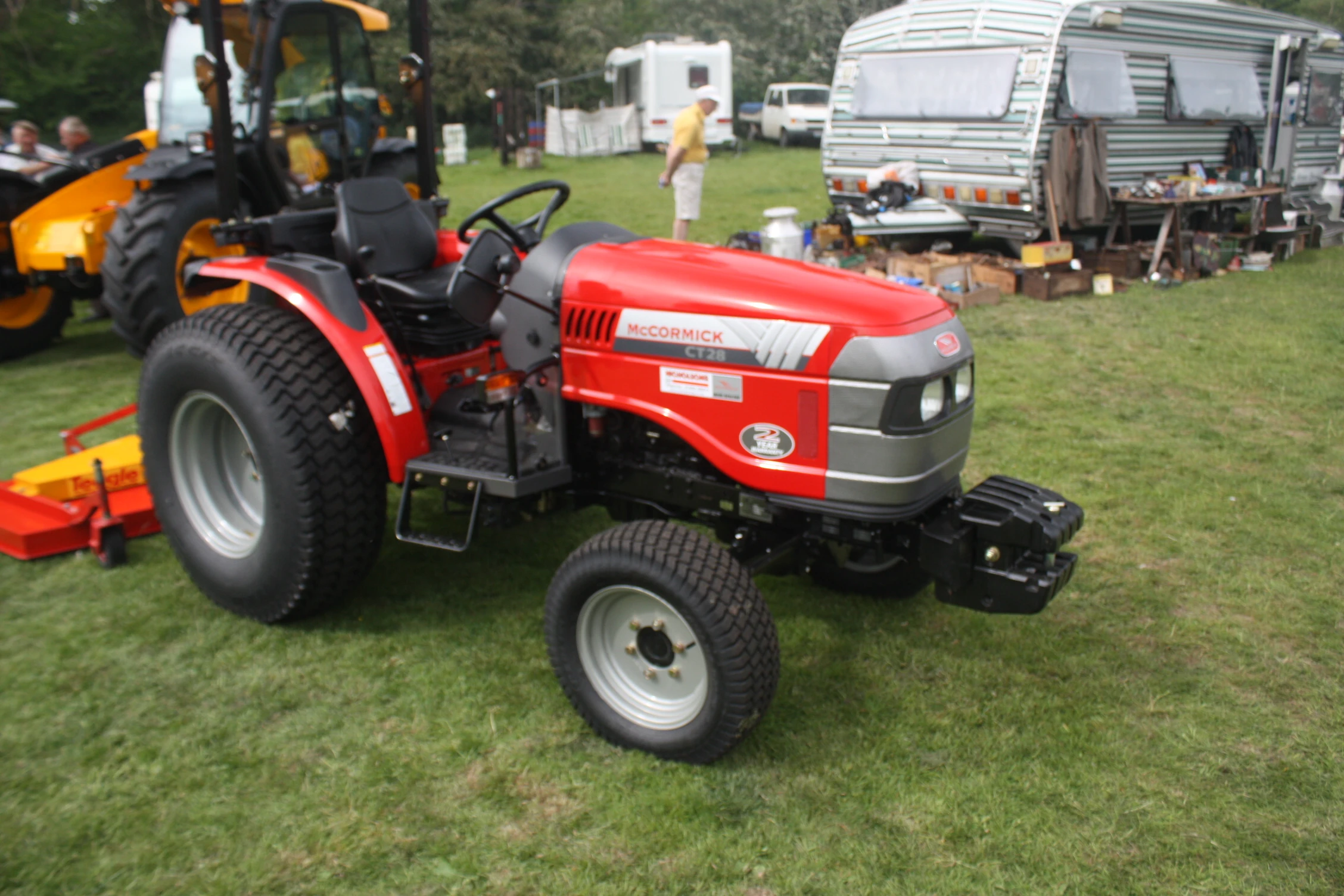

The McCormick Intl CTV28 is a compact tractor model, rated at 28 hp. Manufactured between 2007 and 2010, it features a 4-cylinder diesel liquid-cooled engine, which drives a four-wheel drive system via an 8-speed gearbox. The listed weight of the CTV28 is 1199 kg, suitable for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
1199 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
28 hp
Recorded weight
1199 kg
Transmissions
8-speed
Production years
2007-2010
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorMcCormick Intl (a part of Argo)Reference
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank27.6 LReference
Engine (gross)20.9 kWReference
MitsubishiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)20.9 kWReference
Pre-heatingglow plugReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Typeopen centerReference
Pump flow22.0 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear lift (at ends)723 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase165 cmReference
Weight1199 kgReference
Industrial front25x8.50-14Reference
Industrial rear43x16-20Reference
Length292 cmReference
Width168 cmReference
Height (ROPS)235 cmReference
Ground clearance28 cmReference
Front tread113 cmReference
Rear tread128 cmReference
McCormick Intl CTV28 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
