Tractor · 2008Unverified

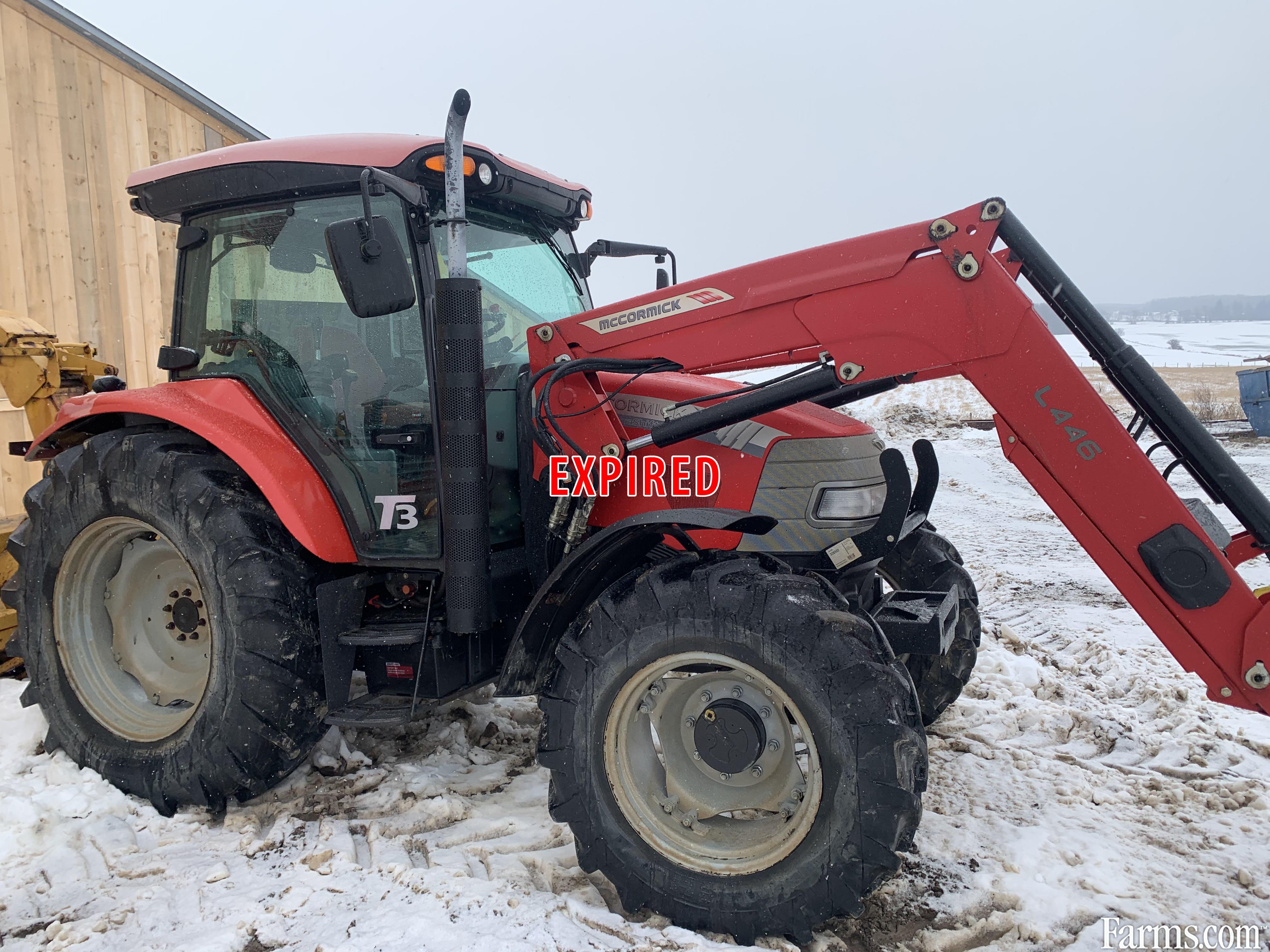

McCormick Intl CX100
McCormick Intl CX100 — CX Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
9193.3 to 9347.6 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Cab standard. Optional sir-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank154.8 LReference
Engine69.4 kWReference
Perkins 1104D-44TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier 3Reference
Power69.4 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed power shuttleReference
36-speed power shuttleReference
8-speed 16Reference
TransmissionXtrashiftReference
Typepower shuttleReference
Gears24 forward and reverseReference
Three power shift speeds in each of four gears. High and low ranges.Reference
Gears36 forward and reverseReference
Three power shift speeds in each of four gears. High, low, and creeper ranges.Reference
Transmissionsynchronized shuttleReference
Type16Reference
Gears8 forwardReference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
Valves2Reference
Pump flow59.8 lpmReference
Total flow89.7 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Rear lift3199 kgReference
Rear lift4449 kgReference
Front HitchIIReference
Front lift3000 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Rear PTO Type540/750Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase245 cmReference
Weight9193.3 to 9347.6 poundsReference
Front tire320/85R24Reference
Rear tire420/85R34Reference
Ag front320/85R24Reference
Ag rear420/85R34Reference
Length432 cmReference
Width234 cmReference
Width196 cmReference
Height (cab)273 cmReference
Height (cab)254 cmReference
Weight4170 kgReference
Weight4240 kgReference
Ground clearance41 cmReference
CX100 Serial Numbers
Location:Serial number plate on the right side of the radiator support bracket, under the hood.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
