Tractor · 2008Unverified

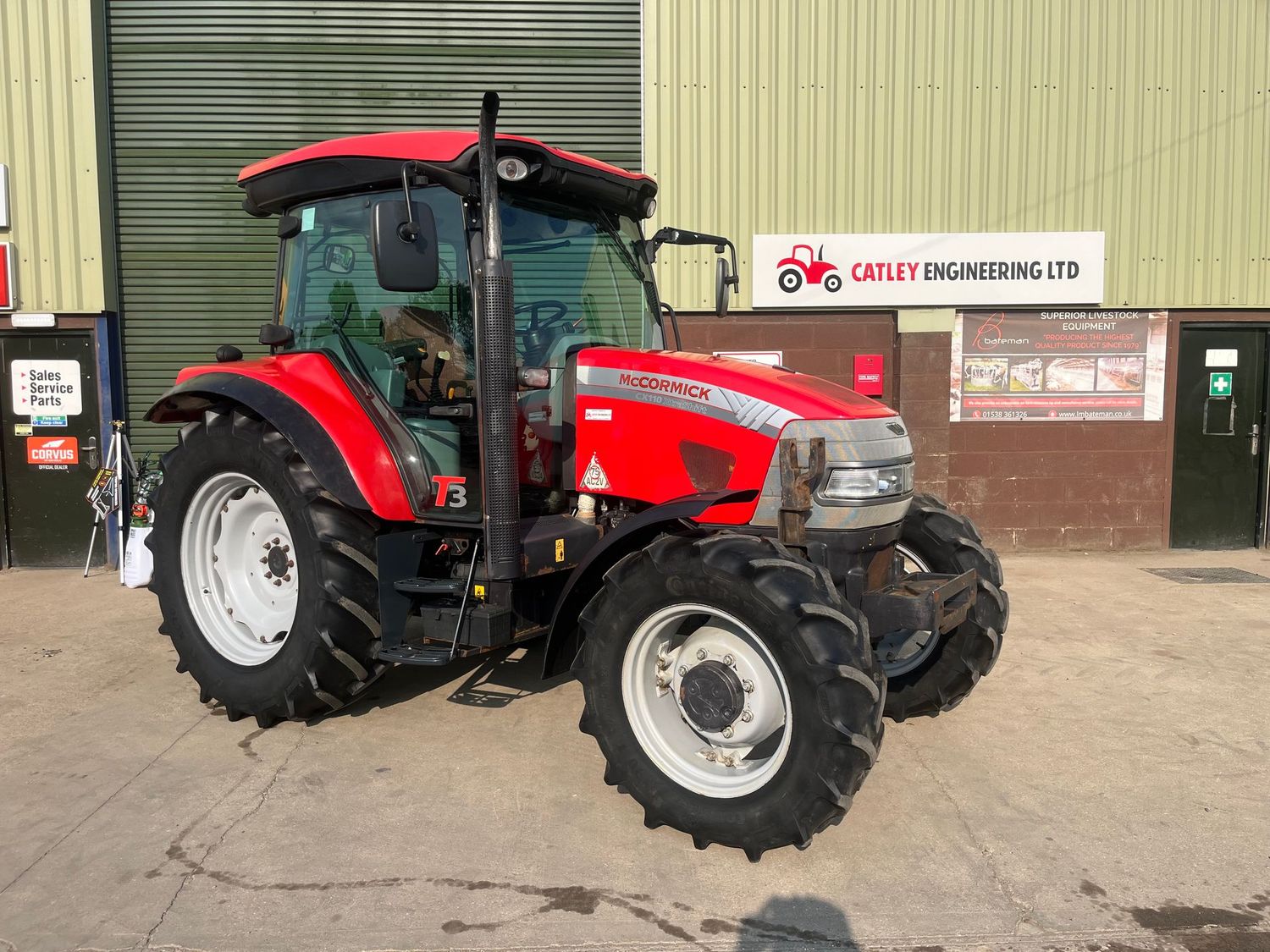

McCormick Intl CX110

Name: McCormick Intl CX110
Brand: McCormick Intl

McCormick Intl CX110 — CX Series · 85 hp. Reference specifications; pending source verification.

The McCormick Intl CX110 is a tractor model with an engine rating of 85 hp, placing it in the middle of its class in terms of power output. Manufactured between 2008 and 2011, the CX110 features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives through a powershift transmission with four-wheel drive. The listed weight of the tractor ranges from 9193.3 to 9347.6 pounds. It is suited to tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

85 hp

Weight

9193.3 to 9347.6 pounds

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

85 hp

Recorded weight

4170 kg

Transmissions

24-speed power shuttle

Production years

2008-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick IntlReference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

SteeringpowerReference

Wet disc brakesReference

Cab standard. Optional sir-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank154.8 LReference

Engine76.1 kWReference

Perkins 1104D-44TAReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier 3Reference

Power76.1 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

24-speed power shuttleReference

36-speed power shuttleReference

8-speed 16Reference

TransmissionXtrashiftReference

Typepower shuttleReference

Gears24 forward and reverseReference

Three power shift speeds in each of four gears. High and low ranges.Reference

Gears36 forward and reverseReference

Three power shift speeds in each of four gears. High, low, and creeper ranges.Reference

Transmissionsynchronized shuttleReference

Type16Reference

Gears8 forwardReference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

Valves2Reference

Pump flow59.8 lpmReference

Total flow89.7 lpmReference

Steering flow29.9 lpmReference

Rear TypeIIReference

Rear lift3199 kgReference

Rear lift4449 kgReference

Front HitchIIReference

Front lift3000 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type540/750Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase245 cmReference

Weight9193.3 to 9347.6 poundsReference

Front tire320/85R24Reference

Rear tire420/85R34Reference

Ag front320/85R24Reference

Ag rear420/85R34Reference

Length432 cmReference

Width234 cmReference

Width196 cmReference

Height (cab)273 cmReference

Height (cab)254 cmReference

Weight4170 kgReference

Weight4240 kgReference

Ground clearance41 cmReference

CX110 Serial Numbers

Location:Serial number plate on the right side of the radiator support bracket, under the hood.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
