Tractor · 2009Unverified

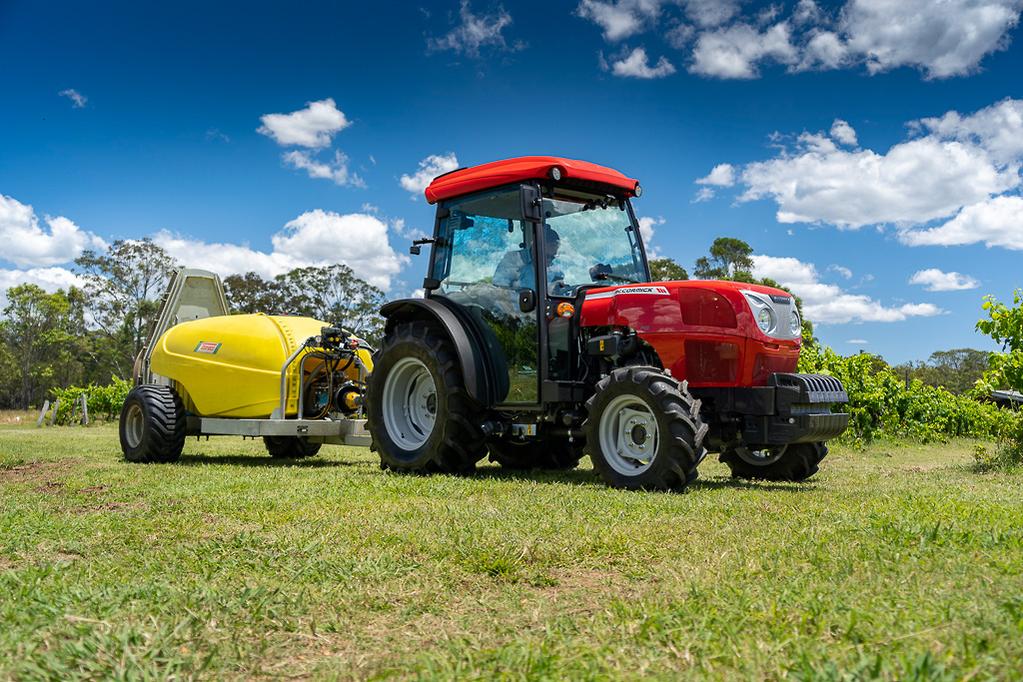

McCormick Intl F110
McCormick Intl F110 — Model year 2009-20142015-2025 · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
5600 to 6316 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
F110FnarrowReference
F110GElow-profileReference
F110XLfull sizeReference
Engine
Perkins 4.4L 4-cyl dieselReference
F/GE Fuel tank73.1 LReference
XL Fuel tank90.1 LReference
Engine76.1 kWReference
Perkins 1104D-44TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power76.1 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque416.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
15-speed synchro shuttleReference
30-speed power shuttleReference
TransmissionSpeed FourReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
Clutch279.4mm mechanical dry discReference
TransmissionSpeed FiveReference
Gears15 forward and reverseReference
TransmissionPowerFiveReference
Typepower shuttleReference
Gears30 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)63.8 kWReference
F/GE Valves2Reference
XL Valves3Reference
Pump flow82.1 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Clutchhydraulic wet discReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase213 cmReference
Weight5600 to 6316 poundsReference
Front tire280/70R16Reference
Rear tire14.9R24Reference
F Ag front280/70R16Reference
GE Ag front260/70R16Reference
XL Ag front7.50-18Reference
F Ag rear14.9R24Reference
GE Ag rear14.9LR20Reference
XL Ag rear14.9R24Reference
Length400 cmReference
F Width131 cmReference
GE Width143 cmReference
XL Width147 cmReference
F Ground clearance26 cmReference
GE Ground clearance23 cmReference
XL Ground clearance26 cmReference
F 2WD2615 kgReference
F 4WD2844 kgReference
GE 4WD2540 kgReference
XL 4WD2864 kgReference
F Steering wheel145 cmReference
GE Steering wheel130 cmReference
XL Steering wheel145 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
McCormick Intl F110 Height
F ROPS218 cmReference
GE ROPS215 cmReference
XL ROPS228 cmReference
Cab225 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
