Tractor · 2015Unverified

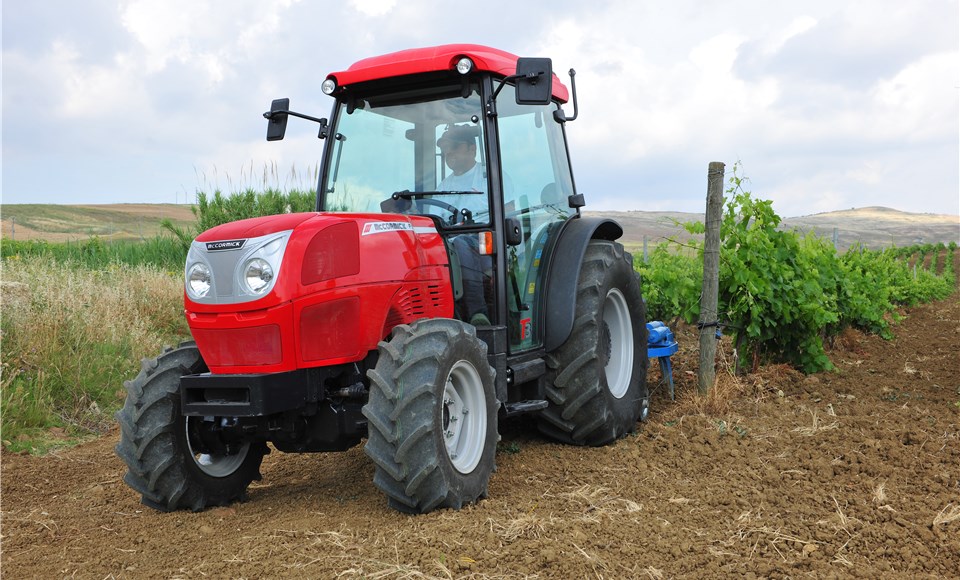

McCormick Intl F120
McCormick Intl F120 — F Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
5600 to 6316 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
F120FnarrowReference
F120GElow-profileReference
F120XLfull sizeReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine82.2 kWReference
Perkins 1104D-44TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power82.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque410.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
15-speed synchro shuttleReference
30-speed power shuttleReference
TransmissionSpeed FourReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
Clutch304.8mm mechanical dry discReference
TransmissionSpeed FiveReference
Gears15 forward and reverseReference
TransmissionPowerFiveReference
Typepower shuttleReference
Gears30 forward and reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)69.0 kWReference
Valves2Reference
Pump flow82.1 lpmReference
Pump flow100.7 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Clutchhydraulic wet discReference
Rear PTO Type540/750 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase213 cmReference
Weight5600 to 6316 poundsReference
Front tire7.50-16Reference
Rear tire13.6R28Reference
F 2WD Ag front7.50-16Reference
F 4WD Ag front7.50-18Reference
GE Ag front260/70R16Reference
XL Ag front280R70R18Reference
F Ag rear13.6R28Reference
GE Ag rear14.9LR20Reference
XL Ag rear14.9R24Reference
Length400 cmReference
F Width143 cmReference
GE Width141 cmReference
XL Width155 cmReference
F Ground clearance22 cmReference
GE Ground clearance19 cmReference
XL Ground clearance23 cmReference
F 2WD2615 kgReference
F 4WD2844 kgReference
GE 4WD2540 kgReference
XL 4WD2864 kgReference
F Steering wheel144 cmReference
GE Steering wheel131 cmReference
XL Steering wheel144 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
McCormick Intl F120 Height
F ROPS231 cmReference
GE ROPS215 cmReference
XL ROPS231 cmReference
Cab226 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
