Tractor · 2002Unverified

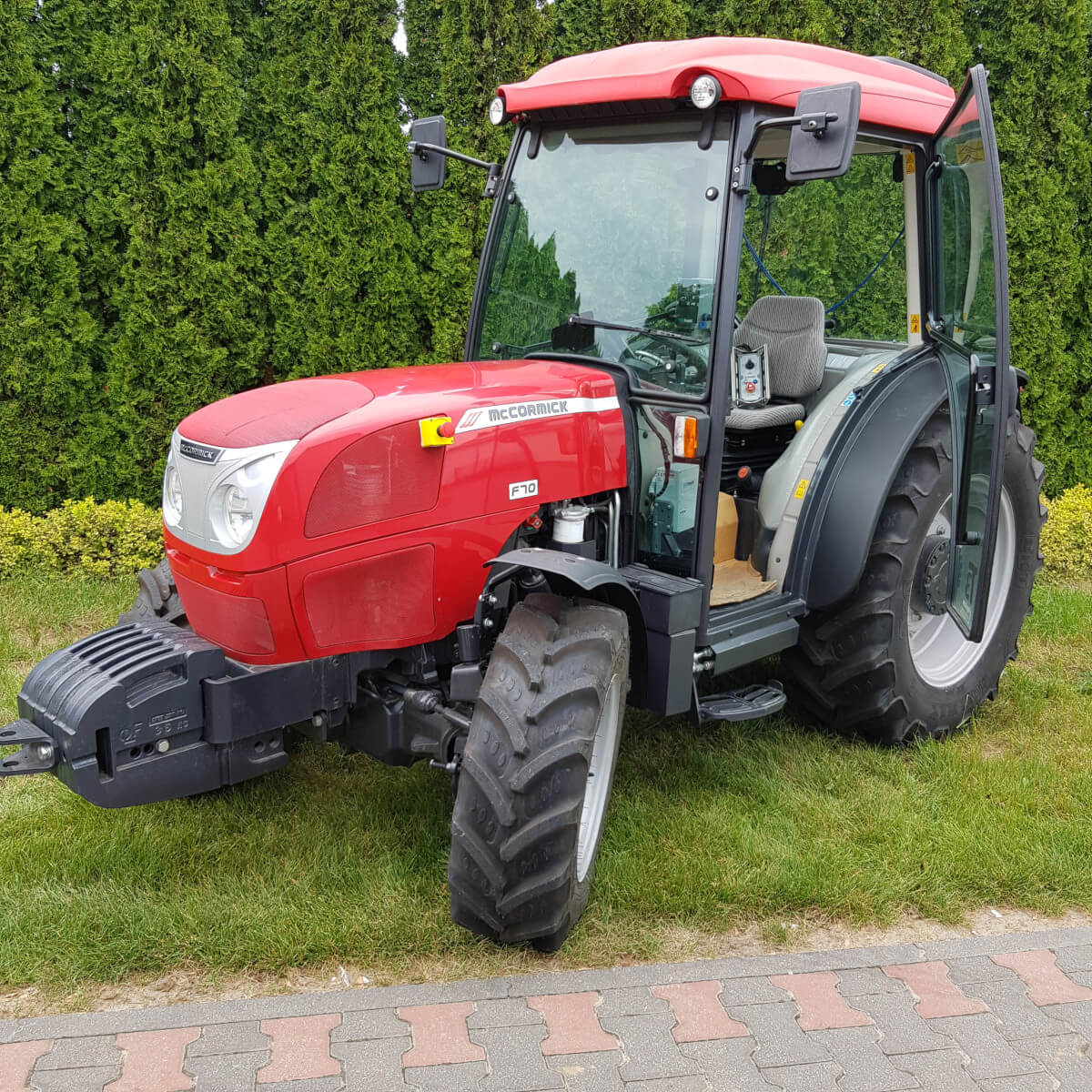

McCormick Intl F70

Name: McCormick Intl F70
Brand: McCormick Intl

McCormick Intl F70 — Model year 2002-20032004-2008 · 67 hp. Reference specifications; pending source verification.

The McCormick Intl F70 is a tractor with a rated output of 67 hp, positioning it in the middle of its class in terms of power. It was manufactured from 2002 to 2008. This tractor features a 4-cylinder diesel liquid-cooled engine, coupled with a 12-speed gearbox, and four-wheel drive. The McCormick Intl F70 is suitable for use on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

67 hp

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

67 hp

Transmissions

12-speed sync shuttle

Production years

2002-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

Perkins 4.0L 4-cyl dieselReference

Fuel tank53.0 LReference

XL Fuel tank62.1 LReference

Engine50.0 kWReference

PerkinsReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Power50.0 kWReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

Torque263.1 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Oil change250 hReference

Transmission

12-speed sync shuttleReference

24-speed sync shuttleReference

Typesync shuttleReference

Gears12 forward and reverseReference

Clutchcerametallic dry discReference

Gears24 forward and 12 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure180.0 barReference

Valves2Reference

Valves3 (XL version)Reference

Pump flow44.3 lpmReference

Pump flow46.9 lpmReference

Steering flow17.4 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift2600 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/750 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1944Reference

Engine RPM750@1375Reference

Engine RPM1000@1916Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
