Tractor · 2004Unverified

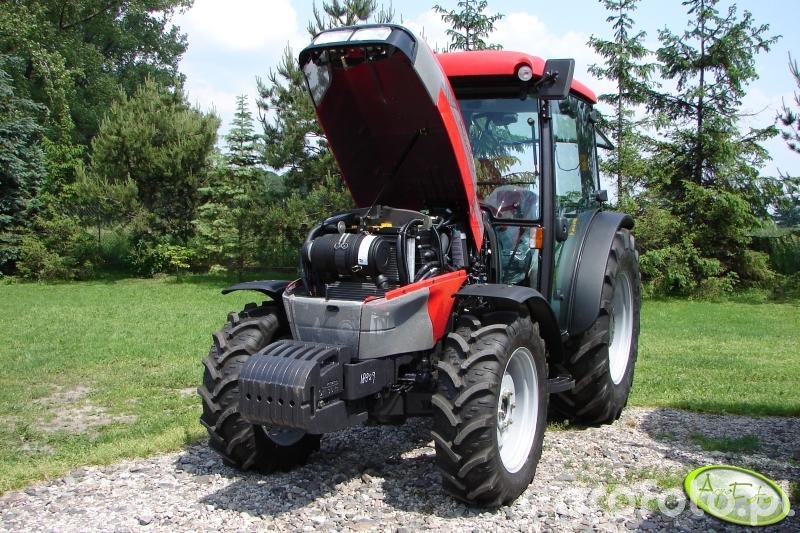

McCormick Intl F75

Name: McCormick Intl F75
Brand: McCormick Intl

McCormick Intl F75 — F Series · 63 hp. Reference specifications; pending source verification.

The McCormick Intl F75 is a tractor with a rated power of 63 hp, making it a relatively compact option in its class. Manufactured from 2004 to 2008, this model features a 4-cylinder diesel liquid-cooled engine and is equipped with a powershift transmission driving through four-wheel drive. The listed weight of the tractor is 5766 to 6714 pounds, and it is designed for use on plots of land up to 200 acres in size.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

63 hp

Weight

5766 to 6714 pounds

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

63 hp

Transmissions

15-speed mechanical shuttle

Production years

2004-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post mid-mount folding ROPS. Cab optional.Reference

Variants

F75standard narrowReference

F75XLwide deluxeReference

Engine

Perkins 4.4L 4-cyl dieselReference

F/GE Fuel tank48.1 LReference

F/GE Fuel tank73.1 LReference

XL Fuel tank65.1 LReference

XL Fuel tank90.1 LReference

Engine50.7 kWReference

Perkins 1104C-44Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIReference

Power50.7 kWReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

Torque272.6 NmReference

StarterelectricReference

Starter volts12Reference

Transmission

15-speed mechanical shuttleReference

15-speed power shuttleReference

30-speed two-speed power shiftReference

Typemechanical shuttleReference

Gears15 forward and reverseReference

Clutch279mm mechanical dry discReference

Five gears in three ranges with mechanical shuttle. Also available with creeper range, providing 20 speeds.Reference

Typepower shuttleReference

Clutchwet discReference

Five gears in three ranges with power shuttle. Also available with creeper range, providing 20 speeds.Reference

Typetwo-speed power shiftReference

Gears30 forward and reverseReference

Five gears in three ranges with power shuttle and two-speed power shift in each gear. Also available with creeper range, providing 40 speeds.Reference

PTO & Hydraulics

PTO (claimed)47.0 kWReference

Typeopen centerReference

F/GE Valves2Reference

XL Valves3Reference

Pump flow52.2 lpmReference

Total flow82.1 lpmReference

Steering flow29.9 lpmReference

Rear TypeIIReference

Rear lift2600 kgReference

Rear PTOindependentReference

Clutchdry discReference

Clutchwet discReference

Rear PTO Type540/750Reference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase217 cmReference

4WD Wheelbase213 cmReference

Weight5766 to 6714 poundsReference

Front tire7.50-16Reference

Rear tire14.9R24Reference

Ag front7.50-16 (2WD)Reference

Ag front280/70R20 (4WD)Reference

Ag rear14.9R24Reference

Length370 cmReference

Width124 cmReference

Height (ROPS)228 cmReference

Height (Folded ROPS)139 cmReference

Height (cab)220 cmReference

Ground clearance35 cmReference

2WD ROPS2615 kgReference

4WD ROPS2845 kgReference

2WD Cab2815 kgReference

4WD Cab3045 kgReference

Electrical

Charging systemalternatorReference

Charging amps85Reference

Speeds

With 16.9R24 rear tires. Reverse speeds are 1% faster than forward.Reference

With 14.9R28 rear tires. Reverse speeds are 3% slower than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
