Tractor · 2002Unverified

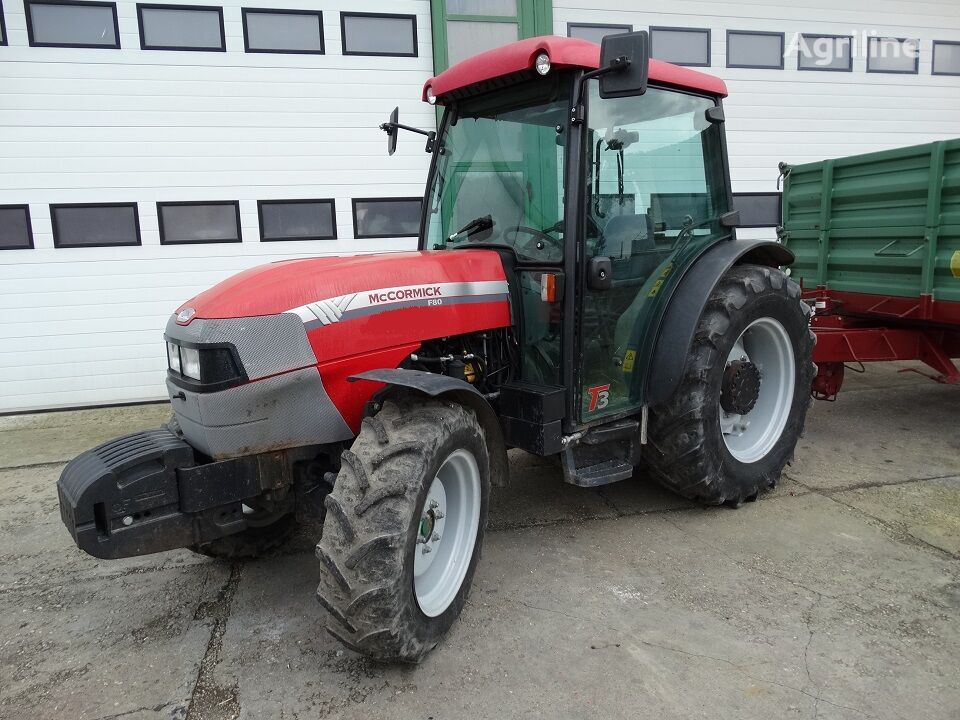

McCormick Intl F80
McCormick Intl F80 — Model year 2002-20032004-20082009-20142015-2025 · 69 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
69 hp
Weight
5765 to 6603 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Perkins 4.2L 4-cyl dieselReference
Fuel tank53.0 LReference
XL Fuel tank62.1 LReference
Engine58.2 kWReference
PerkinsReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke103 x 127 mmReference
Power58.2 kWReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Torque284.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil change250 hReference
Transmission
12-speed sync shuttleReference
24-speed sync shuttleReference
Typesync shuttleReference
Gears12 forward and reverseReference
Clutchcerametallic dry discReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
PTO (claimed)51.1 kWReference
Typeopen centerReference
Pressure180.0 barReference
Valves2Reference
Valves3 (XL version)Reference
Pump flow44.3 lpmReference
Pump flow46.9 lpmReference
Steering flow17.4 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift2600 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/750 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1944Reference
Engine RPM750@1375Reference
Engine RPM1000@1916Reference
Dimensions
Wheelbase215 cmReference
Wheelbase213 cmReference
Weight5765 to 6603 poundsReference
Length490 cmReference
Width132 cmReference
Width142 cmReference
Width147 cmReference
Ground clearance25 cmReference
Ground clearance22 cmReference
2615 kgReference
2844 kgReference
2995 kgReference
Steering wheel144 cmReference
Steering wheel129 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
McCormick Intl F80 Height
ROPS218 cmReference
ROPS215 cmReference
ROPS228 cmReference
Cab223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
