Tractor · 2004Unverified

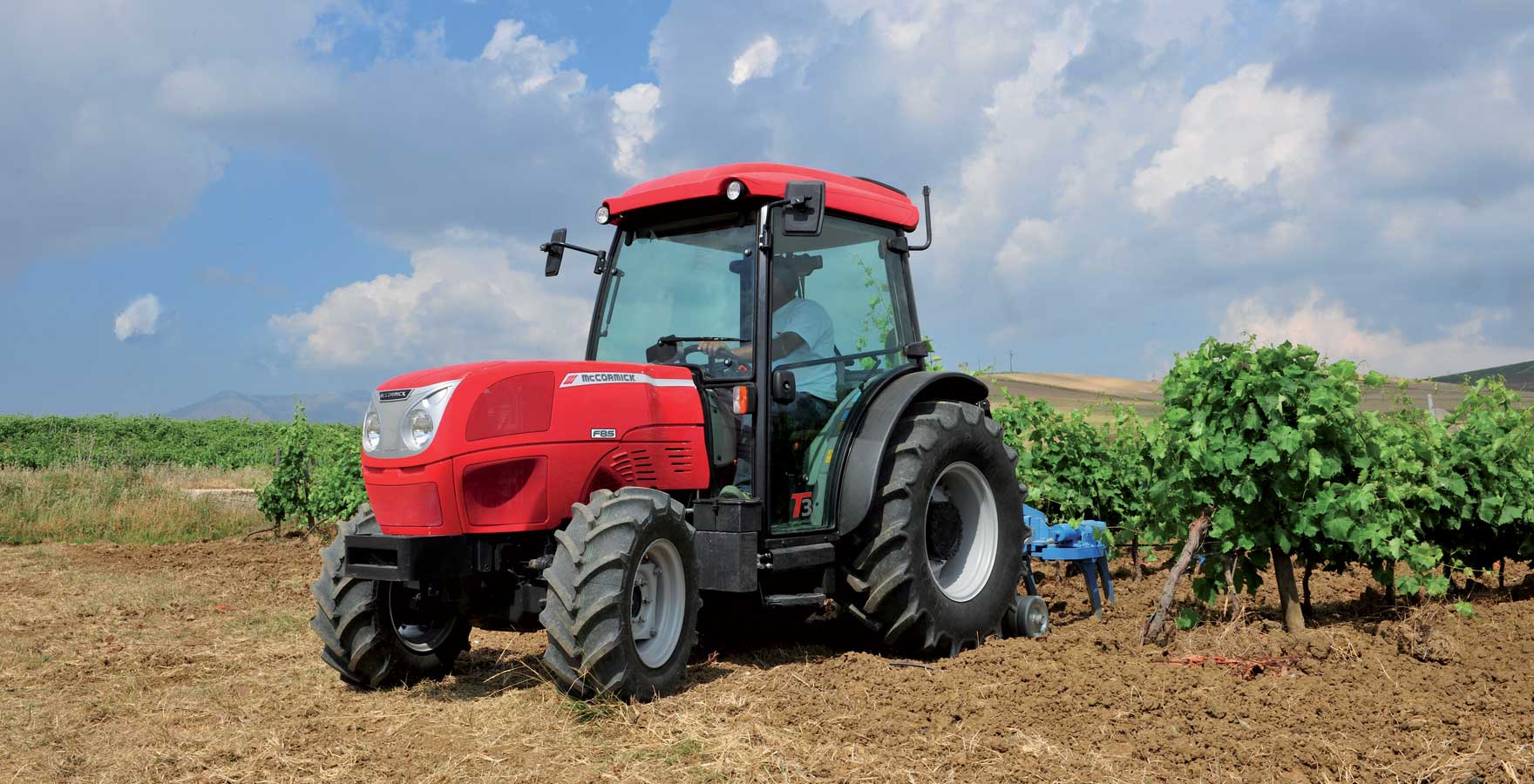

McCormick Intl F85
McCormick Intl F85 — Model year 2004-20082009-20142015-2025 · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Weight
5766 to 6714 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post mid-mount folding ROPS. Cab optional.Reference
Variants
F85standard narrowReference
F85XLwide deluxeReference
Engine
Perkins 4.4L 4-cyl dieselReference
F/GE Fuel tank48.1 LReference
F/GE Fuel tank73.1 LReference
XL Fuel tank65.1 LReference
XL Fuel tank90.1 LReference
Engine61.1 kWReference
Perkins 1104C-44Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIReference
Power61.1 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque292.1 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
15-speed mechanical shuttleReference
15-speed power shuttleReference
30-speed two-speed power shiftReference
Typemechanical shuttleReference
Gears15 forward and reverseReference
Clutch279mm mechanical dry discReference
Five gears in three ranges with mechanical shuttle. Also available with creeper range, providing 20 speeds.Reference
Typepower shuttleReference
Clutchwet discReference
Five gears in three ranges with power shuttle. Also available with creeper range, providing 20 speeds.Reference
Typetwo-speed power shiftReference
Gears30 forward and reverseReference
Five gears in three ranges with power shuttle and two-speed power shift in each gear. Also available with creeper range, providing 40 speeds.Reference
PTO & Hydraulics
PTO (claimed)56.3 kWReference
Typeopen centerReference
F/GE Valves2Reference
XL Valves3Reference
Pump flow52.2 lpmReference
Total flow82.1 lpmReference
Steering flow29.9 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
Clutchdry discReference
Clutchwet discReference
Rear PTO Type540/750Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase213 cmReference
Weight5766 to 6714 poundsReference
Front tire7.50-16Reference
Rear tire14.9R24Reference
Ag front7.50-16 (2WD)Reference
Ag front280/70R20 (4WD)Reference
Ag rear14.9R24Reference
Length370 cmReference
Width124 cmReference
Height (ROPS)228 cmReference
Height (Folded ROPS)139 cmReference
Height (cab)220 cmReference
Ground clearance35 cmReference
2WD ROPS2615 kgReference
4WD ROPS2845 kgReference
2WD Cab2815 kgReference
4WD Cab3045 kgReference
Electrical
Charging systemalternatorReference
Charging amps85Reference
Speeds
With 16.9R24 rear tires. Reverse speeds are 1% faster than forward.Reference
With 14.9R28 rear tires. Reverse speeds are 3% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
