Tractor · 2010Unverified

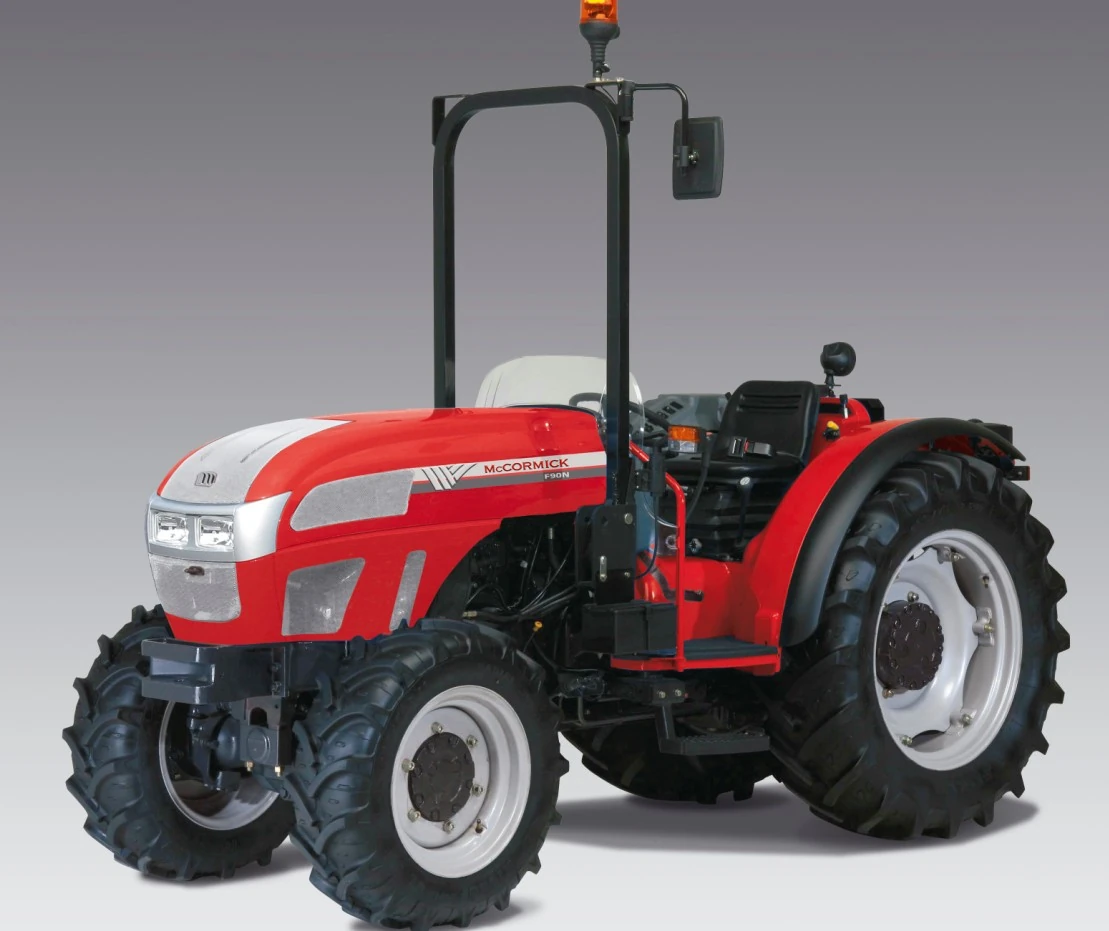

McCormick Intl F90N
McCormick Intl F90N — F Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
5655 to 5677 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
F90FnarrowReference
F90GElow-profileReference
F90XLfull sizeReference
F90Nultra-narrowReference
F90VvineyardReference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine61.9 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIIReference
Power61.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque352.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speed synchro shuttleReference
TransmissionSpeed FourReference
Typesynchro shuttleReference
Gears24 forward and 12 reverseReference
Clutch279.4mm mechanical dry discReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Valves3 or 4Reference
Pump flow82.1 lpmReference
Rear TypeIIReference
Rear lift2600 kgReference
Rear PTOindependentReference
ClutchmechanicalReference
Rear PTO Type540/750/groundReference
Dimensions
2WD Wheelbase210 cmReference
4WD Wheelbase213 cmReference
Weight5655 to 5677 poundsReference
Length393 cmReference
Width114 cmReference
Width137 cmReference
Height (ROPS)228 cmReference
Height (cab)236 cmReference
2WD Weight2565 kgReference
4WD Weight2575 kgReference
2WD Ground clearance41 cmReference
4WD Ground clearance33 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
